Left Hand Truth 15.31 9-1/2" Straight Arm Casement Operator

Truth® 15.31 Traditional 9-1/2" Straight Arm Casement Operator (Discontinued Style)

The Truth® 15.31 Traditional Straight Arm Casement Operator is designed for use with wood windows, offering reliable operation and a classic look. This "old style" operator features a 9-1/2" (241.3mm) straight arm, measured from the center of the operator to the center of the button. The arm is constructed without any offset for straightforward, consistent performance.

This model utilizes a nylon roller with a diameter of 9/16" (14.3mm) and a thickness of 3/16" (4.8mm), ensuring smooth movement along the window track. It is specifically designed for left-handed window applications, as shown in the product photo. Standard finishes include White, Gold, and Medium Bronze, allowing for coordination with popular hardware and window colors.

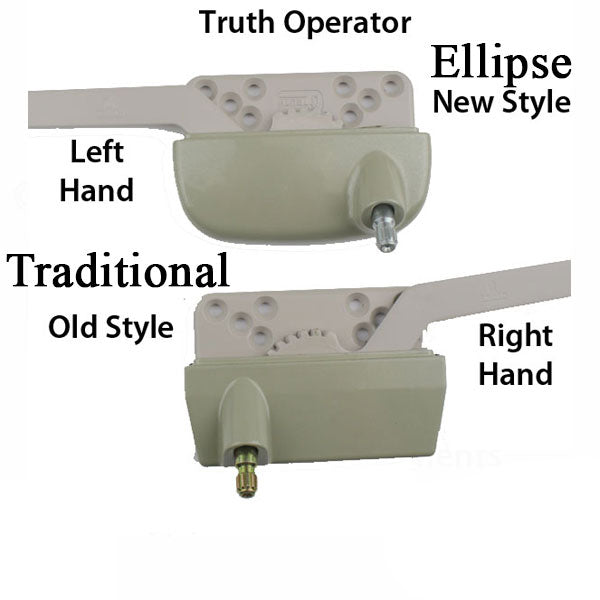

Note: This style has been discontinued and is limited to existing inventory. Truth® has updated this product with the newer Ellipse style operator, which features a contoured design for a softer, modern appearance.

Technical Information

• Arm Length: 9-1/2" (241.3mm)
• Arm Type: Straight, No Offset
• Roller Material: Nylon
• Roller Size: 9/16" (14.3mm) diameter, 3/16" (4.8mm) thick
• Handing: Left Hand (as shown)
• Standard Finishes: White, Gold, Medium Bronze

Notes

• This operator is designed primarily for wood window systems.
• Style has been discontinued by Truth® and is only available while current inventory lasts.
• See product images for updated Ellipse style information.

Replaces / Replaced by

• Can be replaced with the current Truth® Ellipse Style Straight Arm Casement Operator.

This operator is sold individually and is limited to stock on hand. Please measure your existing hardware carefully to ensure a correct fit before ordering.
