2-Hook Sliding Door Lock, 11-3/4" Faceplate – No Slam Pin, Beige

This is an internal latch, two-point double hook sliding door mortise lock designed for older wood or vinyl patio doors. The lock features a flat beige faceplate with an overall faceplate length of 11-3/4" (298.5mm), making it suitable for replacing many discontinued hardware models in legacy sliding doors.

This specific style does not include a slam pin. If your application requires an anti-slam pin, please refer to the updated model (see 15187) which has been designed to replace older versions lacking this safety feature. This lock remains available only while current inventory lasts, as it is discontinued by the manufacturer.

Technical Information

• Faceplate Length: 11-3/4" (298.5mm)
• Faceplate Width: 3/4" (20mm)
• Faceplate Thickness: 1/8" (3.2mm)
• Faceplate Screw Holes: 11" (279.4mm) center-to-center
• Backset: 7/8" (22.2mm)
• Mortise Lock Depth: 1-1/4" (31.8mm)
• Faceplate Type: Flat
• Faceplate Color: Beige
• Handle Screw Hole Pattern: 3-15/16" (100mm)
• Patent Numbers: 6,264,252 (Lock); 5,820,170 (Sash Control)

Notes

• This lock is an older style, no longer in production—order only while inventory remains.
• Compatible with wood and vinyl sliding doors.

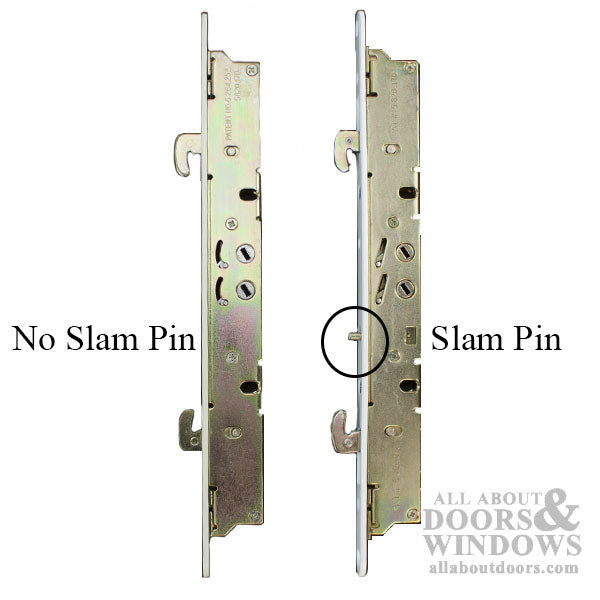

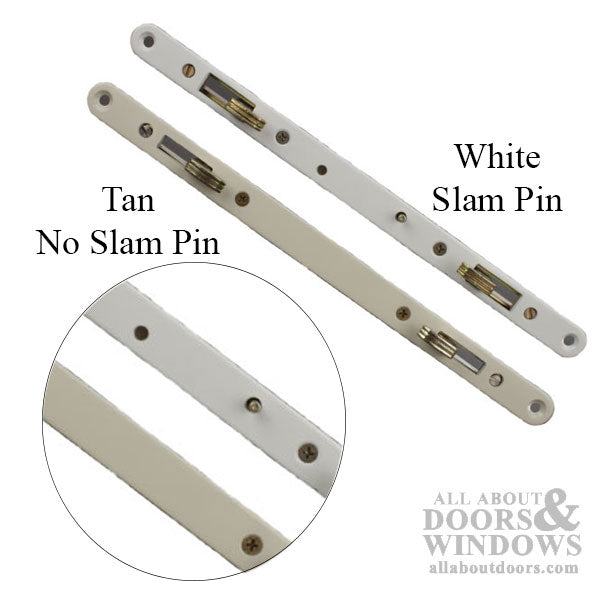

• See additional images for visual clarification on the absence of a slam pin.

Replaces / Replaced by

• Replaced by model 15187 (includes anti-slam pin).

Locks are sold individually. Please verify all measurements—including faceplate length, width, screw hole distances, and handle screw pattern—against your existing hardware to ensure correct fit before ordering. Double-check measurements on your current hardware to ensure an accurate replacement.
