2-Point Double Hook Sliding Door Mortise Lock, 11-3/4" Face with Anti-Slam Pin

2-Point Double Hook Sliding Door Lock, 11-3/4" Face with Pin

This 2-point double hook sliding door mortise lock is designed for wood and vinyl sliding patio doors using a robust internal latch mechanism. The included anti-slam pin offers improved safety and replaces older mortise lock models that did not have this feature.

This lock is commonly used by brands such as Sash Control®, Marvin®, Weather Shield®, and others, providing a reliable replacement solution for many existing sliding patio doors. It is suitable for both repairs and upgrades where added security or anti-slam protection is desired.

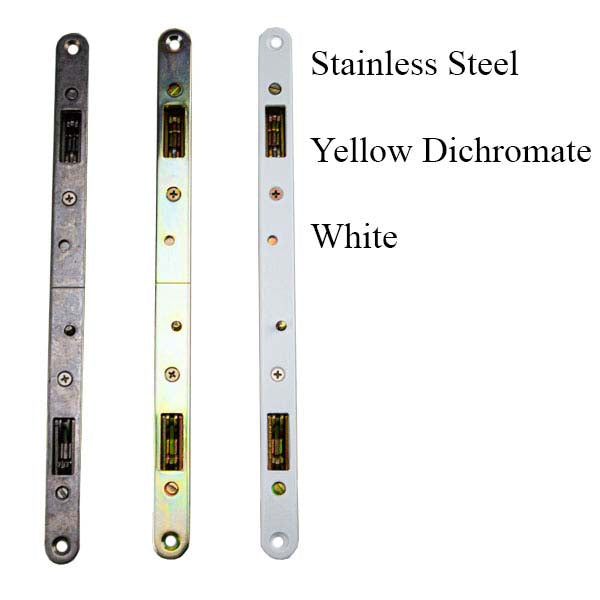

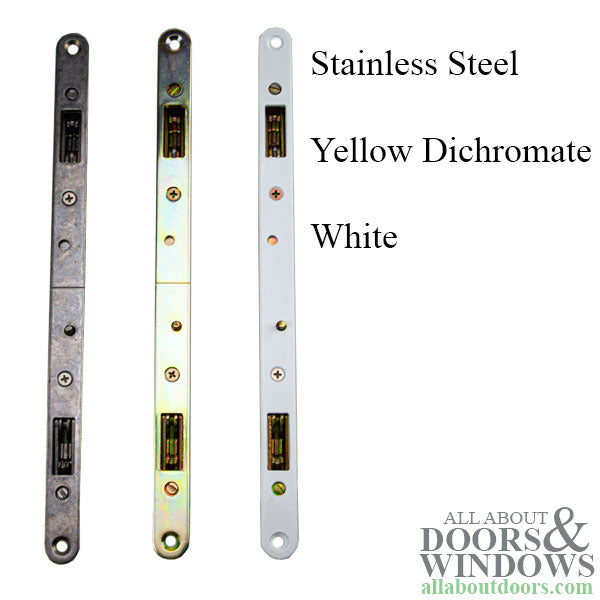

The mortise lock features a flat faceplate available in three finishes: stainless steel, yellow dichromate, and white. Its design ensures compatibility with most wood and vinyl sliding doors that originally used this style of two-point lock.

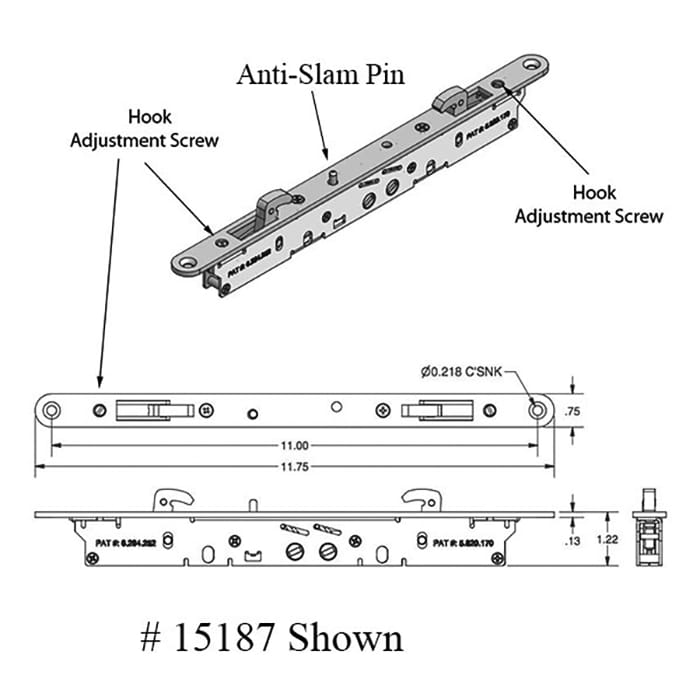

Technical Information

• Backset: 1" (25.4 mm)
• Face plate type: Flat
• Face plate width: 3/4" (19.1 mm)
• Face plate thickness: 1/8" (3.2 mm)
• Face plate length: 11-3/4" (298.5 mm)

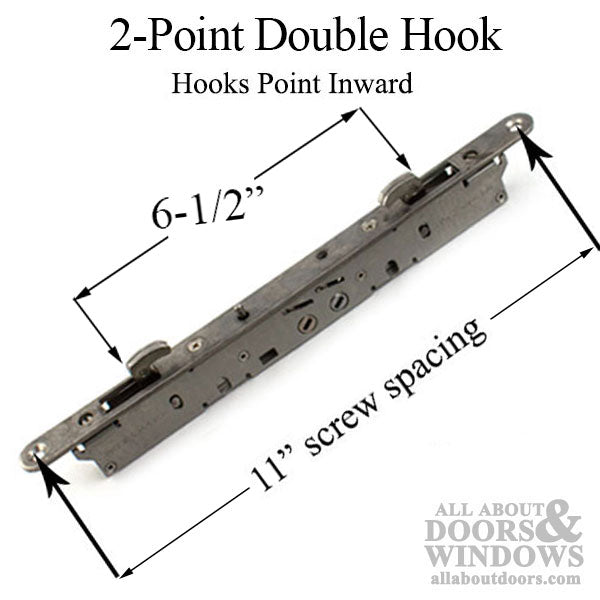

• Faceplate screw holes spacing: 11" (279.4 mm)
• Mortise lock depth: 1-1/4" (31.8 mm)

Notes

• Available finishes: Stainless Steel, Yellow Dichromate, White.
• Suitable for wood and vinyl sliding doors previously equipped with Gemini or similar brands.

Replaces / Replaced by

• Replaces older Gemini and similar mortise lock models without anti-slam pin.

Be sure to carefully measure your existing lock and door hardware to ensure the correct fit before ordering.
