16mm Multipoint Shootbolt Lock 45/92, Truth Sentry

16mm Active Tongue / Shootbolt Multipoint Lock, 45/92, Truth Sentry

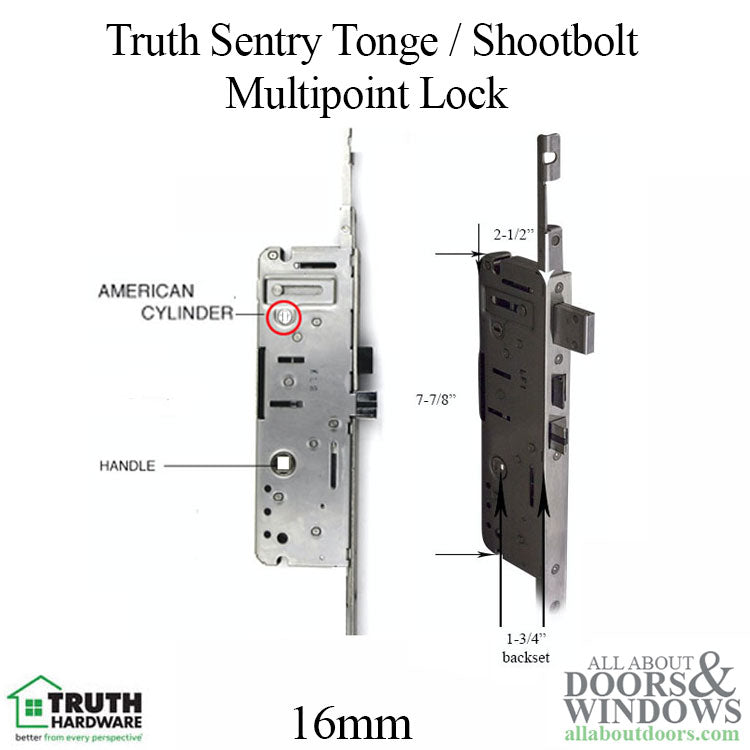

The Truth® Sentry Active Multipoint Lock is engineered for use in residential doors, offering enhanced security and dependable operation. This model features a 5/8" (16mm) faceplate and a 1-3/4" (45mm) backset, designed to fit doors that require a robust multipoint locking system with a shootbolt and tongue action positioned at 20" (509.5mm) from the base. With a reversible latch system, this lock accommodates both left and right-handed installations, making it highly versatile for replacement or new setups.

Operation is straightforward: lift the handle to extend the hooks, rotate the thumbturn or use a key to throw the deadbolt, and retract the deadbolt with either the key or thumb turn as needed. A springlatch mechanism allows the handing to be changed by pulling out and spinning the latch; the mis-handing device can be engaged with a simple push, and the latch flips to the other side for quick adjustments.

Before ordering, carefully measure your existing hardware and verify measurements and configuration for proper fit. This is key to ensuring compatibility and avoiding returns. Always double-check all dimensions before purchase.

Technical Information

• Faceplate Width: 5/8" (16mm)
• Backset: 1-3/4" (45mm)
• Handle Height: 36" (914.4mm)
• Bottom Tongue Location: 20" (509.5mm)
• Tongue Projection: 3/4" (20mm)
• Overall Length: 41.3" (1049mm)
• Key Position: Above Lever
• Handed: No, Reversible by pulling latch out and rotating
• Operation: Lift lever to extend hooks; rotate thumbturn or use key to secure deadbolt

Notes

• Truth® Sentry locks are known for their reliability in both new construction and replacement applications.
• The lock is reversible for both right- and left-handed doors, requiring no additional parts.
• Be sure to confirm tongue location, projection, and handle height for the best fit.
• Compatible with doors that require a multipoint locking system.
• For more detailed operation guidance, visit the manufacturer's page.

Sold individually. Measure your existing lock and door carefully before ordering to ensure compatibility and proper operation.
