4-Bar Window Hinges and Tracks | Stainless Steel Four Bar Hinges for Casement & Awning Windows

4-bar window hinges and tracks allow windows to open smoothly while providing secure support for the sash. These components are essential for casement and awning windows, enabling reliable, controlled movement and enhanced ventilation. Perfect for projects requiring durable replacement parts or new installations using four bar hinges.
Showing 8 of 8 products
Filter Products

Filter Products

Showing 8 of 8 products

Availability
Clear
Price

The highest price is

$
$
More filters
Clear
Clear

Showing 1 -8 of 8 items

Four bar window hinges and tracks are engineered for precise control and stability when opening and closing casement or awning windows. Often used in both residential and commercial settings, these stainless steel hinges enable the window sash to project outward, preventing interference between the sash and frame while delivering smooth operation and lasting durability. Four bar hinges are non-handed, so they fit either left- or right-opening windows, making them an adaptable solution for a wide range of window designs.

Key Features and Specifications

  • Available in standard and heavy-duty versions for projects ranging from light residential windows (up to 40 lbs.) to heavy commercial applications (up to 200 lbs.).
  • Corrosion-resistant stainless steel construction ensures long service life, even in harsh conditions.
  • Integrated stops on many models help control the opening angle, improving safety and usability.
  • Friction adjustment screw in the sliding shoe lets users fine-tune sash movement to match preferences and window requirements.
  • Compatible with a variety of window operators, including "Dyad" (two-link) mechanisms.

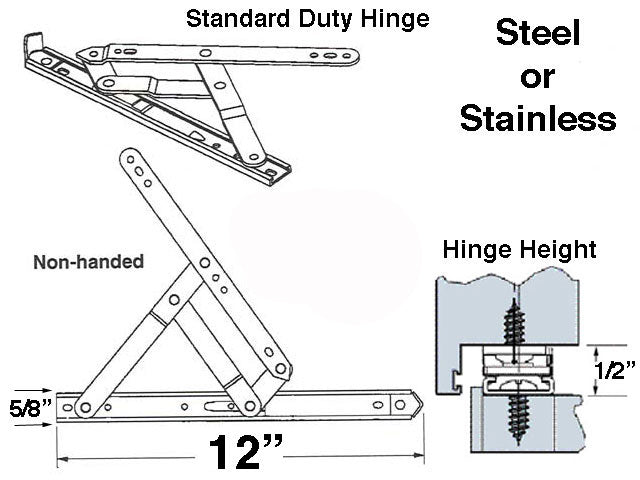

  • Non-handed designs simplify ordering and installation for both left- and right-hinged windows.

Typical Applications and Replacement Tips

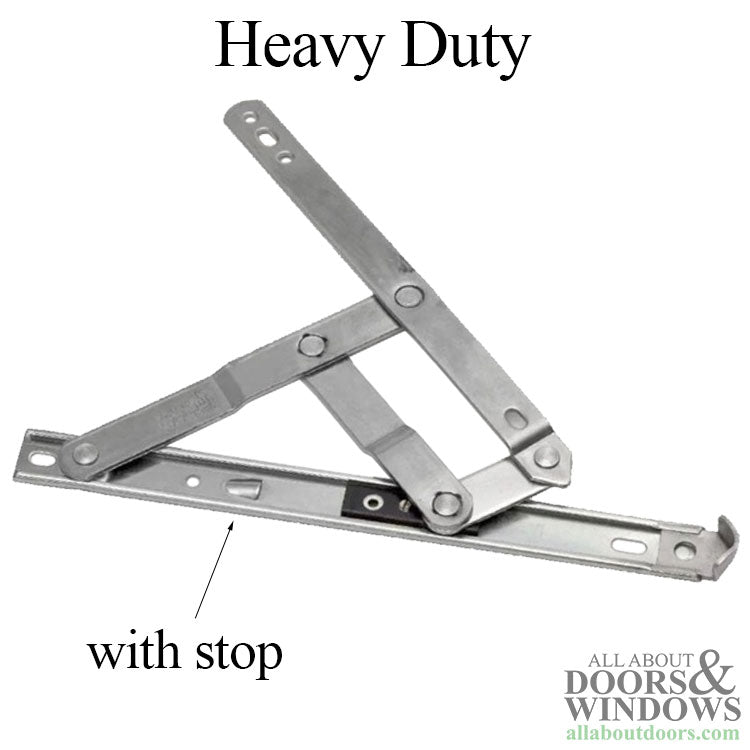

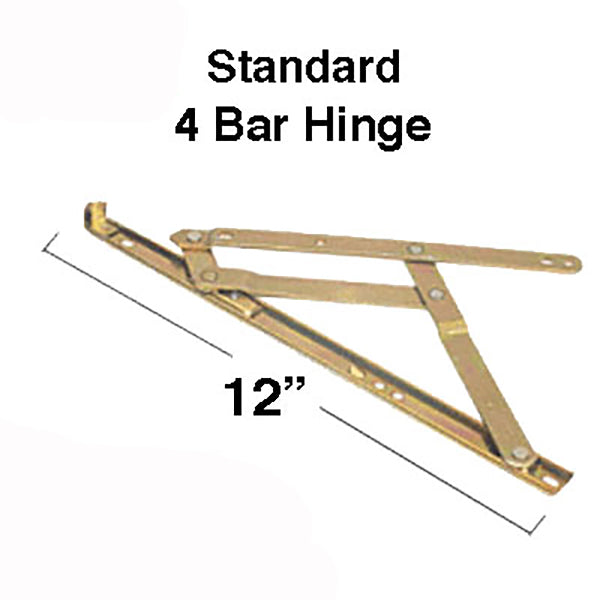

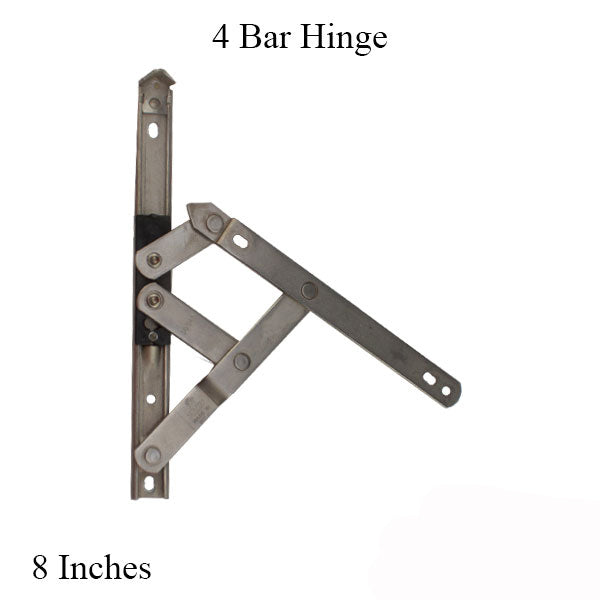

Four bar hinges and tracks are commonly found on casement windows, awning windows, and projected vents where controlled outward movement is required. They are an ideal replacement part for windows from leading manufacturers such as AmesburyTruth, including their Anderberg 201 and 301 series. Ensure you select the correct track length and duty rating for your window's size and weight. For example, a standard 8-inch track fits many smaller residential windows, while a 20-inch heavy-duty track supports larger, heavier sashes.

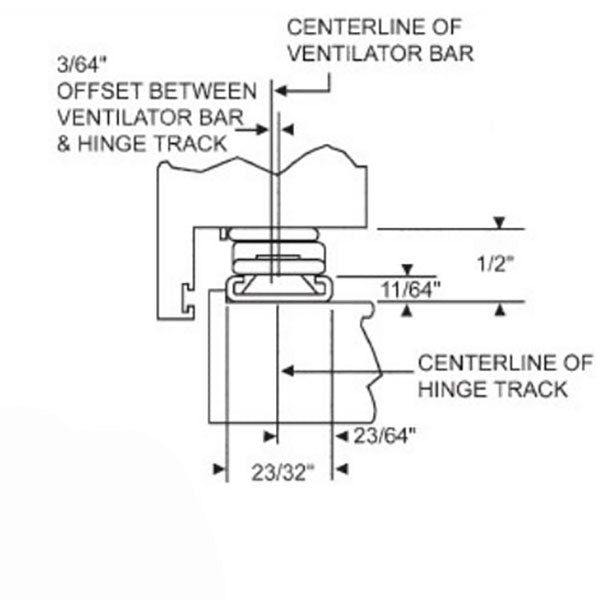

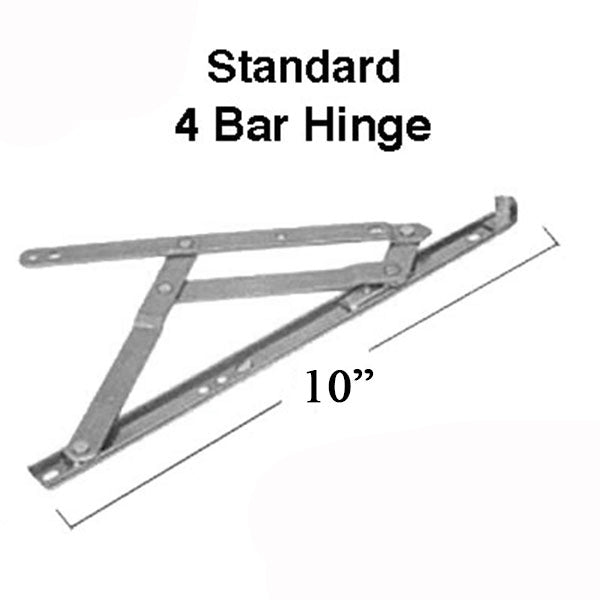

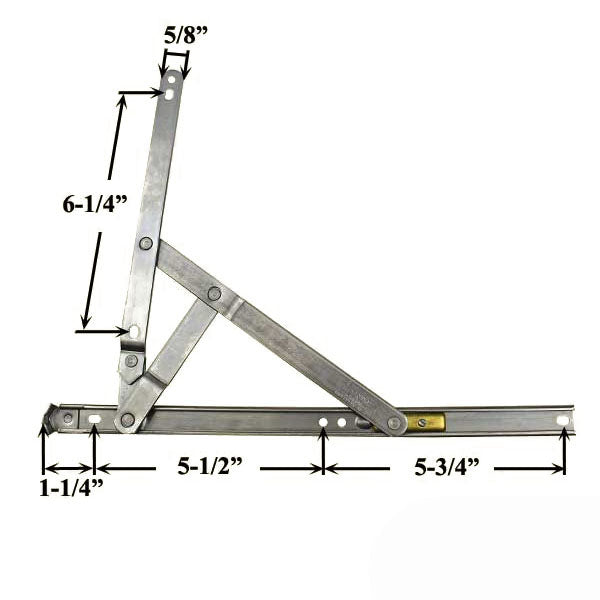

Installation generally requires only basic tools. Most four bar hinges install with #10 pan head stainless steel screws (typically not included). Make sure to measure your existing hinge and track dimensions carefully before ordering. If your application calls for a hinge without a stop for maximum opening range, options such as the 10-inch track with no stop are available. For egress windows or special project needs, consider a 12-1/4-inch egress hinge for safe and code-compliant operation.

About AmesburyTruth and Genuine Parts

This collection features genuine four bar hinges from AmesburyTruth, a trusted leader in window hardware. As an authorized reseller, TruthParts provides only authentic replacement parts to ensure proper fit, function, and long-term reliability. Stainless steel offerings, like the 12-inch 34.55 series or 14-inch 34.20 series, are designed for demanding environments and compatible with many original equipment installations.

Frequently Asked Questions

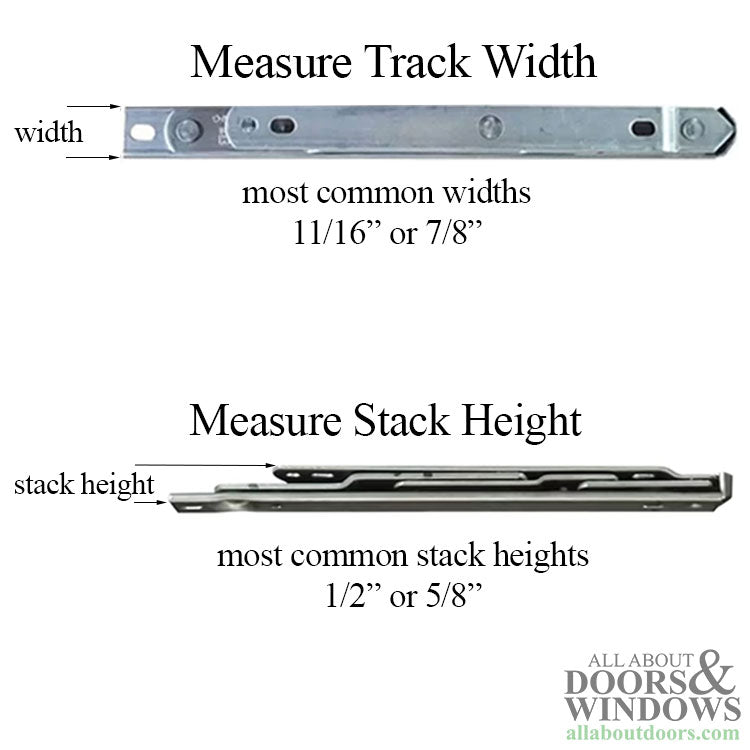

  • How do I choose the correct four bar hinge? Measure your old track length and check your window weight. Standard duty hinges are suitable for lighter windows, while heavy-duty models are used for large or commercial sashes.
  • Are these hinges suitable for coastal or humid environments? Yes, stainless steel construction provides excellent corrosion resistance, making these hinges ideal for coastal or high-moisture locations.
  • Can I install these hinges myself? Installation is straightforward with basic tools. Always follow manufacturer instructions for the best performance and safety.
  • Do I need a left or right hinge? Most four bar hinges in this collection are non-handed, so they fit both left and right-opening windows.
