Weather Shield 550104 9-1/2" Single Arm Operator RH

Weather Shield 9-1/2" Single Arm Casement Operator - Right Hand

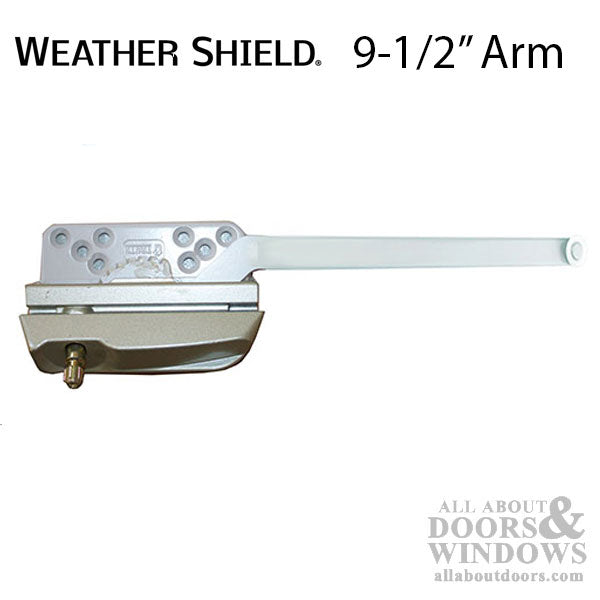

This is a Weather Shield right-hand single arm casement window operator with a 9-1/2" (241.3mm) arm. It uses a folding handle (sold separately) and features a solid metal housing rather than the newer plastic cover design.

This operator is discontinued, but replacement options are available. The current replacement is the new-style Ellipse operator, which uses a plastic cover that fits over the base unit.

Weather Shield casement operators like this one were originally offered in a range of finishes to match different window hardware packages, so please review the images and confirm the finish you need before ordering.

Technical Information

• Brand: Weather Shield (Truth Hardware)
• Type: Single Arm Casement Window Operator

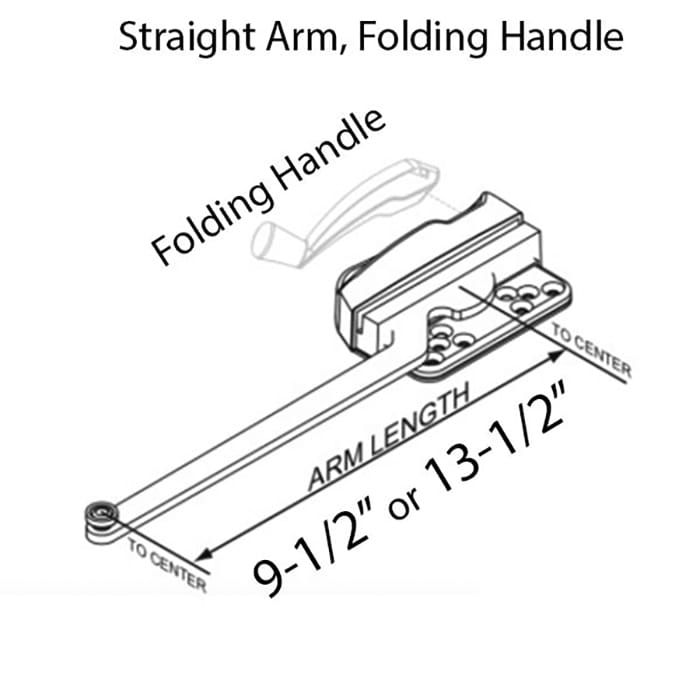

• Arm Length: 9-1/2" (241.3mm)
• Handing: Right Hand
• Handle: Uses a folding handle (not included)
• Housing: Solid metal (older style)
• Original SKU: 550104

Notes

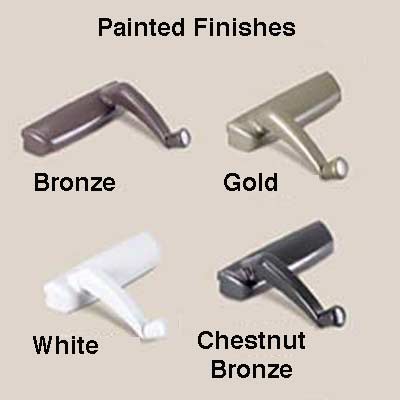

Original finish options included White, Goldtone, Adobe, Bright Brass, Oil Rubbed Bronze, Brushed Nickel, and Brushed Chrome. Replacement covers are currently stocked in White or Bronze; other colors may be available on request — please contact the office.

Replaces / Replaced By

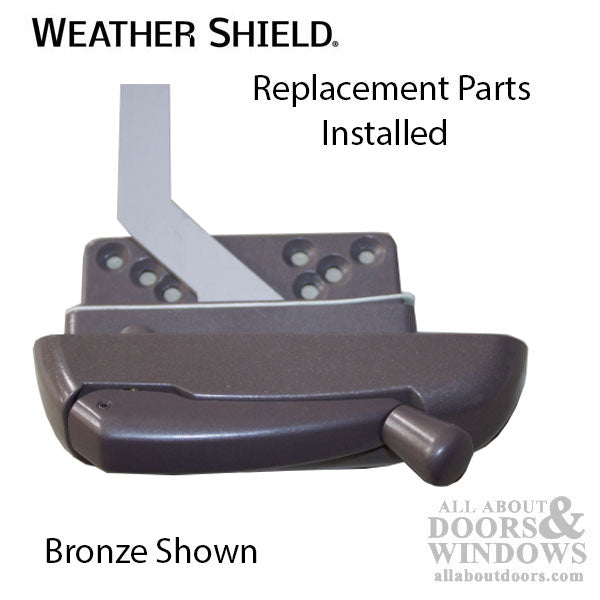

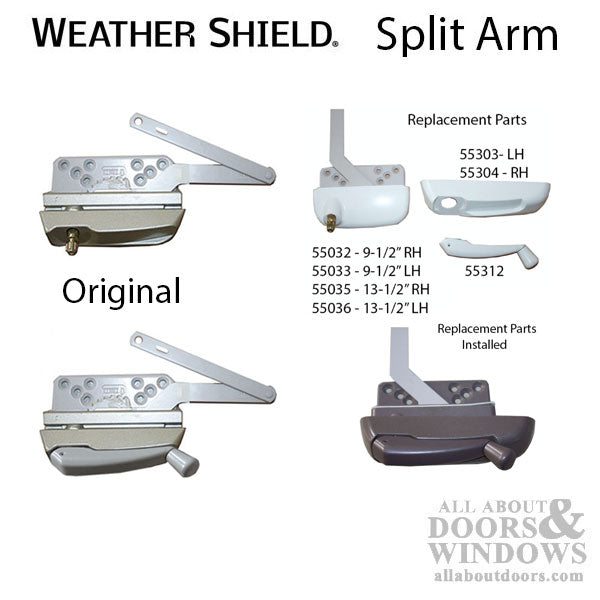

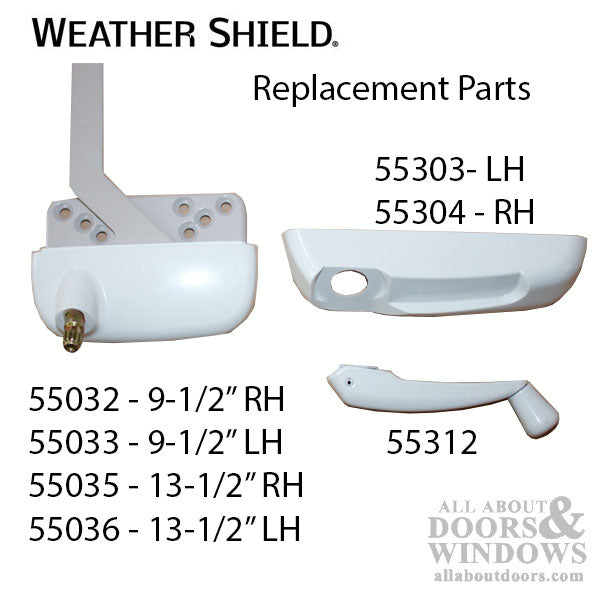

Replaced by the new-style Ellipse operator system. Related Weather Shield / Truth Hardware parts include:

• 55032 - 9-1/2" Right Hand Ellipse Operator
• 55033 - 9-1/2" Left Hand Ellipse Operator
• 55035 - 13-1/2" Left Hand Ellipse Operator
• 55036 - 13-1/2" Right Hand Ellipse Operator
• 55303 - Cover, Left Hand
• 55304 - Cover, Right Hand
• 55312 - Folding Handle

All parts are sold each. Inventory on this discontinued operator is limited to existing stock; once it is gone, the Ellipse replacement components listed above should be used. Please measure your existing operator and confirm the handing before ordering to ensure the correct fit.
