V200® Right Hand All In One Adjustable Hinge, New Style - Choose Finish
- Regular price
- $76.50
- Regular price
-
- Sale price
- $76.50
- Unit price
- per
Vendor : Amesbury Truth Hardware
Product Type : Hardware
Sku : W8801AR-E3
V200® Right Hand All In One Adjustable Hinge - PVD No Tarnish Finish
Used by Marvin®, Caradco® (Jeld-Wen) and others
Screws not included - easiest way to replace screws it take originals to a hardware store and match to your desired finish
NOTE:
The old style was redesigned to give more clearance on out swing applications.
The new style fits the same prep as the old style, but you can NOT mix and match the two styles.
Door Type: In swing or out swing doors

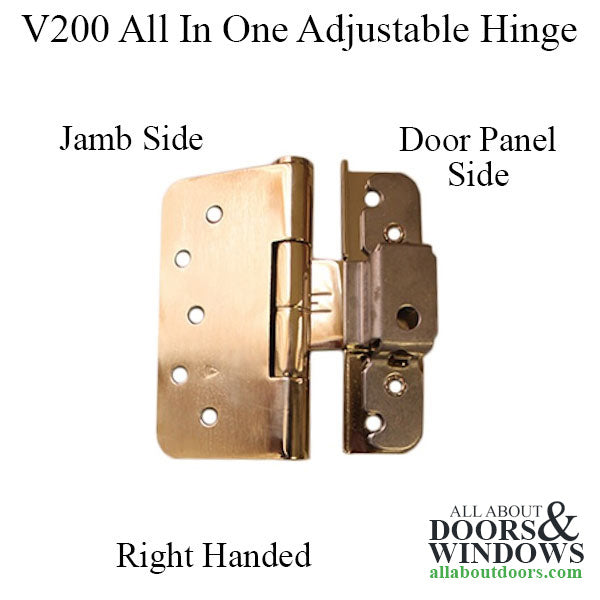

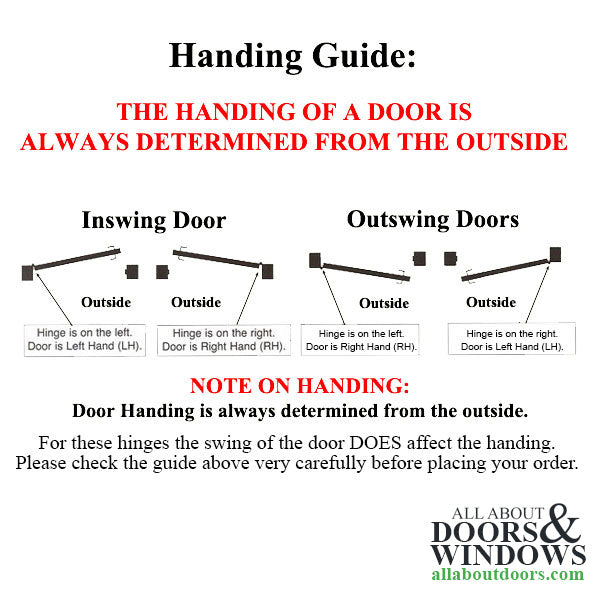

Door Handed: Yes - Left or Right hand as shown
Hinge Size: 4-1/4\'' x 4\''
Hinge Material: Solid Brass Leaf

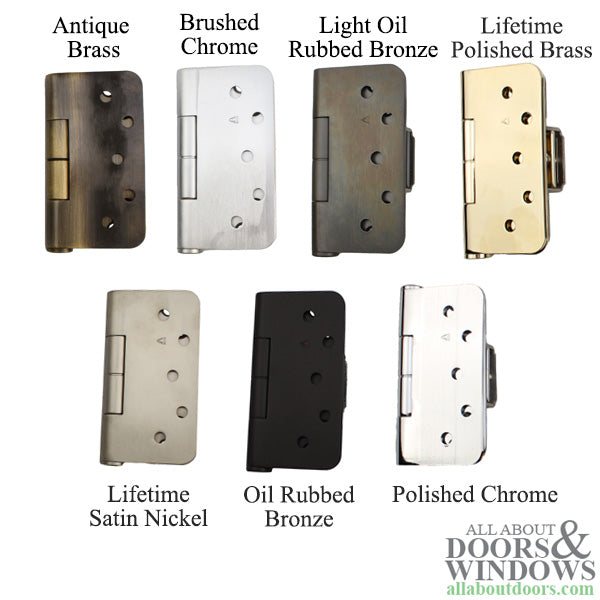

Finish Options:
PVD Satin Nickel (Tarnish Resistant)
PVD Polished Brass (Tarnish Resistant)
Oil Rubbed Bronze
Light Oil Rubbed Bronze (much lighter in color than oil rubbed bronze)
Polished Chrome
Antique Brass
This hinge will adjust both horizontally and vertically. (all in one design)
A Solid Brass extruded jamb wing allows for higher hinge carry capacity.
Hex head adjustment screws, not Phillips or slotted to provide secure tool engagement and prevent stripping during adjustment.
Stainless steel adjustment screws provide superior corrosion resistance.
An integrated hinge pin to provide security for out swing and in swing doors, and will not lift up during normal door operation.
Horizontally adjusts 1/16'' further than most hinges on the market.
Hinge system adjusts 1/4'' vertically and horizontally.
Extremely low adjustment force by vertically adjusting the door from below, not laterally like other hinge designs.
Provides an easy-to-see indicator line for accurate vertical adjustment.
A ''maintenance and noise-free'' operation, even after a million cycles, by incorporating an internal polymer bushing to eliminate any metal to metal contact
Exceeds BHMA-Grade 3 standards for wood, vinyl, aluminum and steel doors
Adjustment notes:

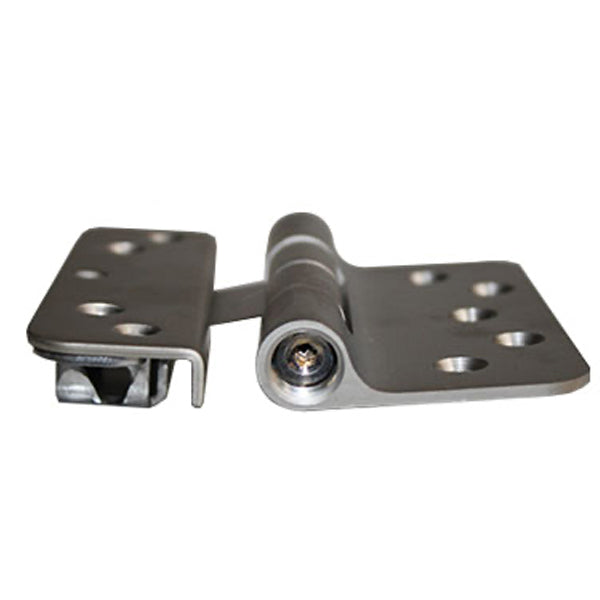

The V200 has both vertical and horizontal adjustment on EACH hinge. The vertical adjust on each hinge is found inside the bottom barrel. The horizontal adjust is found on the face of the door leaf.
The best way to adjust the hinges are to set the middle hinge vertical adjustment first to align the door reveal then ''snug up'' the other two hinges vertical adjustment screws so all three hinges are taking some portion of the door weight. This is one BIG advantage of this hinge design over a lot of other adjustable hinges. Once this is done the horizontal adjustment can be performed on the upper and lower hinge to finish the door alignment.
Used by Marvin®, Caradco® (Jeld-Wen) and others
Screws not included - easiest way to replace screws it take originals to a hardware store and match to your desired finish
NOTE:
The old style was redesigned to give more clearance on out swing applications.
The new style fits the same prep as the old style, but you can NOT mix and match the two styles.
Door Type: In swing or out swing doors
Door Handed: Yes - Left or Right hand as shown
Hinge Size: 4-1/4\'' x 4\''
Hinge Material: Solid Brass Leaf
Finish Options:
PVD Satin Nickel (Tarnish Resistant)
PVD Polished Brass (Tarnish Resistant)
Oil Rubbed Bronze
Light Oil Rubbed Bronze (much lighter in color than oil rubbed bronze)
Polished Chrome
Antique Brass
This hinge will adjust both horizontally and vertically. (all in one design)
A Solid Brass extruded jamb wing allows for higher hinge carry capacity.
Hex head adjustment screws, not Phillips or slotted to provide secure tool engagement and prevent stripping during adjustment.
Stainless steel adjustment screws provide superior corrosion resistance.
An integrated hinge pin to provide security for out swing and in swing doors, and will not lift up during normal door operation.
Horizontally adjusts 1/16'' further than most hinges on the market.
Hinge system adjusts 1/4'' vertically and horizontally.
Extremely low adjustment force by vertically adjusting the door from below, not laterally like other hinge designs.
Provides an easy-to-see indicator line for accurate vertical adjustment.
A ''maintenance and noise-free'' operation, even after a million cycles, by incorporating an internal polymer bushing to eliminate any metal to metal contact
Exceeds BHMA-Grade 3 standards for wood, vinyl, aluminum and steel doors
Adjustment notes:
The V200 has both vertical and horizontal adjustment on EACH hinge. The vertical adjust on each hinge is found inside the bottom barrel. The horizontal adjust is found on the face of the door leaf.
The best way to adjust the hinges are to set the middle hinge vertical adjustment first to align the door reveal then ''snug up'' the other two hinges vertical adjustment screws so all three hinges are taking some portion of the door weight. This is one BIG advantage of this hinge design over a lot of other adjustable hinges. Once this is done the horizontal adjustment can be performed on the upper and lower hinge to finish the door alignment.
