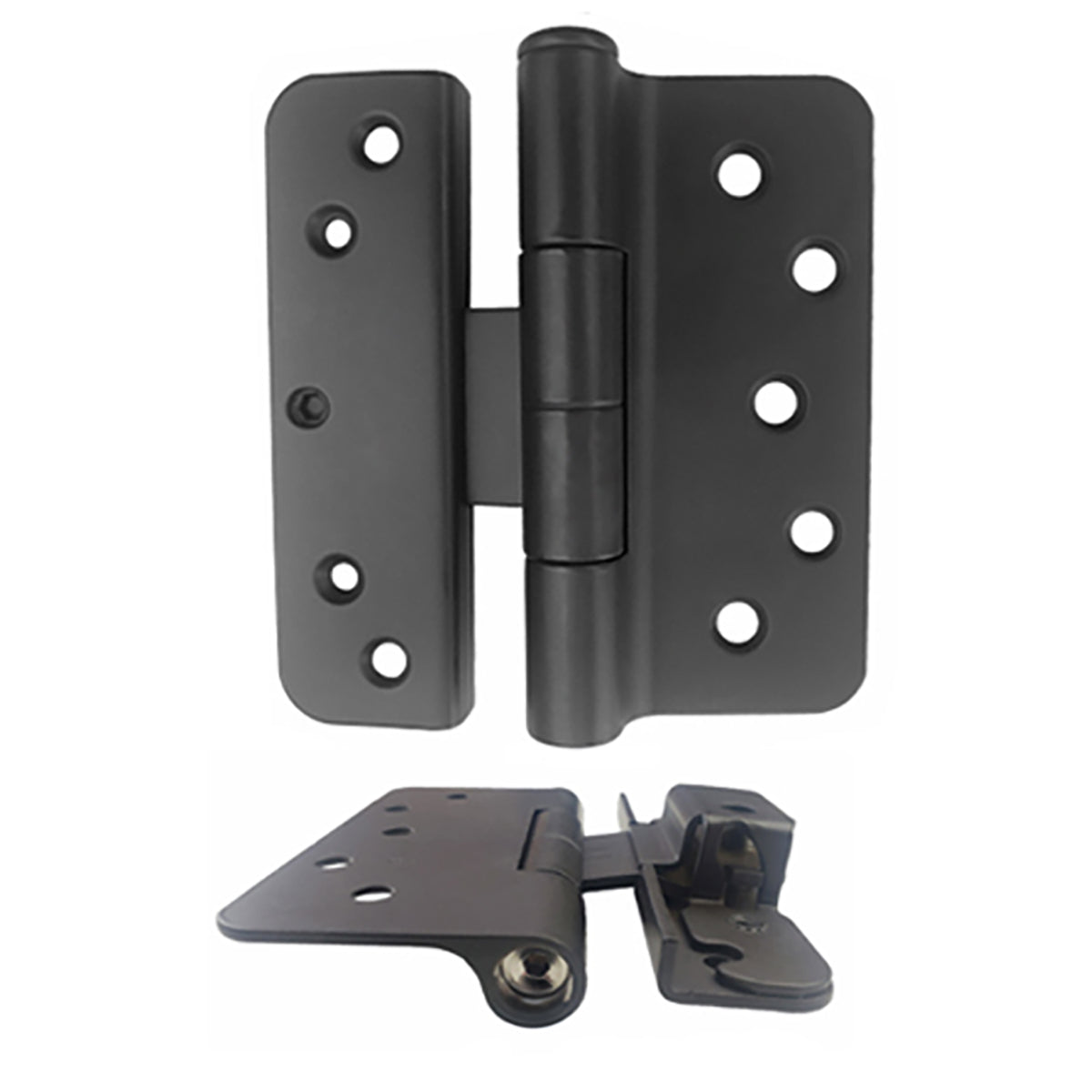

V200 Right Hand All In One Adjustable Hinge, Aluminum Base
- Regular price
- $29.05
- Regular price
- $29.05
- Regular price
-
- Sale price
- $29.05
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type:
Sku: 363716-FORB
V200 adjustable aluminum-base hinge for in-swing or out-swing doors (left or right hand). Adjusts 1/4" vertically and horizontally per hinge. Size: 4-1/4" x 4". Available in Faux Oil Rubbed Bronze; other colors by special order. Current style (2012–present) is flat — do not mix with older bent-style generations. Brass base versions also available (#363717 LH, #363718 RH).
Couldn't load pickup availability
V200 Right Hand All In One Adjustable Hinge, Aluminum Base
Hinge system adjusts 1/4" vertically and horizontally. Horizontally adjusts 1/16" further than most hinges on the market
Door Type: In swing or out swing doors

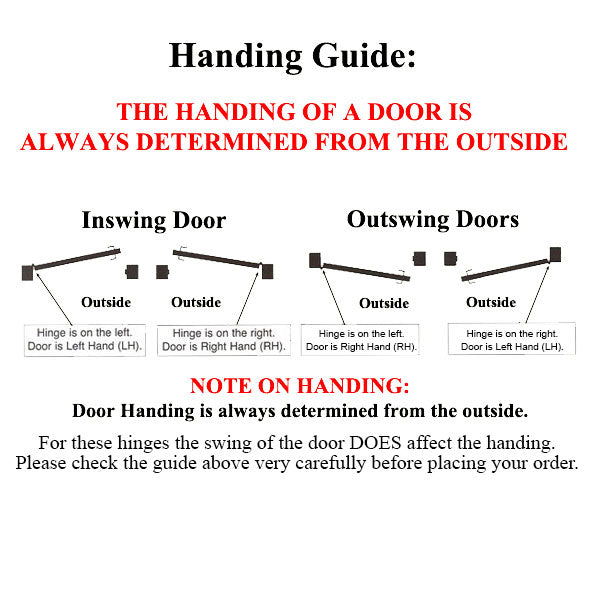

Door Handed: Yes - Left or Right hand as shown
Hinge Size: 4-1/4" x 4"
Hinge Material: Aluminum Base Material
Finish: Powder Coat / Painted, we stock Faux Oil Rubbed Bronze
Other colors available special order.
Adjustment notes:

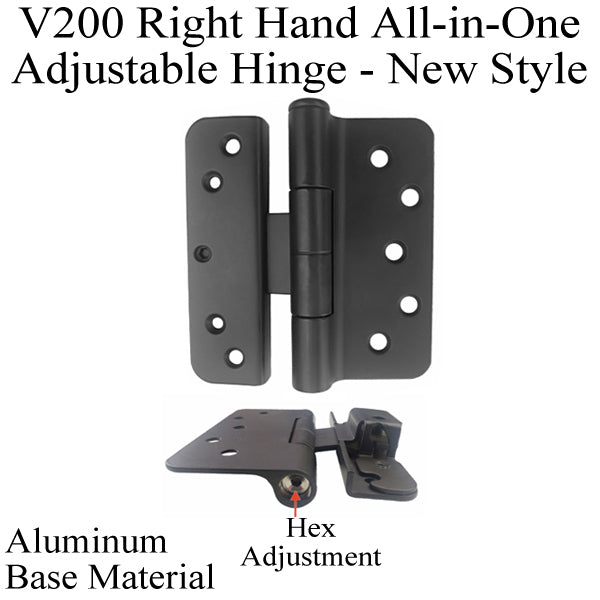

The V200 has both vertical and horizontal adjustment on EACH hinge. The vertical adjust on each hinge is found inside the bottom barrel. The horizontal adjust is found on the face of the door leaf.
The best way to adjust the hinges are to set the middle hinge vertical adjustment first to align the door reveal then "snug up" the other two hinges vertical adjustment screws so all three hinges are taking some portion of the door weight. This is one BIG advantage of this hinge design over a lot of other adjustable hinges. Once this is done the horizontal adjustment can be performed on the upper and lower hinge to finish the door alignment.

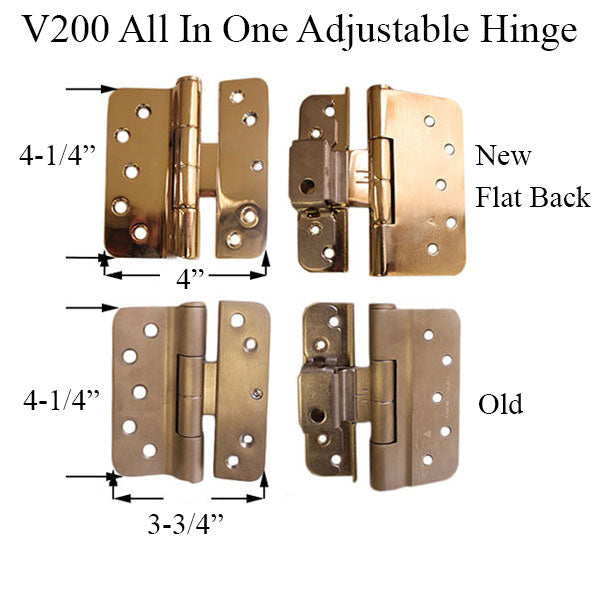

NOTE: Old Style and Current styles can not be mixed. Older styles had a bend in the hinge; new style is flat (see 2nd image) All hinges must be the same style:
1st Generation: Discontinued 2005 - 1st Generation
2nd Generation: Discontinued 2006 - 2012
2012 - Present Current style
Newest Style Hinge - New style 2012 - Present
363715 - Aluminum Base Material - Left Hand
363716 (This listing) - Aluminum Base Material - Right Hand
363717 - Brass Base Material, Left Hand
363718 - Brass Base Material Right hand
