V200 Left Hand All In One Adjustable Hinge, Aluminum Base
- Regular price
- $29.04
- Regular price
- $29.04
- Regular price
-
- Sale price
- $29.04
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type:
Sku: 363715-FORB
V200 left-hand adjustable aluminum hinge for in-swing or out-swing doors. Adjusts 1/4" vertically and horizontally per hinge. Size: 4-1/4" x 4", Faux Oil Rubbed Bronze (other colors special order). Current flat style (2012–present) — do not mix with older bent-style generations. Right-hand version: #363716. Brass base versions: #363717 (LH), #363718 (RH).
Couldn't load pickup availability
V200 All In One Adjustable Hinge, Aluminum Base Material
Hinge system adjusts 1/4" vertically and horizontally. Horizontally adjusts 1/16" further than most hinges on the market
Door Type: In swing or out swing doors

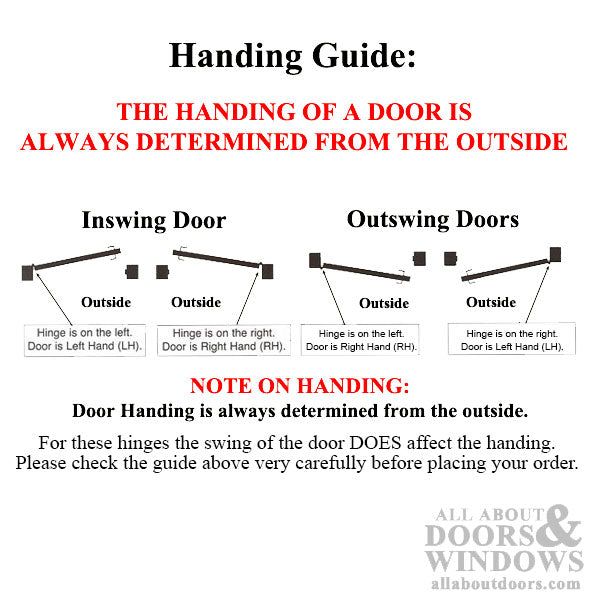

Door Handed: Yes - Left or Right hand as shown
Hinge Size: 4-1/4" x 4"
Hinge Material: Aluminum

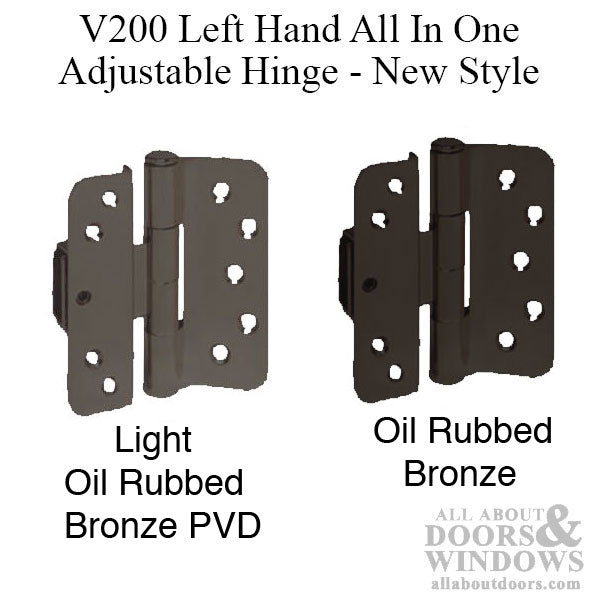

Finish: Powder Coat / Painted, we stock Faux Oil Rubbed Bronze
Other colors available special order.
Adjustment notes:

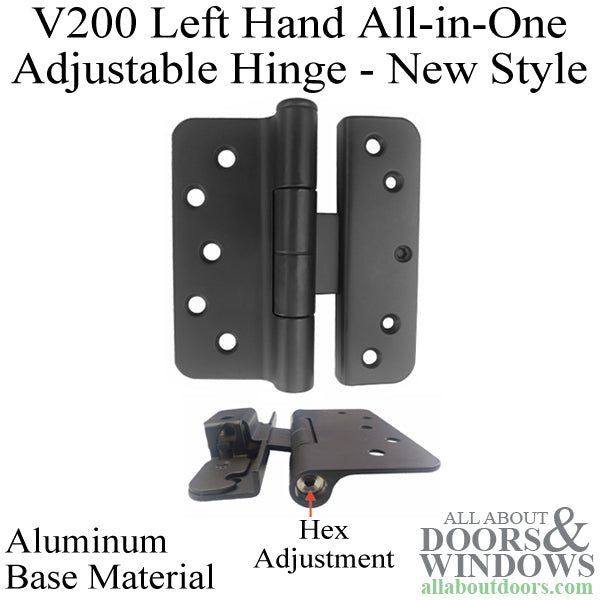

The V200 has both vertical and horizontal adjustment on EACH hinge. The vertical adjust on each hinge is found inside the bottom barrel. The horizontal adjust is found on the face of the door leaf.
The best way to adjust the hinges are to set the middle hinge vertical adjustment first to align the door reveal then "snug up" the other two hinges vertical adjustment screws so all three hinges are taking some portion of the door weight. This is one BIG advantage of this hinge design over a lot of other adjustable hinges. Once this is done the horizontal adjustment can be performed on the upper and lower hinge to finish the door alignment.

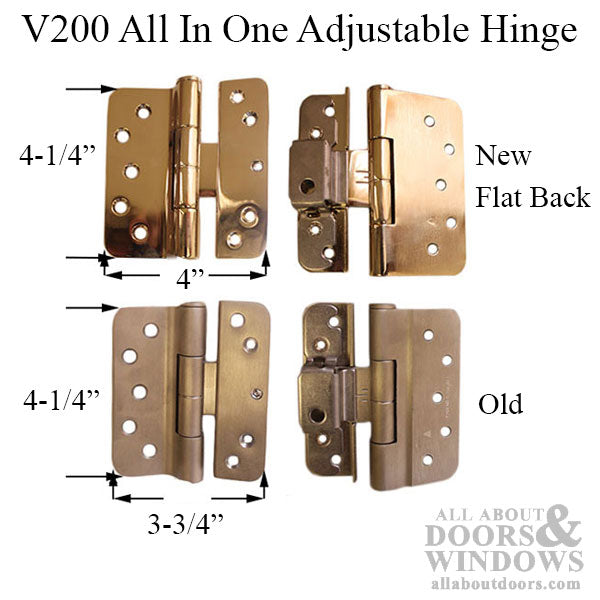

NOTE: Old Style and Current styles can not be mixed. Older styles had a bend in the hinge; new style is flat (see 2nd image) All hinges must be the same style:
1st Generation: Discontinued 2005 - 1st Generation
2nd Generation: Discontinued 2006 - 2012
2012 - Present Current style
