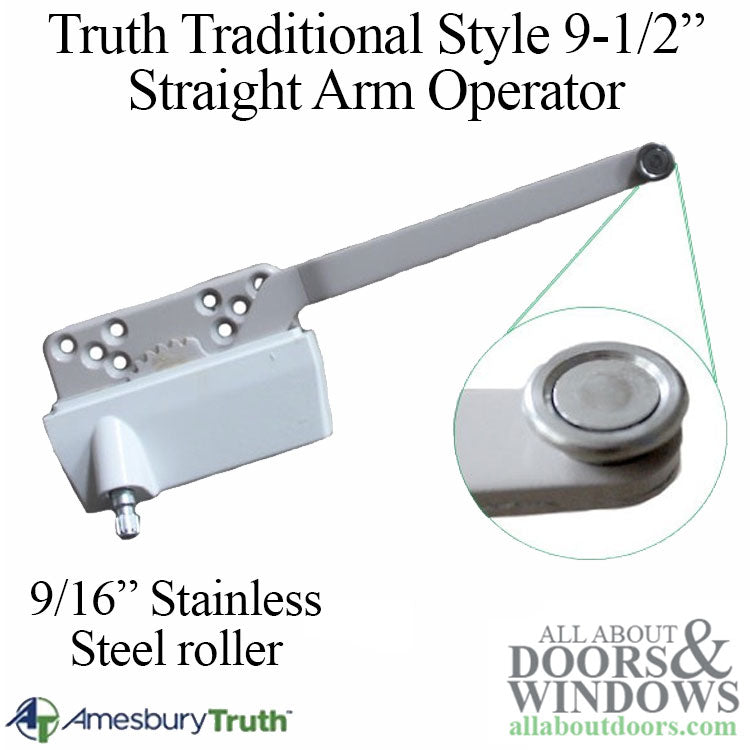

Right Hand Truth Traditional 9-1/2" Straight Arm Casement Operator with Stainless Steel Roller

Truth Traditional 9-1/2" Straight Arm Casement Operator with Stainless Steel Roller – Right Hand

This Truth Traditional 9-1/2" straight arm casement operator features a single, durable arm design constructed for reliability and ease of use in residential windows. The integrated stainless steel roller button ensures smooth, long-lasting operation and fits a range of right-hand casement windows where precise, sturdy movement is critical.

The traditional style housing of this model has been discontinued by the manufacturer; the Ellipse Series now replaces it, but this replacement operator maintains compatibility for those needing to match or service older units. The arm length—from the center of the operator to the center of the roller—measures 9-1/2" (241.3mm), an important dimension for proper fitment in existing frames. The roller itself measures 9/16" (14.3mm), and the unit is specified for right-hand use (when viewed from the interior with the window hinged on the right).

Suitable for use with windows originally built with these Truth operators, this product helps prolong the life and functionality of casement units, especially when exact match hardware is necessary for integrity or code compliance. The base is marked "45251" for identification during replacement projects. The housing is available in a white finish.

Stamped With

• 45251 (Marking on Base)

Technical Information

• Brand: Truth
• Style: Traditional
• Arm Type: Single straight arm

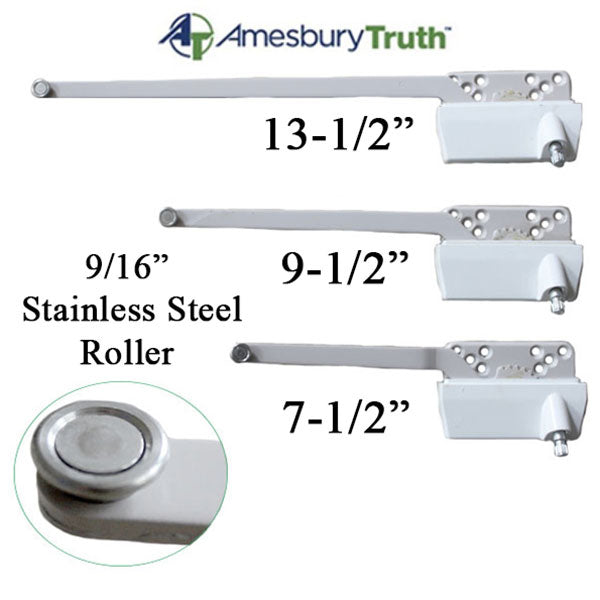

• Arm Length: 9-1/2" (241.3mm)
• Roller: 9/16" (14.3mm) Stainless Steel
• Handed: Right Hand
• Color Option: White

Notes

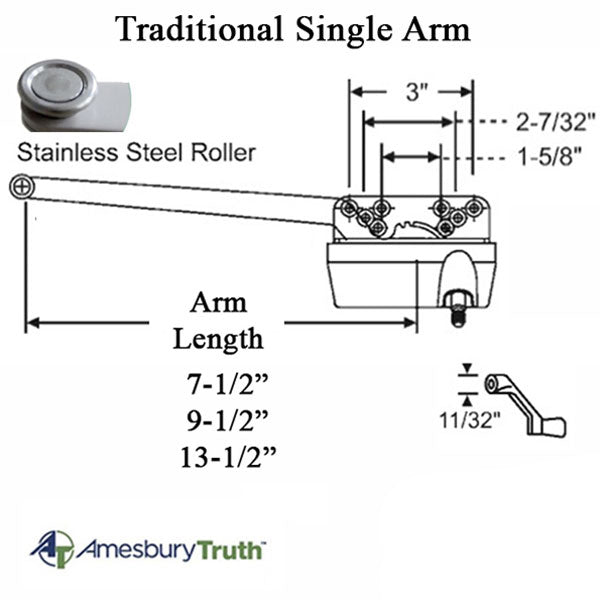

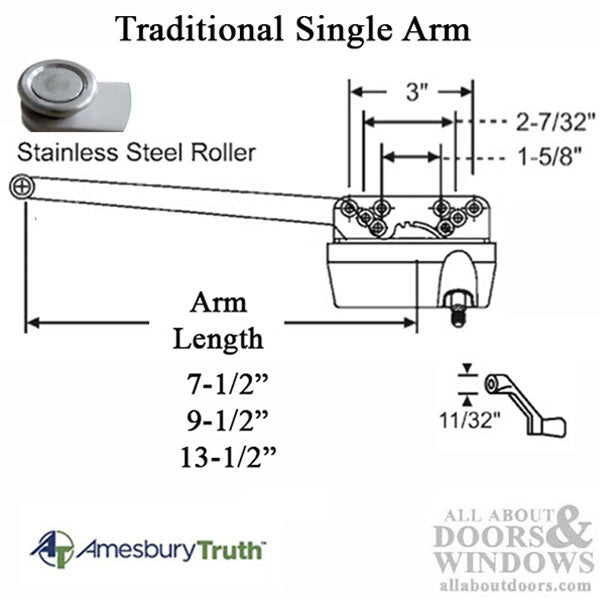

• The straight arm measurement is taken from the center of the operator to the center of the roller. It is critical to refer to images and measure your existing hardware to ensure compatibility.
• The operator housing style is discontinued and replaced by the Ellipse Series, but this item fits many windows originally equipped with the Truth Traditional system.

Replaces / Replaced by

• This Truth Traditional style operator housing is replaced by the Ellipse Series.

This operator is sold individually. Please measure your current hardware carefully—including roller diameter and arm length—to verify compatibility before ordering. Proper measurement is essential to ensure the correct fit.
