Left-Hand Truth Traditional 9-1/2" Straight Arm Casement Operator, Stainless Steel Roller

Truth Traditional 9-1/2" Straight Arm Casement Operator with Stainless Steel Roller - Left Hand

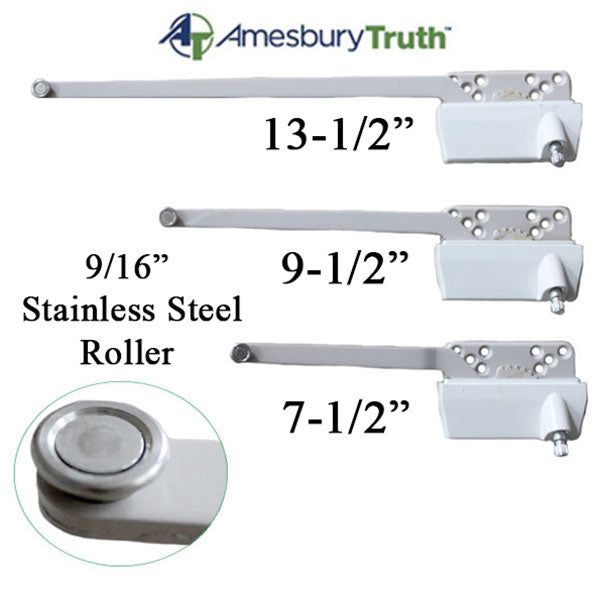

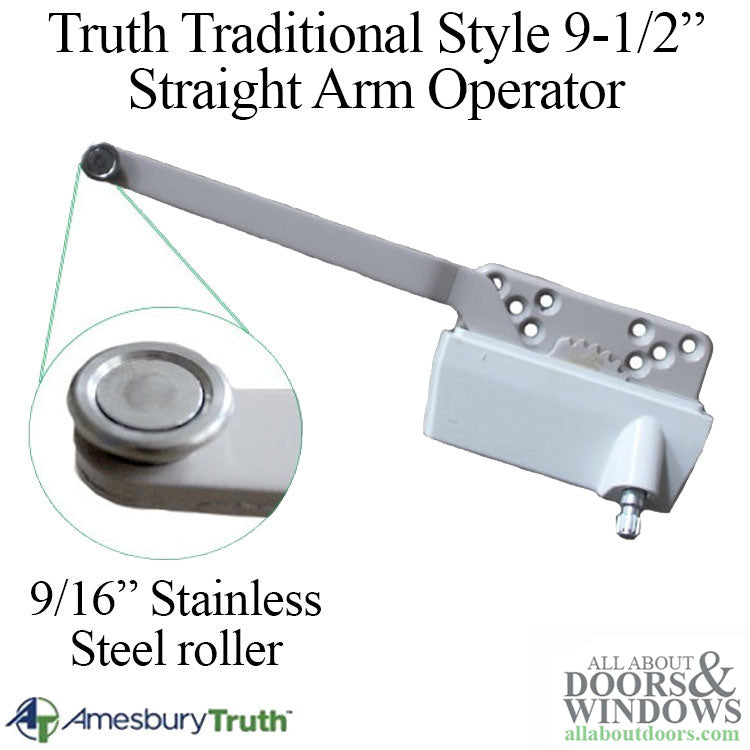

This Truth Traditional left-hand casement operator is designed for windows requiring a 9-1/2" (241.3 mm) single straight arm with a durable 9/16" (14.3 mm) stainless steel roller button. Commonly used in casement windows, this operator assists with smooth window opening and closing. The traditional style housing has been discontinued by the manufacturer and is now replaced by the Ellipse Series. If you are seeking a direct replacement for the original Truth Traditional model, this may be your part as long as your window matches the specifications below.

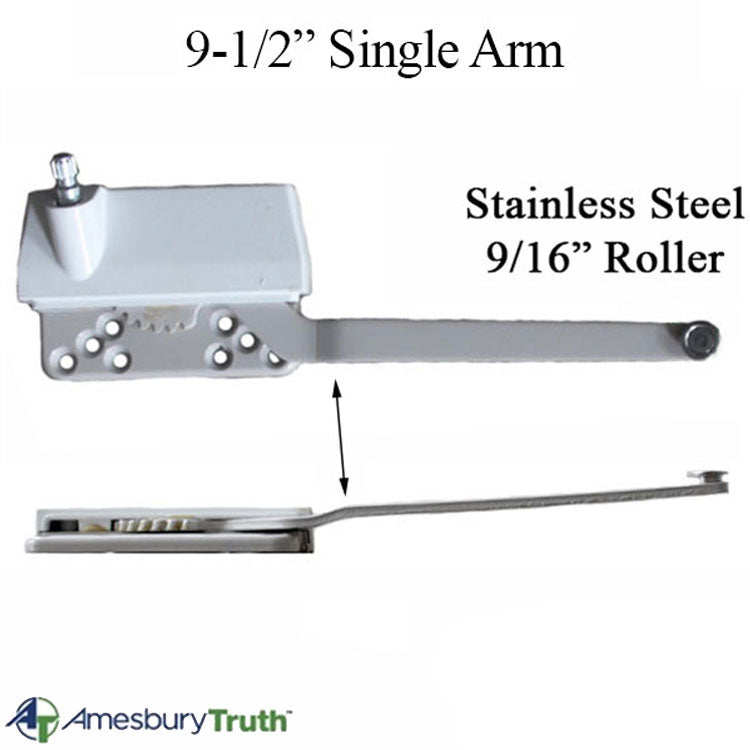

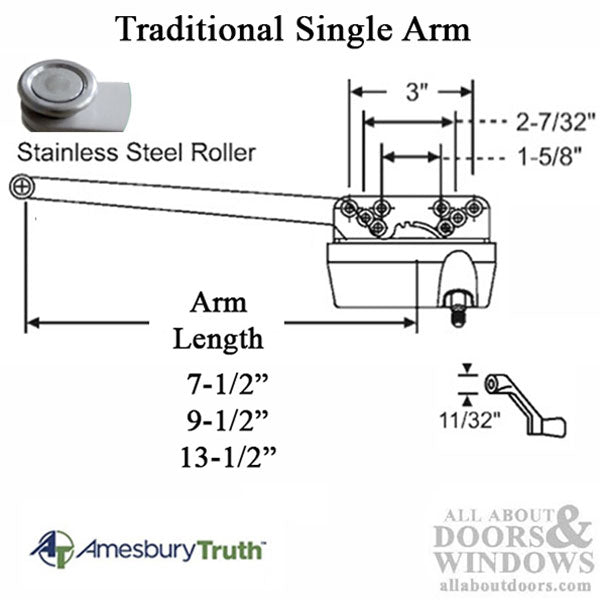

The left-hand configuration is as shown in images, identifiable by the arm and roller orientation. The base of the operator is marked with "45251." This operator fits window systems previously using the classic Truth single straight arm mechanism. The arm length is measured from the center of the operator housing to the center of the roller. Please refer to additional images for more measurement details.

Technical Information

• Brand: Truth
• Style: Traditional
• Arm Type: Single Straight Arm
• Arm Length: 9-1/2" (241.3 mm)
• Roller Size: 9/16" (14.3 mm) Stainless Steel
• Handed: Left
• Markings on Base: 45251
• Color Option: White

Notes

This operator housing style has been discontinued and replaced by the Ellipse Series. For the best fit, please confirm the handedness, arm type, and all measurements before ordering. Color shown is white.

Replaces / Replaced by

Replaced by the Ellipse Series casement operator.

Operators are sold individually. Always measure your existing hardware carefully, including handedness, arm length, and roller position, to ensure an exact fit before ordering. Proper measurement is essential to ensure compatibility and reduce the chance of returns.
