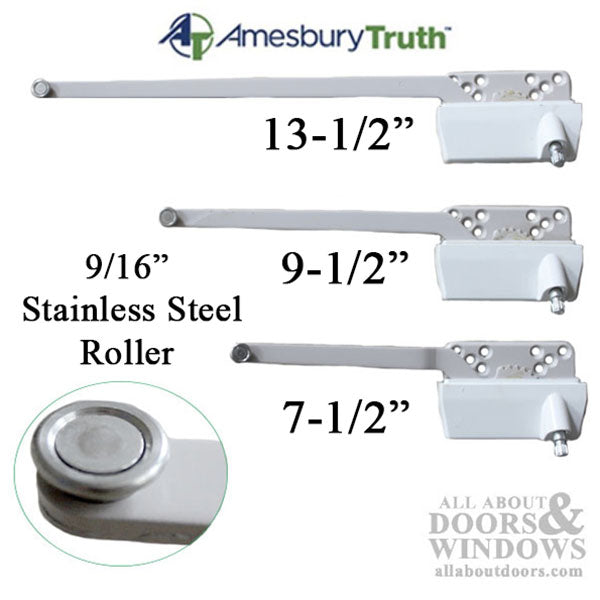

Right Hand 13-1/2" Straight Arm Casement Operator, Stainless Steel Roller

Truth Traditional 13-1/2" Straight Arm Casement Operator, Right Hand, Stainless Steel Roller

This Truth Traditional 13-1/2" single straight arm casement operator is designed for use with casement windows that utilize a single straight arm mechanism. It features a durable 9/16" (14.3mm) stainless steel roller for smooth window operation and longevity. This operator is right-hand specific, so please refer to the product image to confirm hand orientation for your application.

This operator belongs to the "Traditional" style housing, which has been discontinued and replaced by the Ellipse Series. If you are looking to replace an older Truth operator with a straight arm, this part is specifically suited for applications where the arm length is measured from the center of the operator to the center of the roller (13-1/2" / 342.9mm). The base of the operator is marked with "45251" for identification. Available in white finish to blend seamlessly with most window frames.

Technical Information

• Arm Length: 13-1/2" (342.9mm)
• Roller Diameter: 9/16" (14.3mm), Stainless Steel
• Handed: Right Hand
• Markings on Base: 45251
• Color: White

Notes

• Straight arm measurement is from the center of the operator to the center of the roller.
• Vendor: Amesbury Truth Hardware
• Style: Traditional
• This housing is discontinued and replaced by the Ellipse Series.

Replaces / Replaced by

• Replaced by: Ellipse Series (please verify compatibility if upgrading)

Each casement operator is sold individually. Please check your existing hardware measurements and hand orientation carefully prior to ordering to ensure a correct replacement. Always measure your current hardware accurately before purchasing to guarantee proper fit.
