Truth Stud Bracket Left Hand, YDI Finish for Entrygard Dyad Operators

Truth® Stud Bracket, Left Hand – YDI Finish

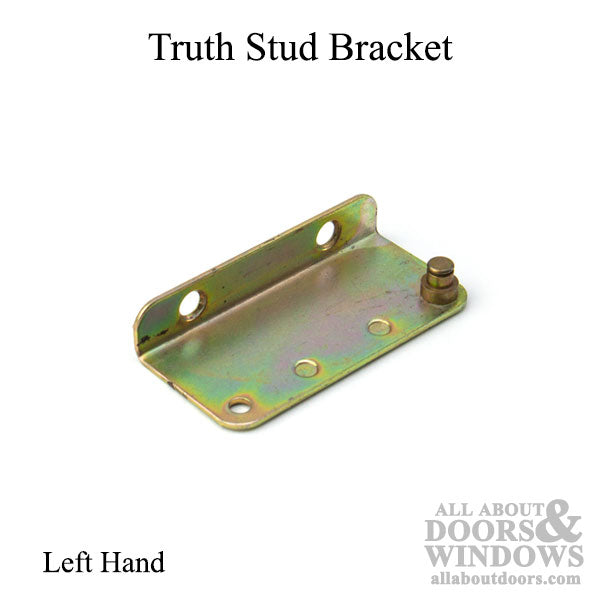

The Truth® Stud Bracket (Left Hand, YDI finish) is a specialized hardware component primarily used with Entrygard® Dyad Window Operators. Its design helps ensure secure attachment and optimal operation of window systems utilizing this operator style. The bracket is left-handed as shown, making it suitable for windows and operators requiring this specific orientation.

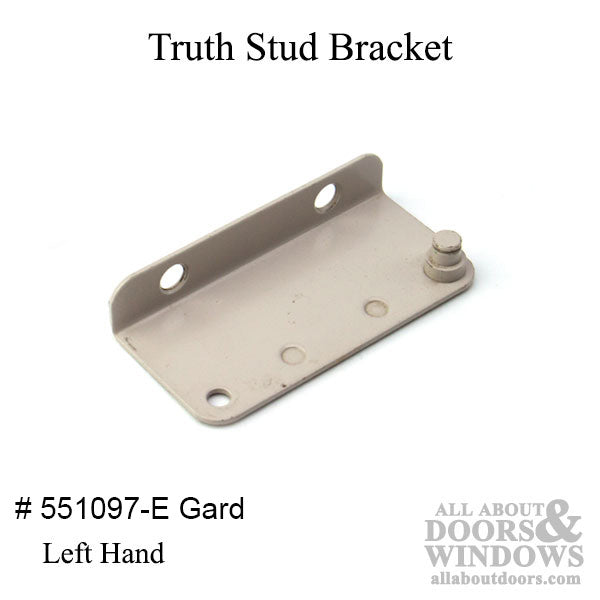

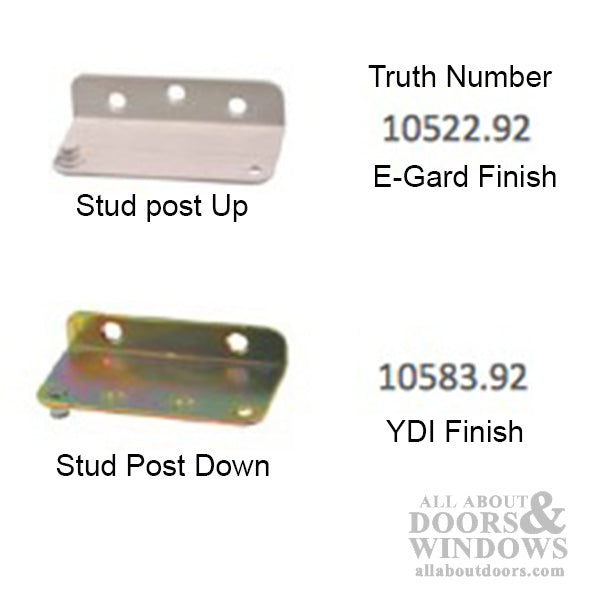

This bracket measures 2-7/8" (73.0mm) in length and 1-3/8" (34.9mm) in width. The part is finished in YDI, which is a standard protective finish by Truth, though a version with E-Gard® powder coat is also available if improved corrosion resistance is needed—ensure you select the finish appropriate for your application. Note that the identification numbers 20629 / 10415 may appear on both left and right bracket versions; these numbers denote the plate itself and not the stud position, so always confirm hand orientation before ordering.

Screws are not included with your purchase. The part is priced and sold individually (one bracket per order).

Stamped With

• 20629
• 10415

Technical Information

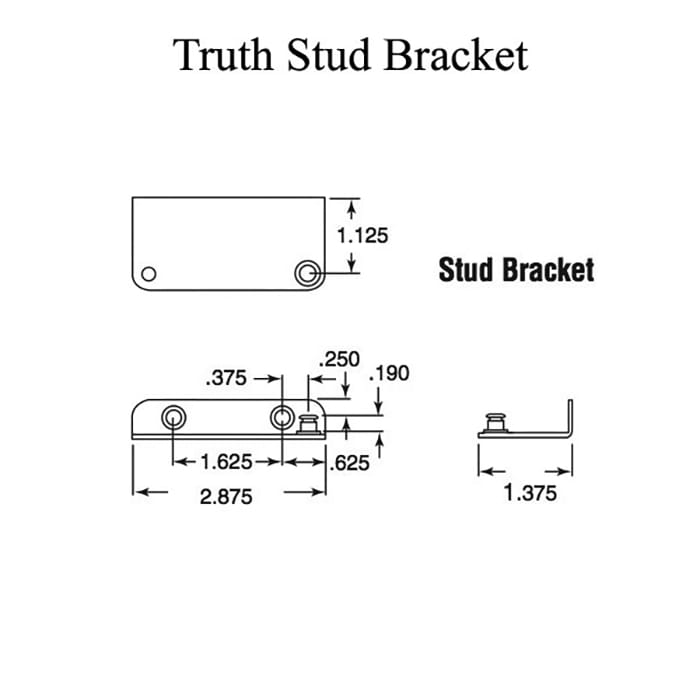

• Dimensions: 2-7/8" long × 1-3/8" wide (73.0mm × 34.9mm)
• Handed: Yes, Left Hand
• Finish: YDI
• Compatibility: For use with Entrygard® Dyad Operator

Notes

• 20629 / 10415 identifies the bracket plate, not the orientation.
• The E-Gard® version has the same dimensions, but a more protective powder coat.

Please confirm the hand orientation and measure your existing hardware carefully to ensure correct fit before ordering. Always double-check all measurements and compatibility with your window system.
