LHO/RHI Adjustable 4" x 4" Sentry Door Hinge – Truth®

Truth® Sentry Hinged Door Adjustable Set Hinge, LHO / RHI, 4" x 4"

This Truth® Sentry adjustable set hinge is designed for use on hinged doors that require maximum strength, reliable security, and easy adjustability. Engineered to fit left hand outswing (LHO) and right hand inswing (RHI) doors, this hinge is commonly used as a replacement or upgrade on residential and light commercial exterior doors.

Fabricated from extruded brass or aluminum, the hinge delivers excellent corrosion resistance and durability for both painted and exposed (brass) installations. The non-removable hinge pin helps deter tampering, which is an important feature for security-conscious installations like entry doors.

Both horizontal and vertical adjustments are built in, making it easy to ensure your door fits squarely and operates smoothly. The horizontal adjustment range is +/- 0.08" (2.0mm), and the vertical adjustment range is +/- 0.12" (3.0mm), allowing installers to fine-tune door alignment without removing the hinge from the frame.

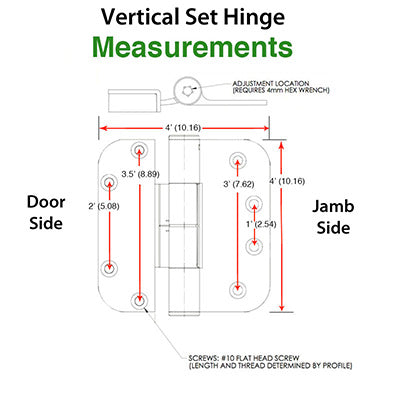

The hinge features a standard 4-hole template and is sized at 4" x 4" (101.6mm x 101.6mm) with 5/8" (15.9mm) corner radius, fitting many common modern door preps. Two thicknesses are provided: 9/16" (14.2mm) on the thicker side and 1/8" (3.0mm) on the thinner side of the hinge leaf. Installation screws are not included.

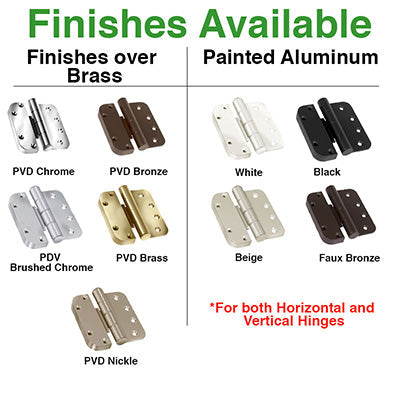

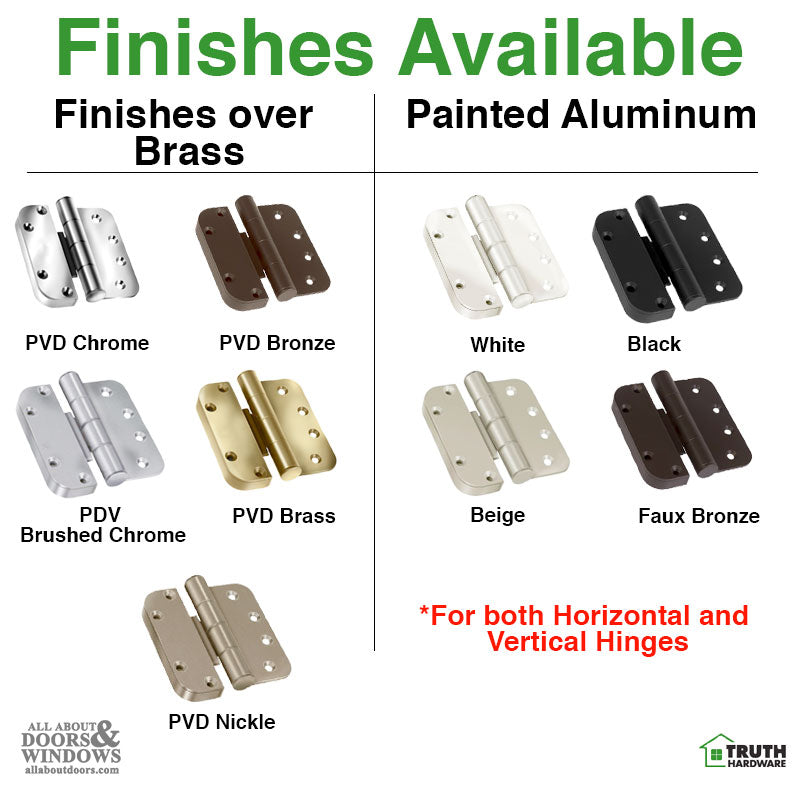

Choose from a broad range of finishes to match your door and hardware: solid brass (antique brass, PVD brass, PVD brushed chrome, PVD chrome, PVD oil-rubbed bronze, PVD nickel/satin nickel) or painted aluminum (white, beige, faux bronze, black).

Technical Information

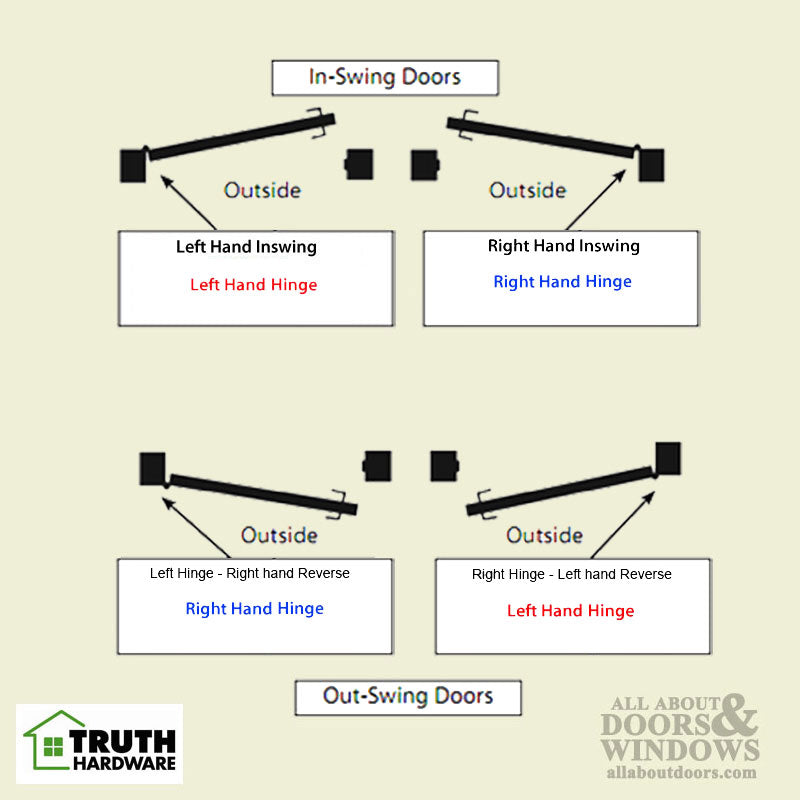

• Handing: Left Hand Outswing (LHO) / Right Hand Inswing (RHI)
• Overall Height: 4" (101.6mm)
• Overall Width: 4" (101.6mm)
• Corner Radius: 5/8" (15.9mm)
• Hinge Thickness: 9/16" (14.2mm) / 1/8" (3.0mm)
• Horizontal Adjustment: +/- 0.08" (2.0mm)
• Vertical Adjustment: +/- 0.12" (3.0mm)
• Pin: Non-removable
• Material: Solid Brass or Painted Aluminum
• Hole Pattern: Standard 4-hole template
• Installation Screws: Not included
• Finishes Available: Antique Brass, PVD Brass, PVD Brushed Chrome, PVD Chrome, PVD Oil Rubbed Bronze, PVD Nickel (Satin Nickel), White, Beige, Faux Bronze, Black

Notes

• This hinge does not include installation screws. Use appropriate screws for your door material and application.
• Compatible with doors requiring a 4" x 4" hinge with LHO/RHI handing. For Right Hand Outswing / Left Hand Inswing doors, see part 9748021.

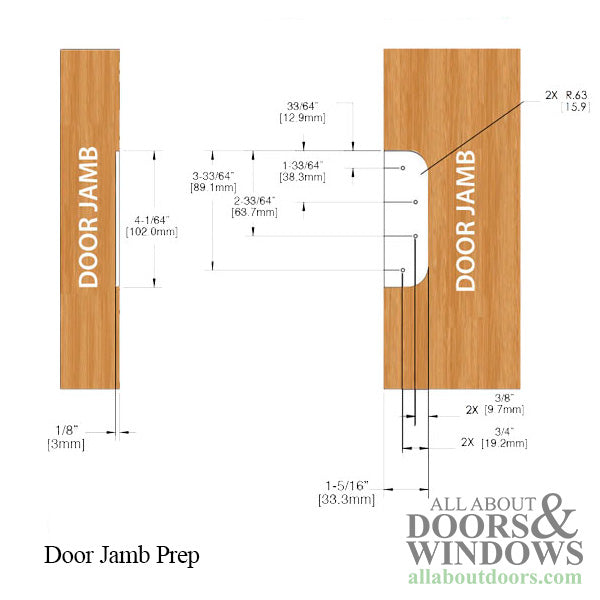

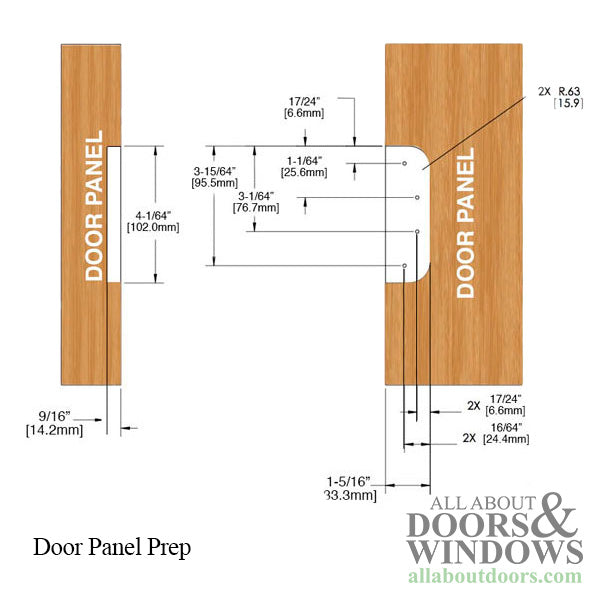

Hinges are sold individually. Always measure your existing hardware and door prep before ordering to ensure the correct fit. Double-check all dimensions and handings for compatibility to avoid returns.
