LHO/RHI Truth Sentry Adjustable Guide Hinge 4" x 4" for Doors
- Regular price
- $48.94
- Regular price
-
- Sale price
- $48.94
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type: Hardware
Sku: 9748012-AB
Truth® Sentry hinged door adjustable guide hinge measures 4" x 4" (101.6mm x 101.6mm) and fits left hand outswing or right hand inswing doors (LHO/RHI). Made of solid brass or painted aluminum for strength and corrosion resistance, it has non-removable pins and allows horizontal adjustment of ±0.08" (±2mm). 5/8" (15.9mm) corner radius, standard 4-hole template, thickness ranges from 9/16" (14.2mm) to 1/8" (3.0mm).
Couldn't load pickup availability
Truth® Sentry Hinged Door Adjustable Guide Hinge, LHO / RHI, 4" x 4" (101.6mm x 101.6mm) - Multiple Finishes
The Truth® Sentry Hinged Door Adjustable Guide Hinge is designed to provide reliable strength and lasting security for exterior doors. Constructed from extruded brass or extruded aluminum, these hinges offer corrosion resistance, making them ideal for entry applications exposed to the elements.
This guide hinge allows for horizontal adjustment of ±0.08" (±2.0mm), helping to achieve a precise door fit even when openings are less than perfect. The non-removable pin design enhances security by preventing hinge tampering from the outside. It features a Standard 4-hole template and uses hex-head screws for installation.

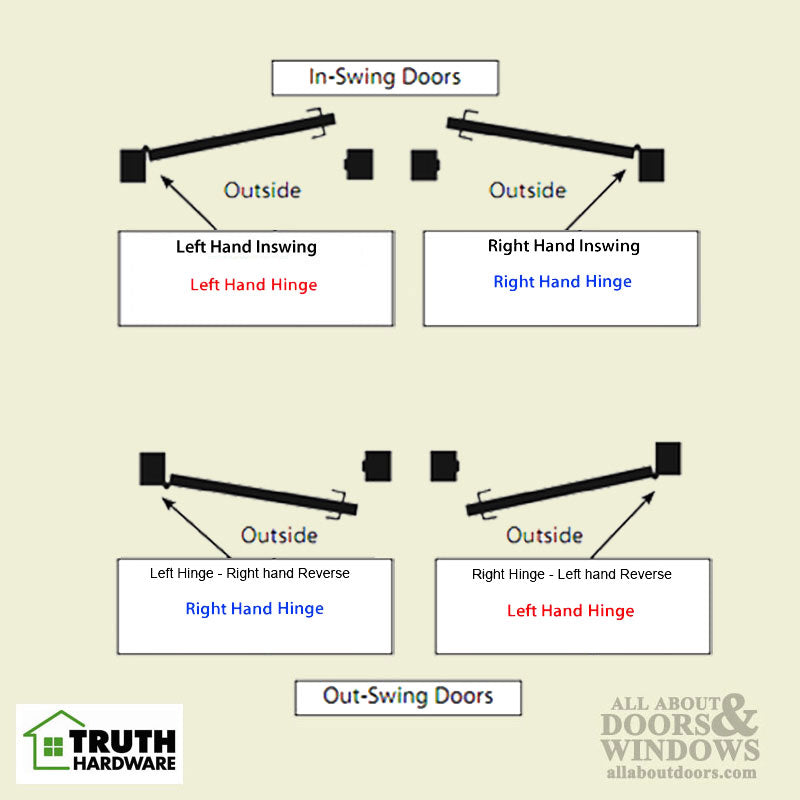

This model is suitable for Left Hand Outswing or Right Hand Inswing door configurations (LHO/RHI). For Right Hand Outswing or Left Hand Inswing doors, reference part number 9748011.
Technical Information
- Height: 4" (101.6mm)
- Width: 4" (101.6mm)
- Corners: 5/8" (15.9mm) corner radius
- Thickness: 9/16" (14.2mm, thicker side), 1/8" (3.0mm, thinner side)
- Handing: Left Hand Outswing / Right Hand Inswing (LHO/RHI)
- Adjustment: Horizontal ±0.08" (±2.0mm); use with Set Hinge for ±0.12" (±3.0mm) vertical adjustment
- Material: Solid Brass or Painted Aluminum
- Hinge Pin: Non-removable

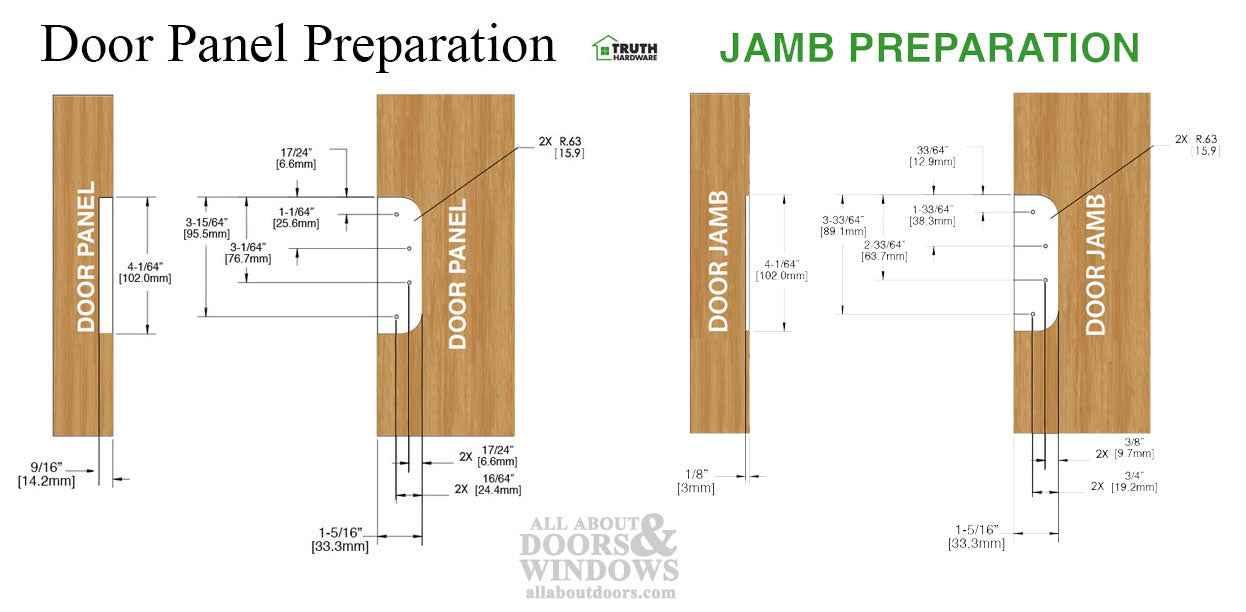

- Hole Pattern: Standard 4-hole template
- Fasteners: Hex-head screws

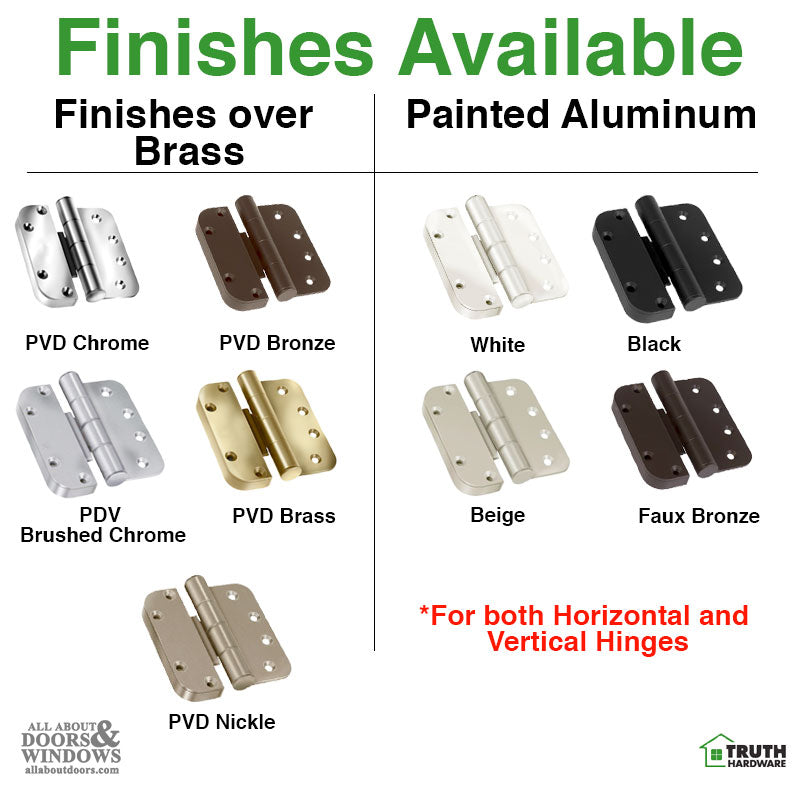

Available Finishes
- Solid Brass: Antique Brass, PVD Brass, PVD Brushed Chrome, PVD Chrome, PVD Oil Rubbed Bronze, PVD Nickel (Satin Nickel)
- Painted Aluminum: White, Beige, Faux Bronze, Black
Notes
- Designed for use on hinged entry or patio doors requiring secure and corrosion-resistant hardware.
- Pairs with a Set Hinge for full horizontal and vertical adjustment capabilities.
- Ensure you select the correct hand (LHO/RHI). For opposite handing, see part 9748011.
This product is sold individually. Be sure to measure your existing hinge's size, thickness, and handing to confirm compatibility before ordering. Always double-check your measurements to ensure the correct fit.
