Truth Secondary Sash Lock, Black Cam, Tie Bar

Truth Secondary Home Gard Sash Lock with Black Plastic Cam — Tie Bar Applications

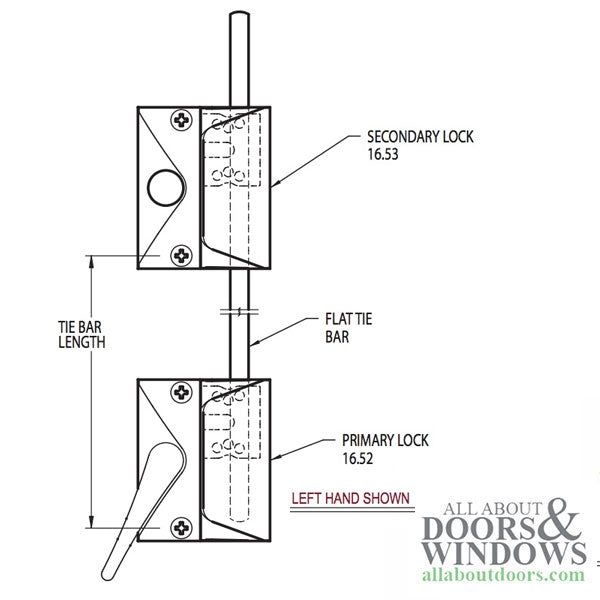

This is a secondary (dummy) top sash lock designed for multipoint casement windows that use a tie bar. It operates in tandem with a primary sash lock that carries the operating lever, so this piece does not include a lever or pin of its own.

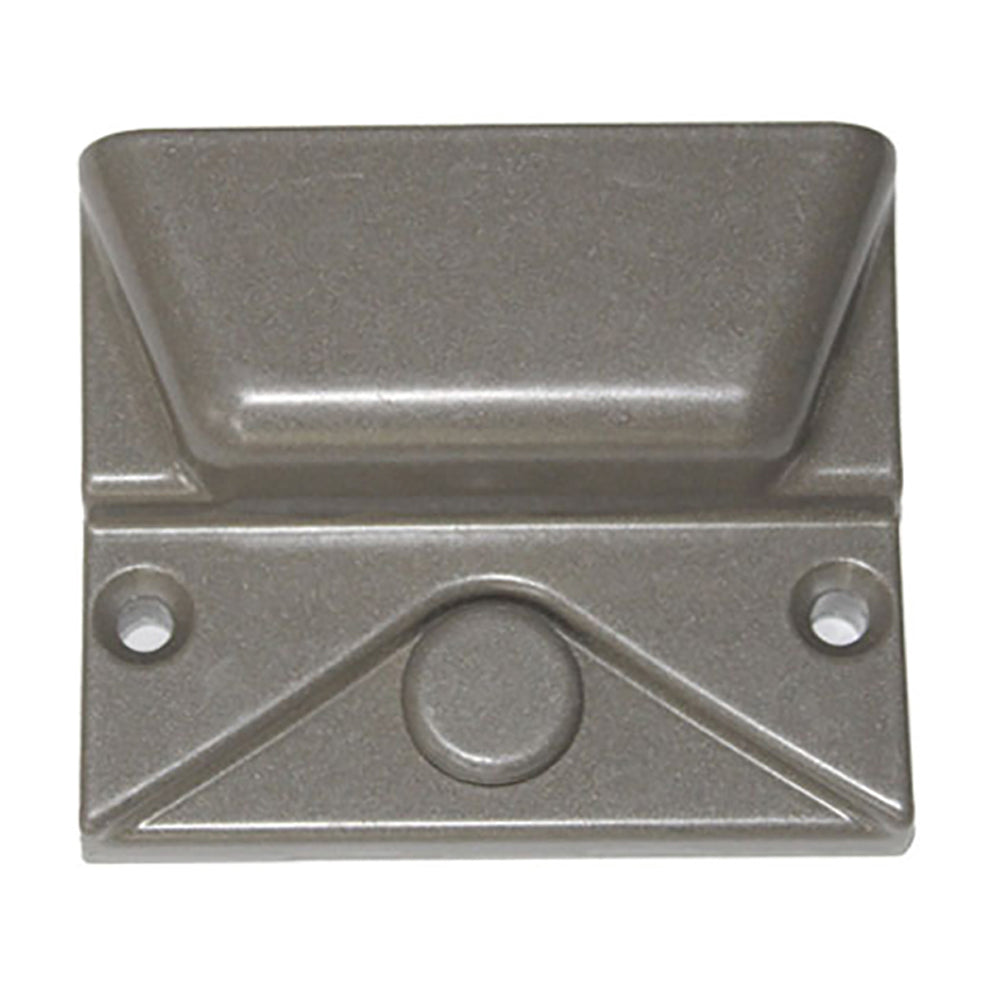

The body is high-pressure die-cast zinc with a galvanized steel back plate, and the cam is high-strength black plastic. It is commonly found on windows from Hayfield, Semco, VOS, Vetter, Weather Shield, Crestline, and others.

This is older inventory and may have minor imperfections in the finish. It is sold as-is.

Technical Information

• Application: Multipoint lock casement window with tie bar

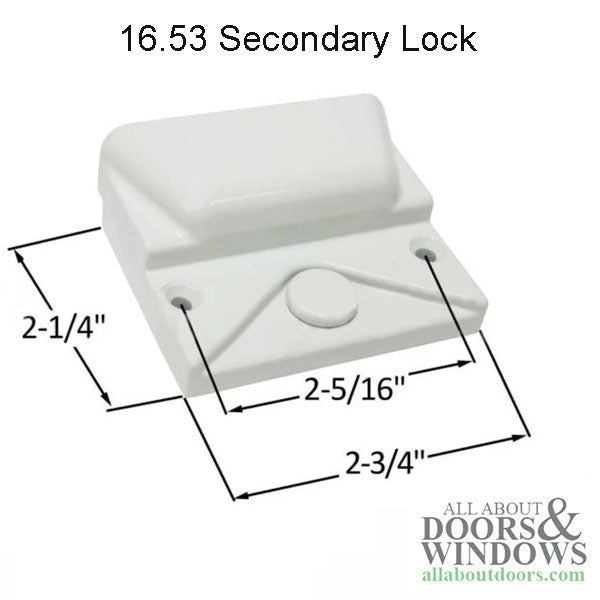

• Sash Lock Width: 2-1/4" (57.2mm)
• Sash Lock Height: 2-3/4" (69.9mm)
• Screw Hole Spacing: 2-5/16" (58.7mm)
• Cam Width: 1/2" (12.7mm)
• Lock Material: Die-cast zinc handle and case, galvanized steel back plate
• Cam Material: High-strength black plastic
• Color: As shown
• Suggested Screws: #8 x 1.25" flat head (sold separately)

Notes

• Used by Hayfield Windows, Semco, VOS, Vetter, Weather Shield, Crestline, and other window brands.

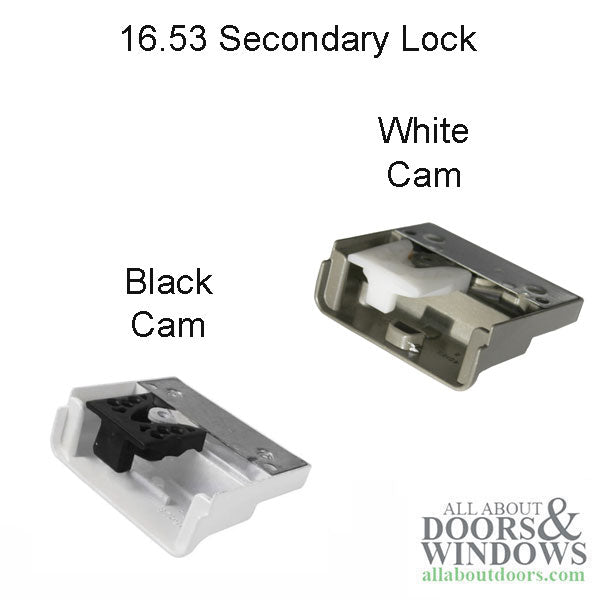

• Older versions were used with flat bar or wire tie bars, and the plastic cams came in either white or black.

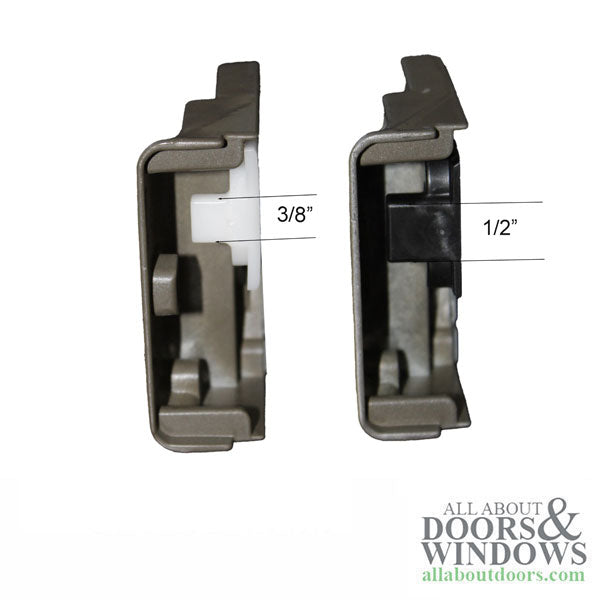

• The white and black cams are different sizes. Both will function as a secondary lock, but replacing a white cam version with this black cam version will also require a new matching keeper.
• Browse our site for a matching keeper for the black cam version, or for the white cam version if needed.

Priced and sold each. Screws are sold separately. This is old inventory and availability is limited to existing stock. Please measure your existing hardware and compare screw hole spacing, cam size, and overall dimensions before ordering to ensure the correct fit.
