Truth Rectangular Spring Foot Bolt, Long 0.79" Bolt - 15307
- Regular price
- $11.96 - $13.52
- Regular price
- $13.52
- Regular price
-
- Sale price
- $13.52
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type:
Sku: 15307-CBRZ

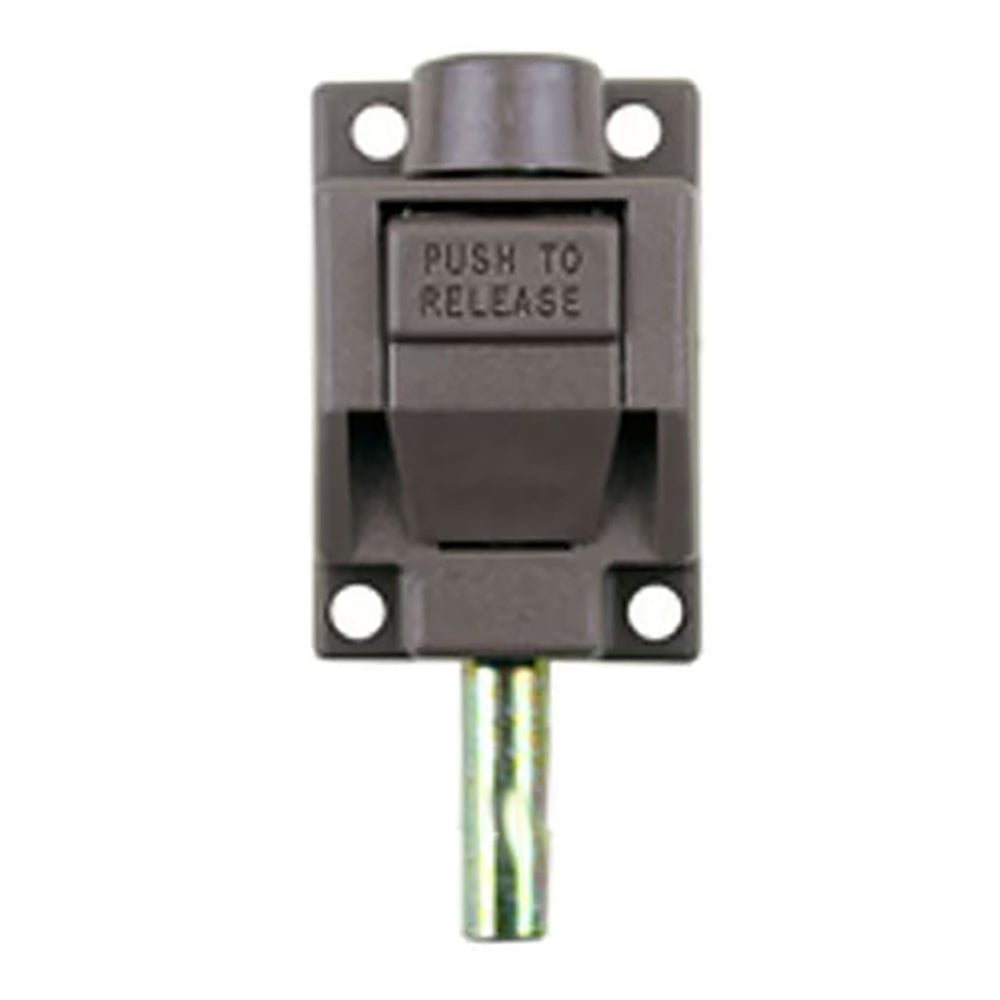

Auxiliary foot bolt for Truth rectangular patio doors, featuring a plastic triangular base, spring action, and a long 25/32" (20.0mm) bolt with a 5/16" (7.9mm) diameter. The bolt extends 0.79" (20.1mm) when locked and installs with four screws. Sold each in white or bronze; strike plate not included.
Couldn't load pickup availability
Truth Rectangular Spring Action Foot Bolt for Patio Doors - Long Bolt

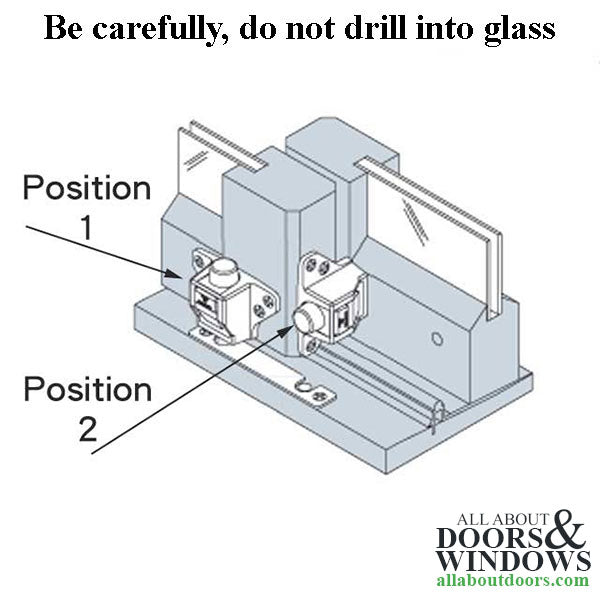

This auxiliary foot bolt is designed for Truth rectangular patio door systems. It provides a secondary locking point at the bottom of the door for added security and hold.
The bolt has a plastic triangular base with four mounting screw holes and a spring-action steel bolt that drops into a strike plate installed in the sill. When locked, the 5/16" (7.9mm) diameter bolt protrudes 0.79" (20.1mm) for a solid engagement.
This is the long-bolt version. A shorter 0.56" (14.2mm) bolt version is also available. A matching strike plate is required and sold separately.
Technical Information
- Body Height: 1-3/4" (44.5mm)
- Body Width: 3" (76.2mm)
- Overall Height: 2-5/8" (66.7mm)
- Bolt Diameter: 5/16" (7.9mm)
- Bolt Extension: 0.79" (20.1mm)
- Bolt Throw: 1" (25.4mm) when locked
- Hole Pattern: 4 holes
- Hole Centers: 1-7/8" (47.6mm) bottom holes, 2-1/8" (54.0mm) top holes
- Base Shape: Triangular, plastic
- Action: Spring-loaded

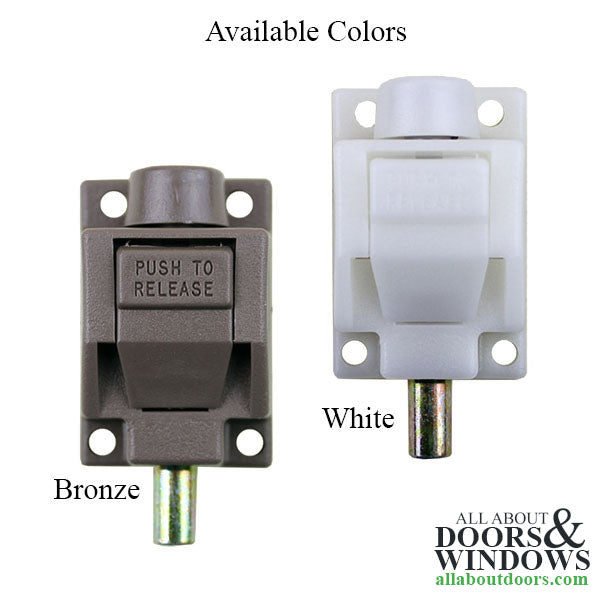

- Finish Options: White or Bronze
- Truth Part Number: 41.14.03.100 (long bolt)
- Strybuc Part Number: 16-211-3 (White), 16-211-1 (Bronze)
Notes
- Strike plate not included. Compatible strike options include the 15303 (2-hole flat), 15304 (1-hole offset), and 15305 (2-hole angled).
- Related short-bolt (0.56") versions: 15301 (triangular base) and 15302 (rectangular base). Truth part 41.13.03.100 is the short bolt equivalent.
- Contains one (1) foot bolt.
Priced and sold each. Order the quantity you need and select a matching strike plate separately. Please measure your existing foot bolt, bolt diameter, and screw hole spacing before ordering to ensure the correct fit.
