Truth® 40.94 Non-Keyed Curved Top Sliding Door Handleset Trim
- Regular price
- $136.08
- Regular price
-
- Sale price
- $136.08
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type: Hardware
Sku: 147141-BSN
Non-keyed curved top sliding door handle set fits doors with 3-15/16" (100.0mm) screw hole spacing and features an inside thumbturn. Escutcheon plate measures 1-1/4" (31.8mm) wide by 13" (330.2mm) long; installation screw holes are 11-15/16" (302.8mm) apart. Additional hole drilling may be needed for bottom screw; available in white, faux bronze, or satin nickel finishes.
Couldn't load pickup availability

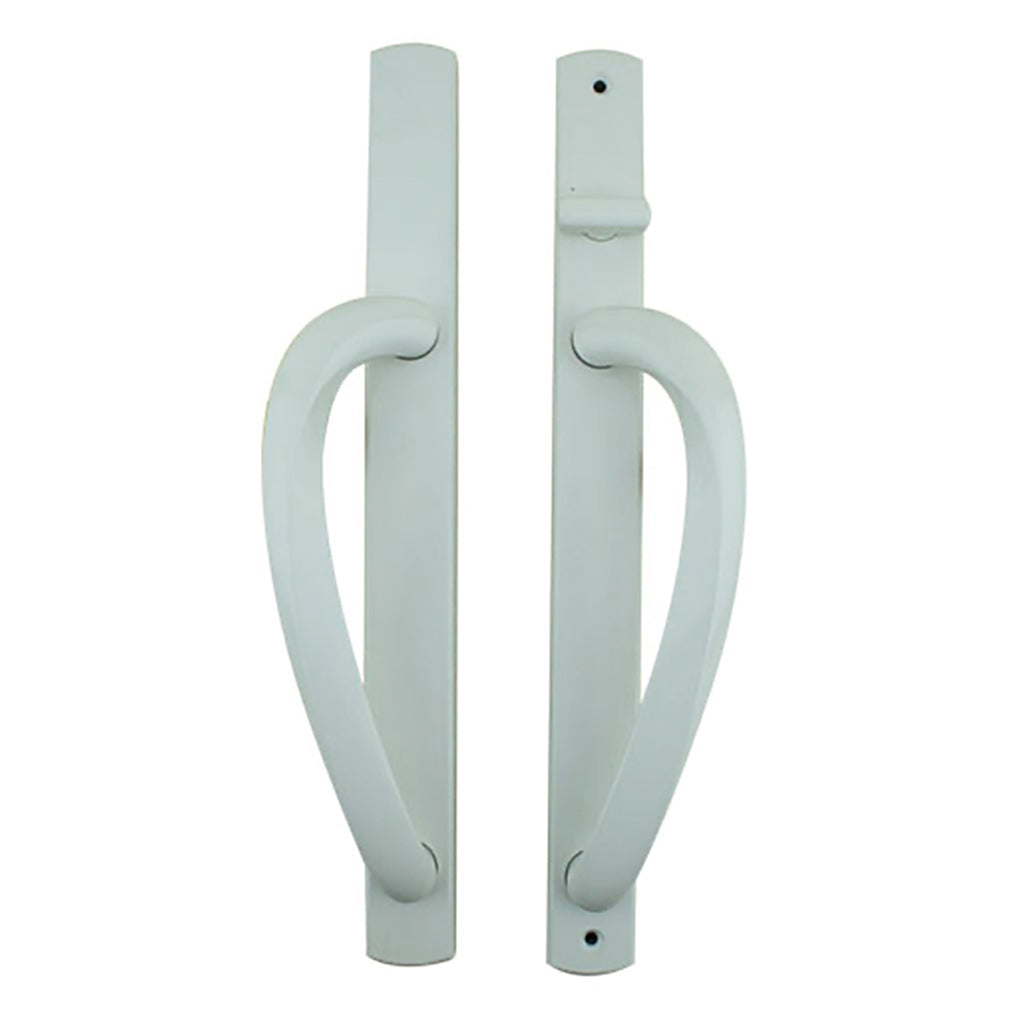

Truth® Non-Keyed Curved Top Sliding Door Handleset Trim
This handleset trim is designed specifically for sliding doors utilizing the Truth® 40.94 Signature Series hardware. It features a non-keyed mechanism with an inside thumbturn, offering easy operation and security for residential or commercial sliding doors without exterior keyed access. The curved top design suits contemporary and traditional applications alike, and the trim is available in multiple finishes, including White, Faux Bronze, and Lifetime Brushed/Satin Nickel.
This replacement trim is compatible with door panels that have standard 3-15/16" screw hole spacing. However, you will need to drill additional holes to accommodate the bottom screw during installation. The handleset is constructed from durable aluminum with painted finishes and brass for premium PVD (Physical Vapor Deposition) finishes, resulting in long-lasting corrosion-resistant performance and a quality feel.
The Truth® 40.94 Series curved handleset comes in various function types (non-keyed, keyed, dummy), and this listing is for the non-keyed variation. The escutcheon design allows for a comfortable grip, while the robust mounting screws ensure secure attachment to the door panel.
Technical Information
- Function: Non-Keyed, with inside thumbturn

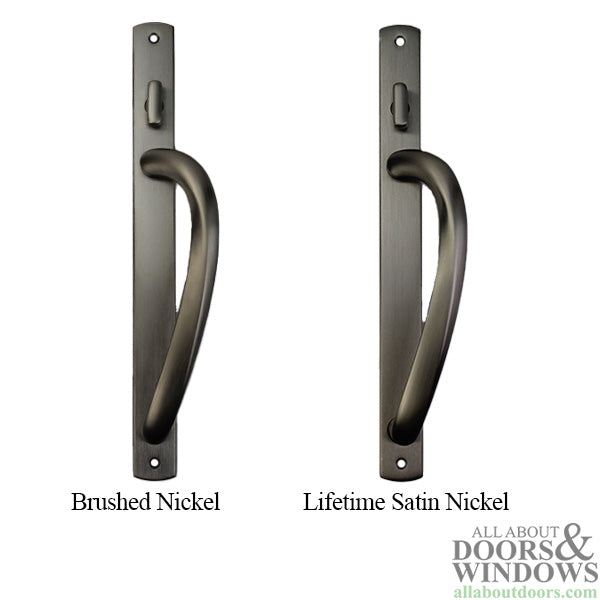

- Color / Finish: White, Faux Bronze, Lifetime Brushed/Satin Nickel
- Material: Aluminum (painted finishes), Brass (premium PVD finishes)
- Escutcheon Plate Width: 1-1/4" (31.8mm)
- Escutcheon Plate Length: 13" (330.2mm)

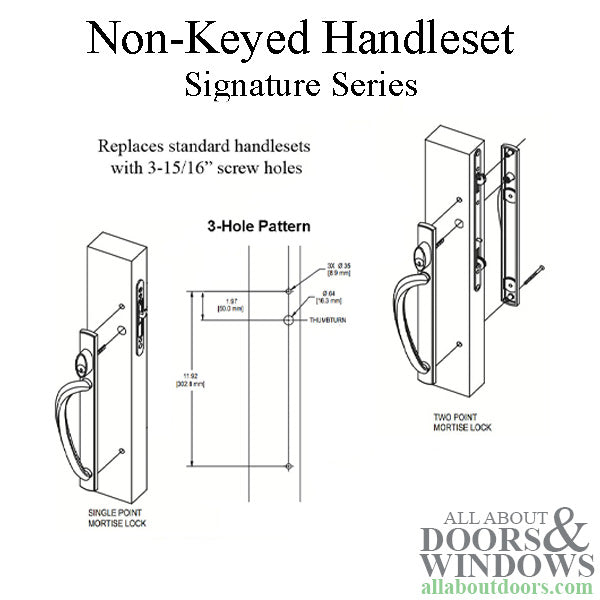

- Installation Screw Holes: 11-15/16" (302.8mm) spacing
- Standard Handle Screw Holes: 3-15/16" spacing
- Handle Screw Holes: 7-3/8" spacing
- Installation Screws: 8-32
- Handle Mounting Screws: 10-32 x 3/8"
- Thumb turn to Top Installation Hole: 2" (50.8mm)
Notes
- You will need to drill additional holes in your door to accommodate the bottom screw for proper installation.
- Compatible as a replacement for standard handle sets with 3-15/16" screw hole spacing.
- Colors may vary slightly due to monitor settings and finish batch variations.
Sold individually. Please carefully measure your existing hardware and door screw hole spacing to ensure correct fit before ordering. Accurate measurement is essential to avoid returns and ensure compatibility.
