Truth #41011 Maxim Dual Arm Operator, Hurd Casement LH

Truth® Maxim Dual Arm Operator for Hurd Casement Windows, Left Hand

This is a Truth® 50.00 Maxim dual arm operator designed for left-hand casement windows. It is used to open and close casement windows and is commonly found on Hurd®, Weather Shield®, Great Lakes®, and other window brands with glass widths of 19" (482.6mm) or more. This operator features a 10" (254.0mm) long main arm with a stud designed to connect to a square plastic shoe, making it ideal for various residential window configurations that use this hardware style.

The long arm is offset up, while the link arm measures 4-7/8" (123.8mm) from rivet center to rivet center and features a down offset. This makes the operator well-suited for windows that require precise movement and support. The left-hand orientation is determined when viewed from outside the home.

Available in several colors and finishes including white, gold, bronze, and chestnut bronze to help match your existing window hardware. Please note color availability before ordering, as pictured examples are for reference only.

Stamped With

• Truth® #41011 marked on the long arm

Technical Information

• Original Manufacturer SKU: 50.00
• Main Arm Length: 10" (254.0mm), offset up
• Link Length: 4-7/8" (123.8mm)
• Link Length (rivet center to rivet center): 4-7/16" (112.7mm)
• Link Offset: Down
• Handing: Left hand (as viewed from outside)
• Compatible Brands: Hurd®, Weather Shield®, Great Lakes®, and others

Notes

• This part is limited to current inventory. When out of stock, see replacement options below.
• Available finishes: White, Gold, Bronze, Chestnut Bronze (check images and availability).

Replaces / Replaced by

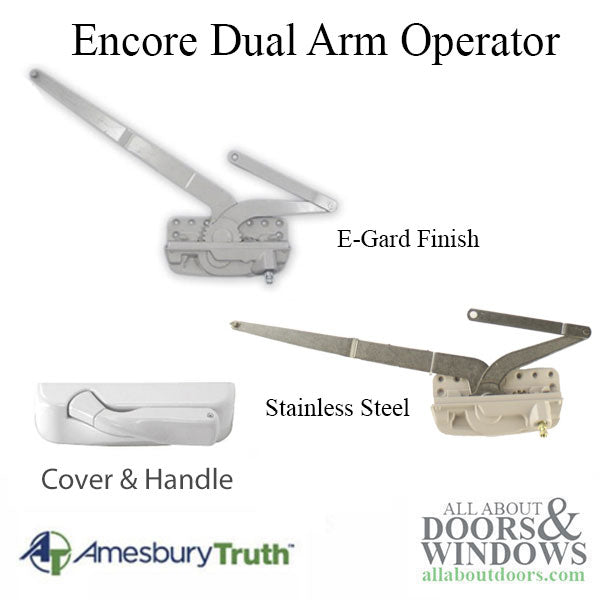

• If unavailable, replace with Encore 50.10.00-LH and 55309.

Parts are sold individually and quantity guidance depends on your window needs. Always measure your existing hardware carefully to ensure a correct fit before ordering. Proper measurement of your original operator is strongly recommended to reduce the chance of returns.
