Right Hand Truth Maxim 50.70 Series Reverse Dyad Casement Window Operator

Regular price
$23.95
Regular price
Sale price
$23.95

Vendor: Amesbury Truth Hardware

Product Type: Hardware

Sku: 50.70-RH-EG-BR

Truth® Maxim 50.70 Series Reverse Dyad Operator, right hand, is designed for narrow casement windows 12"–24" (304.8–609.6mm) wide and up to 72" (1828.8mm) high with a maximum sash weight of 53 lbs. Fits wood or vinyl windows using sill mount applications and is marked with Truth link number 31876. Commonly used with specialty windows—including round, trapezoid, octagon, and more—by manufacturers like SNE®, Crestline®, and Weathershield®; crank handle sold separately.

Apple Pay Google Pay Visa Mastercard Discover

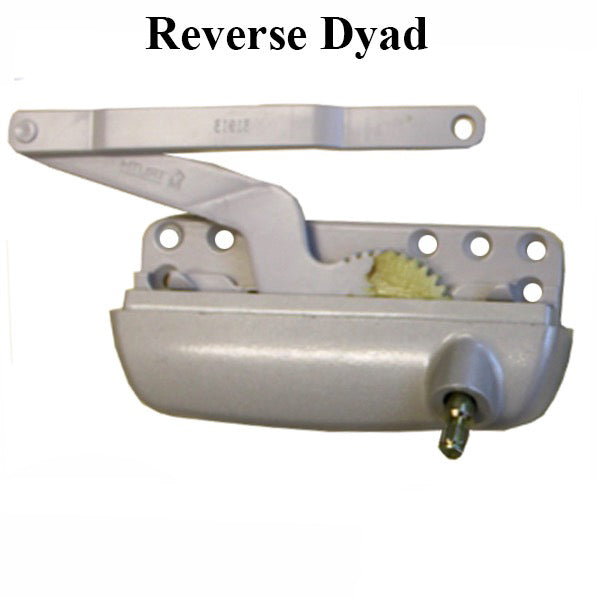

Truth® Maxim 50.70 Series Reverse Dyad Operators, Right Hand

The Truth® 50.70 Maxim Reverse Dyad Arm Operator is designed specifically for narrow casement windows, fitting sizes from 12" to 24" (305mm to 610mm) wide and up to 72" (1829mm) high, with a maximum sash weight of 53 lbs (24 kg). This right-hand operator is suitable for both wood and vinyl windows in sill mount applications, offering reliable operation for various window types including round top, half round, trapezoid, garden, octagon, and windows equipped with butt or 4-bar hinges.

Featuring an offset arm design that moves up, then down, this Reverse Dyad Operator is widely used by several prominent window manufacturers such as SNE®, Crestline®, Hurd®, Bilt Best®, and Weathershield®. The operator body is made from die cast metal with a stamped steel arm, ensuring both durability and smooth functionality. Please note: the contoured crank handle and sealing gasket are both sold separately. This unit does not include a clip, as it is designed to snap on for installation.

The finish is limited to the colors shown for this model. Always verify the handedness (right or left) before ordering, as this product is handed and cannot be reversed in the field.

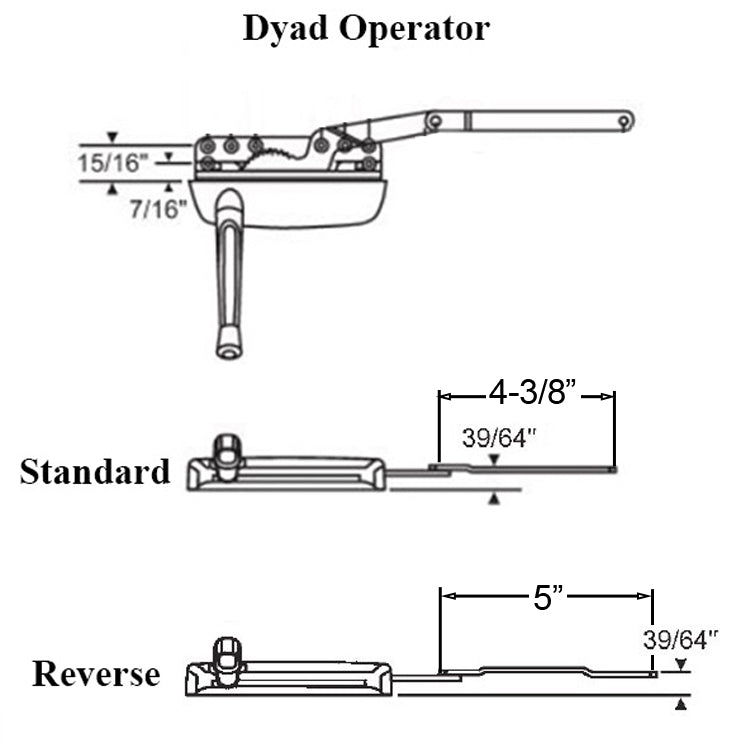

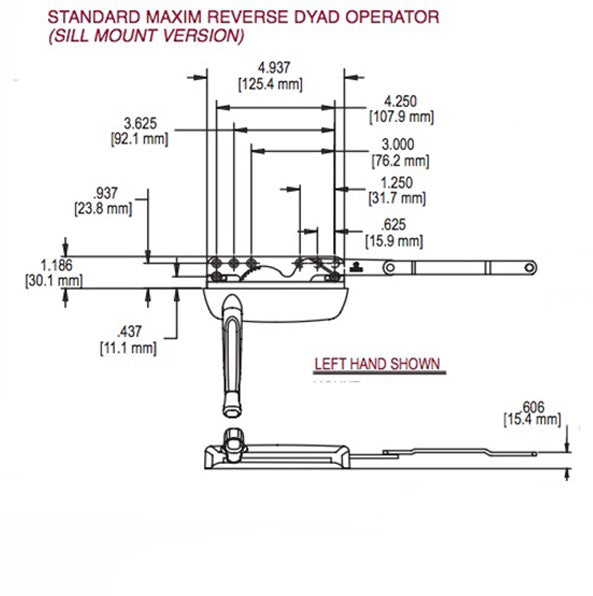

Technical Information

  • Compatible window size: 12" to 24" (305mm to 610mm) wide casements, up to 72" (1829mm) high
  • Maximum sash weight: 53 lbs (24 kg)
  • Arm Link: Offset up - then down
  • Link Length: 5-3/8" (136.5mm)
  • Link Hole Centers: 5" (127mm)
  • Link Height: 39/64" (15.4mm)
  • Clip: None, snaps on
  • Handed: Right hand as shown
  • Material: Die cast body with stamped steel arm
  • Recommended screws: 6 pieces of #8 x 1" (25mm) flat head sheet metal screws (not included)
  • Crank handle & sealing gasket: Sold separately
  • Truth link number: 31876

Notes

  • Used by SNE®, Crestline®, Hurd®, Bilt Best®, Weathershield® and other manufacturers
  • Color/finish is limited to what is shown for this item
  • Check handedness carefully before ordering; this is a right hand operator

Please measure your existing window hardware carefully to ensure correct fit before ordering. Proper measurement is essential to avoid returns and guarantee compatibility.

Shipping Rates (Contiguous U.S.):

  • USPS First Class: $11.95 (5–10 business days)
  • USPS Priority Mail: $12.95 (3–6 business days)
  • UPS Ground: $17.50 (2–5 business days)

Prices apply to most orders under 4 lbs. Heavier or bulky items may cost more. We'll always contact you for approval before adjusting shipping costs. We'll also contact you regarding shipping delays, if they occur. Need shipping to Alaska or Hawaii? Call us for a UPS quote.

Packaging & Materials

  • We reuse clean packing materials when possible to reduce waste.
  • Items may be shipped in plain or recycled boxes.
  • Most hardware comes in bulk and may not have retail packaging.
  • All items are brand new unless otherwise noted.

The TruthParts Promise

We carefully inspect all parts before shipping and add extra protection when needed. If you receive an item you didn't purchase, or if something arrives broken or blemished, we’ll repair or replace it — no hassle.

Note: Shipping fees are non-refundable.
