Truth® Maxim 50.70 Series Reverse Dyad operators, Left Hand
- Regular price
- $23.95
- Regular price
-
- Sale price
- $23.95
- Unit price
- per
Vendor : Amesbury Truth Hardware
Product Type : Hardware
Sku : 50.70-LH-EG-BR
Truth® 50.70 Maxim Reverse Dyad Arm Operators are designed for narrow casement windows from 12Inch to 24Inch up to 72Inch high with a maximum sash weight of 53 lbs.
The Reverse Dyad Operator is also used for specialty windows (i.e., round tops, half round, trapezoid, garden, octagon, and windows that use butt hinges or 4-Bar Hinges)
Truth® Maxim Dyad casement operator for Sill mount applications, wood or vinyl windows
Markings: Truth® link number: 31876
Used by SNE®, Crestline®, Hurd®, Bilt Best®, Weathershield® and others
Glass Size: 12 or 24 inch casement window

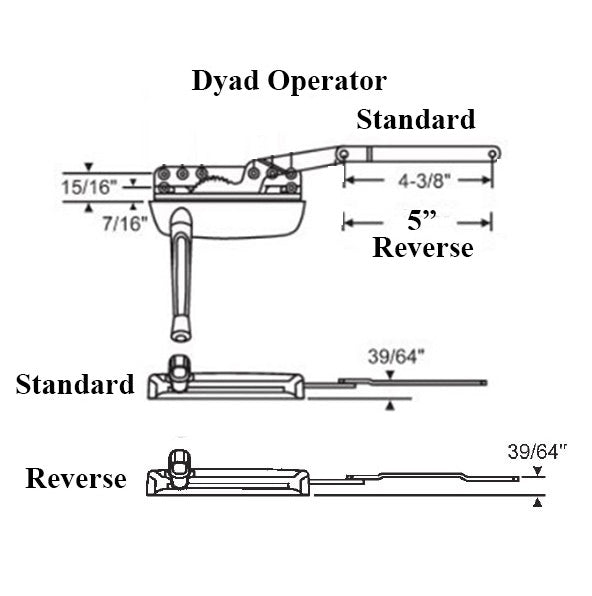

Arm Link: Offset Up - Then Down

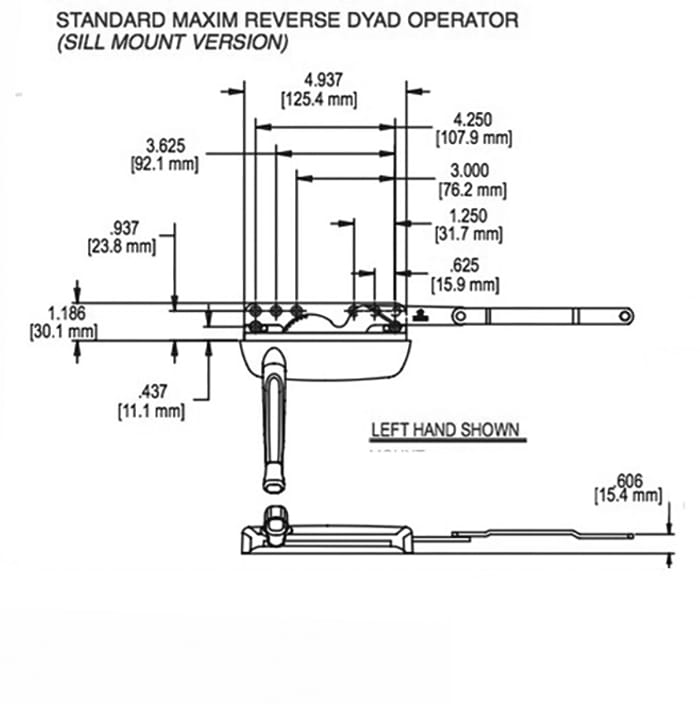

Link Length: 5-3/8 inch
Link Hole Centers: 5 inch
Link Height: 39/64 inch (15.4 mm) .606
Clip: None, Snaps on

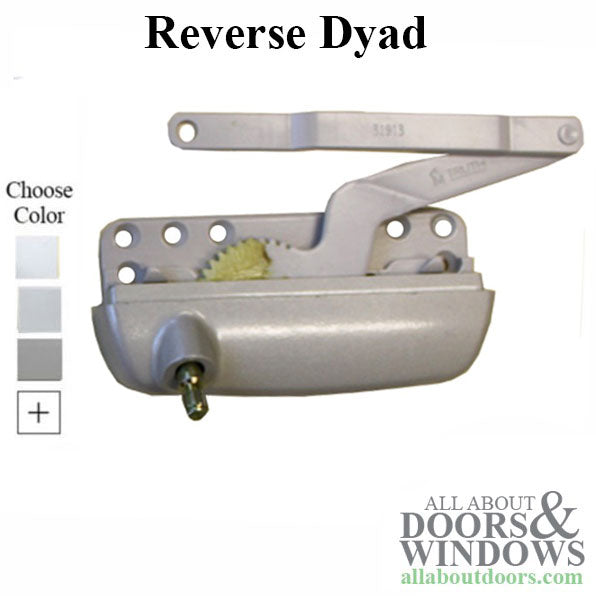

Color/Finish: Limited to colors shown
Handed: Yes, as shown
The Reverse Dyad Operator is also used for specialty windows (i.e., round tops, half round, trapezoid, garden, octagon, and windows that use butt hinges or 4-Bar Hinges)
Truth® Maxim Dyad casement operator for Sill mount applications, wood or vinyl windows
Markings: Truth® link number: 31876
Used by SNE®, Crestline®, Hurd®, Bilt Best®, Weathershield® and others
Glass Size: 12 or 24 inch casement window
Arm Link: Offset Up - Then Down
Link Length: 5-3/8 inch
Link Hole Centers: 5 inch
Link Height: 39/64 inch (15.4 mm) .606
Clip: None, Snaps on
Color/Finish: Limited to colors shown
Handed: Yes, as shown
