Truth Ellipse Split Arm Operator 15.30 RH Straight 4-1/2" Link Casement
- Regular price
- $19.95 - $24.44
- Regular price
- $19.95
- Regular price
-
- Sale price
- $19.95
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type:
Sku: 15.30-ELL-RH-EG-CAM
Truth 15.30 Ellipse right-hand split arm casement operator with straight 4-1/2" link mounted on top, sill mount style. Used on Weather Shield Visions 2000 and other wood or vinyl casement windows. Replacement is Truth #50.60.00.212. Crank handle and screws not included.
Couldn't load pickup availability

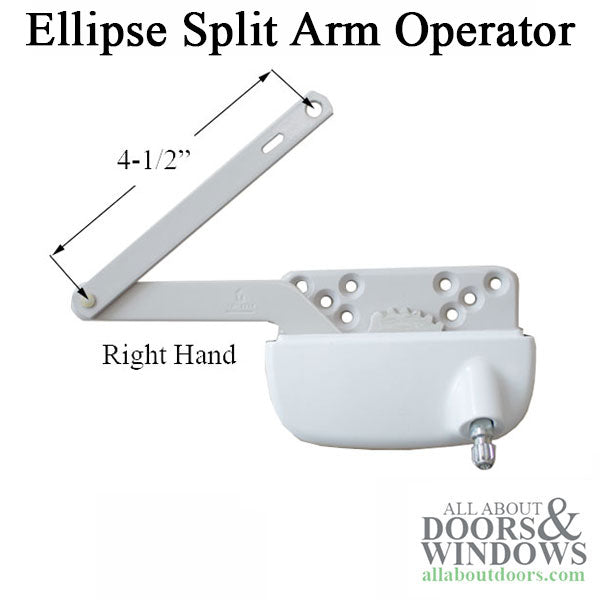

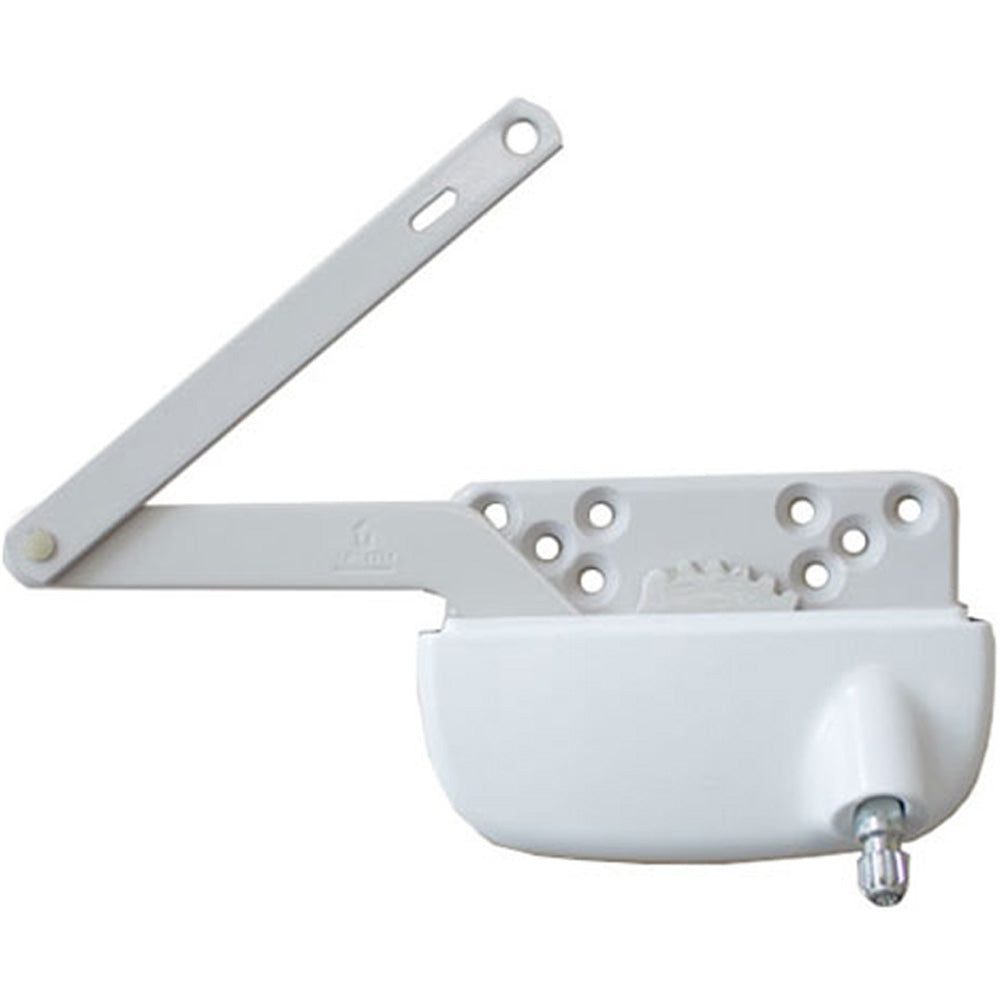

Truth Ellipse Split Arm Operator - Right Hand, Straight 4-1/2" Link
Truth 15.30 Ellipse style split arm casement window operator, right hand. Sill mount design used across multiple window manufacturers, including Weather Shield Visions 2000 vinyl casement windows. Suitable for wood or vinyl casement windows.
Note: This product has been discontinued by Truth. The replacement operator is Truth part #50.60.00.212. Additional components required for the replacement include Cover/Handle #55309 and Stud/Snap-On Bracket #551093.
Specifications:
- Brand: Truth
- Operator Style: Ellipse

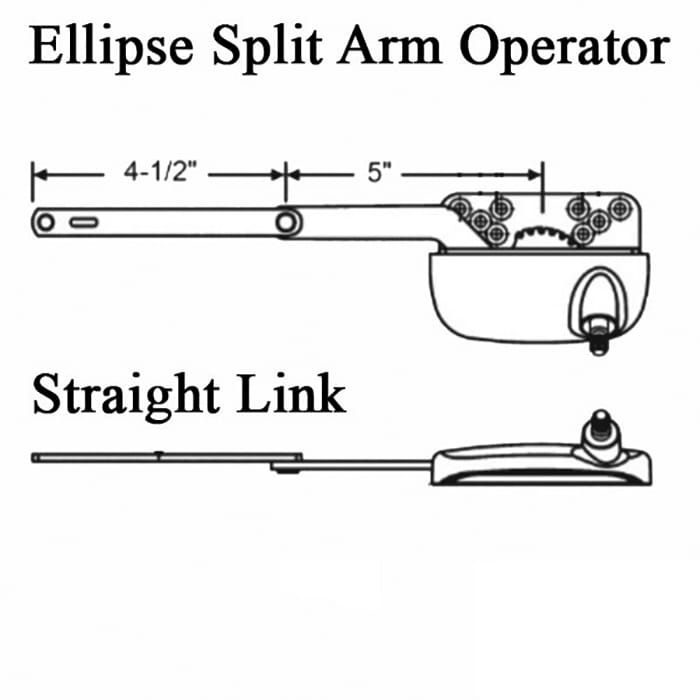

- Operator Type: Split Arm with Straight Link
- Application: Casement windows, Sill Mount
- Window Type: Wood or Vinyl
- Arm Length: 5 inch
- Link Length (Rivet to Stud Post Hole): 4-1/2 inch
- Link Mount: Mounted on top of main arm
- Detach Clip: None
- Handed: Right Hand

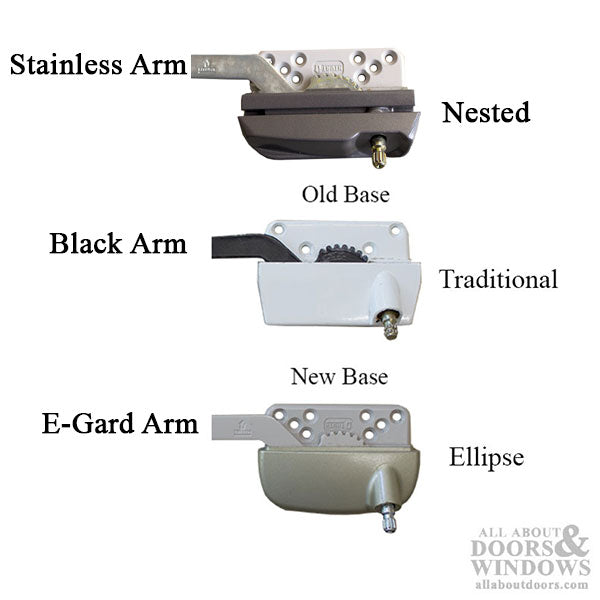

- Material: Zinc Die Cast Body with E-Gard or Stainless Steel Arms

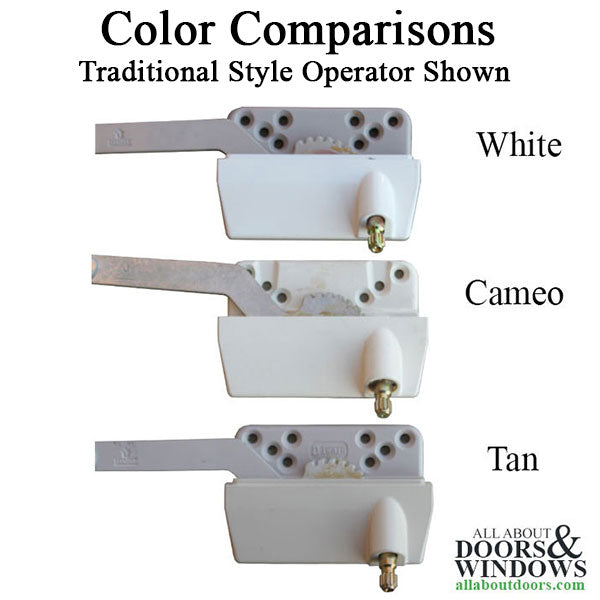

- Color: Limited to existing shown
Markings:
- Main Body: Truth #45251
- Main Arm: #40351
- Straight Arm Link: Truth #31850
Package Contents:
- One (1) Truth Ellipse Split Arm Operator, Right Hand
- No screws or crank handle included
Notes:
- There are 4 arm/link configurations for this Truth window crank operator:
- 1. Straight link mounted on top, No Clip
- 2. Offset link, mounted on bottom - 15/64" Offset, No Clip
- 3. Offset link, mounted on bottom - 7/16" Offset, No Clip
- 4. Offset link, mounted on bottom - 49/64" Offset, Detach Clip
- This listing is for configuration #1 (Straight link mounted on top, No Clip).
- Related crank handles (sold separately): 55311 Standard Crank Handle, 55317 Contour Crank Handle, 55312 Folding Handle, 55313 T-Handle
