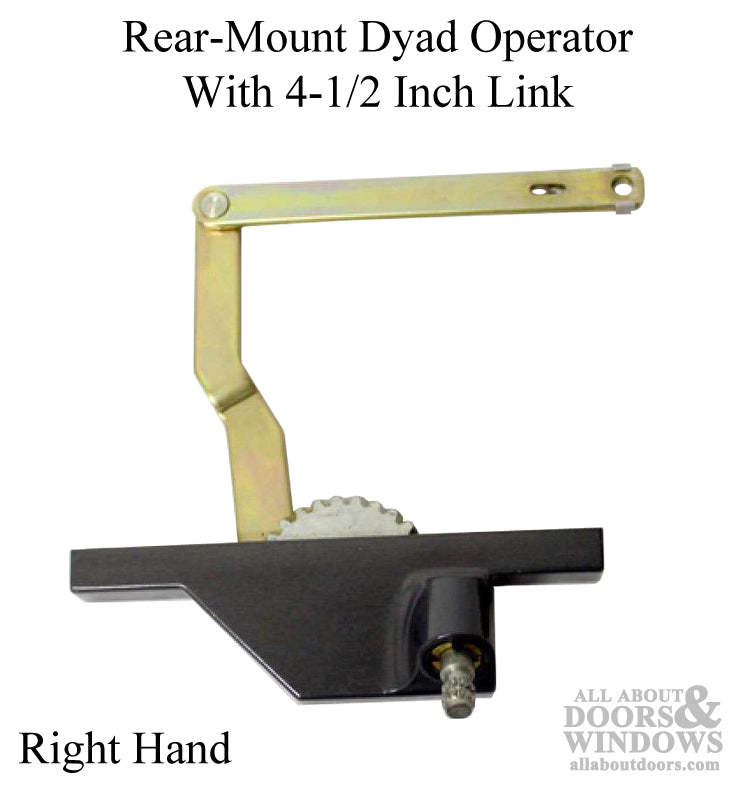

Right Hand Truth Dyad Operator #30866, Rear Mount, 4.5" Holes, Chestnut Bronze

Truth® Dyad Operator, Rear Mount, Right Hand, Chestnut Bronze – 4-1/2" Hole Spacing

This Truth® Dyad Operator is designed for rear mounting on casement windows requiring a right-hand operation. The OFFSET main arm features a 1/8" (3.2mm) upward offset, providing the necessary clearance for specific window profiles. The flat link arm measures 4-1/2" (114.3mm) from the center of the rivet to the center of the hole, with an overall flattened length of 5" (127.0mm). This operator is finished in a dark chestnut bronze color to blend with a variety of window designs and hardware finishes.

Rear mount screw holes are spaced 5" (127.0mm) apart for secure attachment. The detach clip is located on the underside and can be reversed as needed, offering versatility during installation or replacement. This product is compatible with windows that specify the use of a flat link arm marked #30866, ensuring a proper fit if you are replacing an existing operator with this marking.

Technical Information

• Main Arm Offset: 1/8" (3.2mm) upward
• Link Arm Length (center to center): 4-1/2" (114.3mm)
• Link Arm Overall Length: 5" (127.0mm), flat
• Rear Mount Screw Spacing: 5" (127.0mm) apart
• Handing: Right Hand
• Finish: Dark Chestnut Bronze
• Marking: Flat link #30866

Notes

• Check your existing operator for "Flat link #30866" stamped on the link arm to ensure proper replacement.
• Color is a dark chestnut bronze – verify with existing hardware if color consistency is preferred.

This hardware is sold individually. Please confirm compatibility and measure your existing operator and mounting holes carefully to ensure the correct fit before ordering. Proper measurement is essential for a successful replacement.
