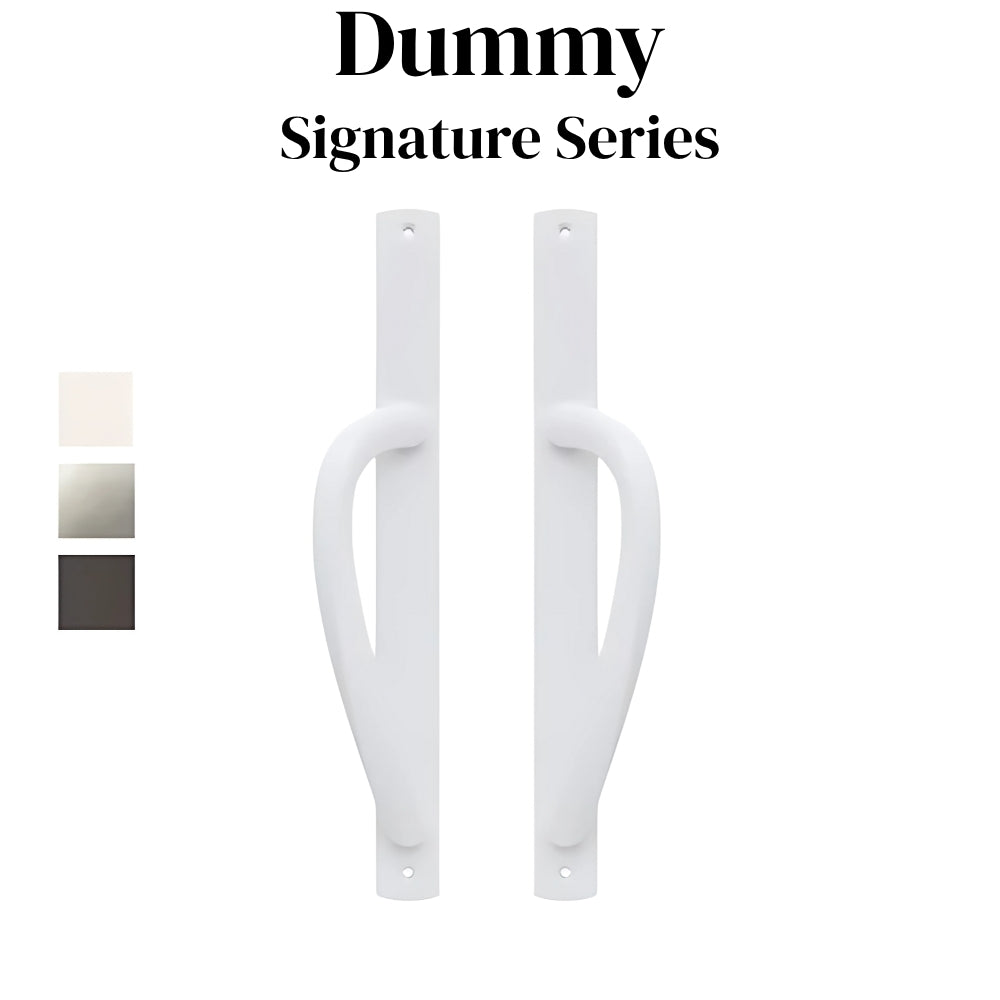

Truth Dummy Curved Top Sliding Door Handleset Trim, White, 3-15/16" Screw Spacing

Truth Dummy Curved Top Sliding Door Handleset Trim - White

This Truth Dummy curved top sliding door handleset trim in white is designed for sliding patio doors equipped with handles that share a standard 3-15/16" (100.0mm) screw hole spacing. It is part of the Signature Series, offering a clean, curved top design for a modern appearance. This trim set is suitable for both single and dual locking two-point lock mechanisms and can replace hardware on doors from many manufacturers, including Andersen, provided the mounting dimensions match.

This handleset trim is dummy/fixed-function, meaning the handles do not operate a latch or lock—they are stationary and best used on inactive panels or as pulls where no locking is needed. While the design is compatible with non-keyed and keyed functions in the same series, this listing is for the dummy (non-operable) configuration only.

It comes in a white painted aluminum finish, and applications requiring a perfect fit may need an additional drilled hole to accommodate the bottom screw placement. Assorted screws are included to accommodate a variety of door thicknesses and ensure secure installation.

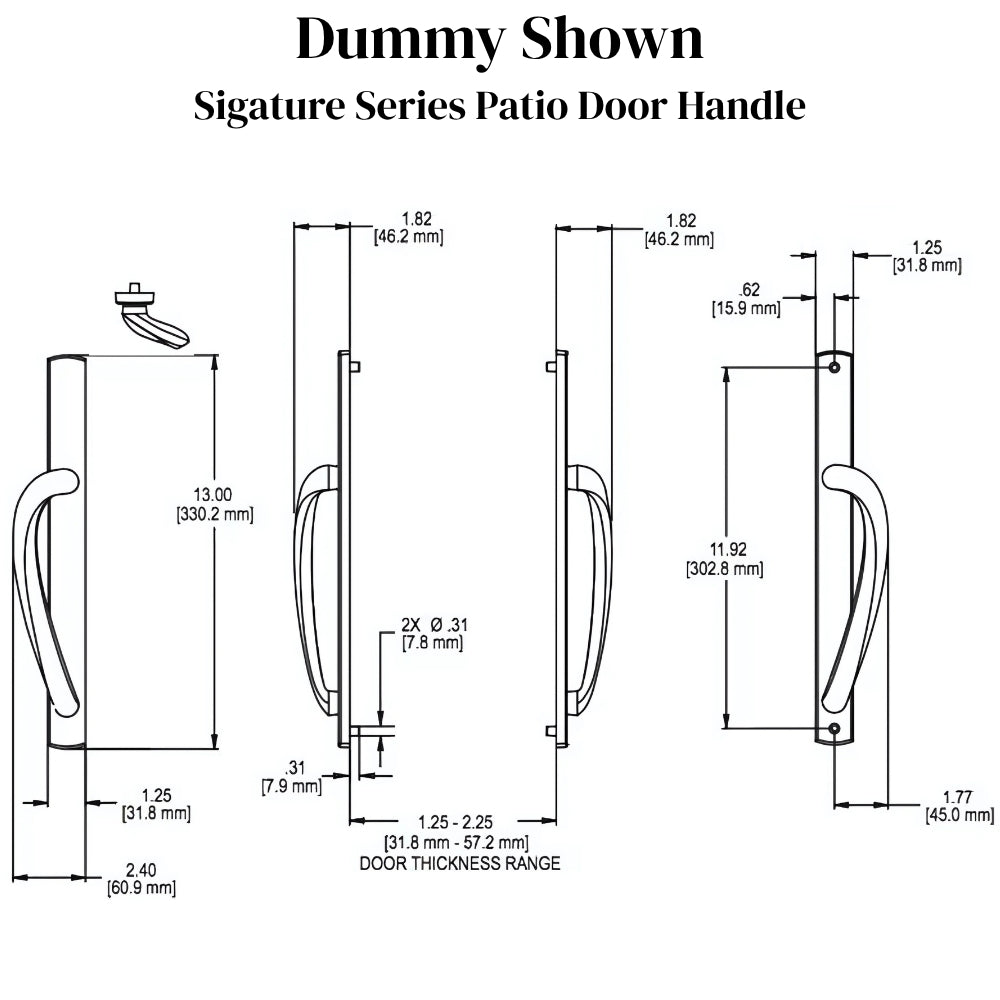

Technical Information

• Color / Finish: White painted aluminum
• Escutcheon Plate Width: 1-1/4" (31.8mm)
• Escutcheon Plate Length: 13" (330.2mm)
• Main Screw Hole Spacing: 3-15/16" (100.0mm) between handle screws
• Installation Screw Holes: 11-15/16" (302.8mm)
• Handle Mounting Screw Holes: 7-3/8" (187.3mm)
• Thumb Turn to Top Installation Hole: 2" (50.8mm)
• Installation Screws: #8-32 (main), #10-32 x 3/8 (handle)
• Material: Aluminum
• Door Thickness Range:
  • 1-3/16" – 1-9/16" (30.2 – 39.7mm) uses 1-3/4" (44.5mm) screw
  • 1-9/16" – 1-15/16" (39.7 – 49.2mm) uses 2-1/8" (54.0mm) screw
  • 1-15/16" – 2-5/16" (49.2 – 58.7mm) uses 2-1/2" (63.5mm) screw

Notes

• This trim is for dummy/fixed handle use only (not operable, no locking or latching).
• Signature Series, curved top style.

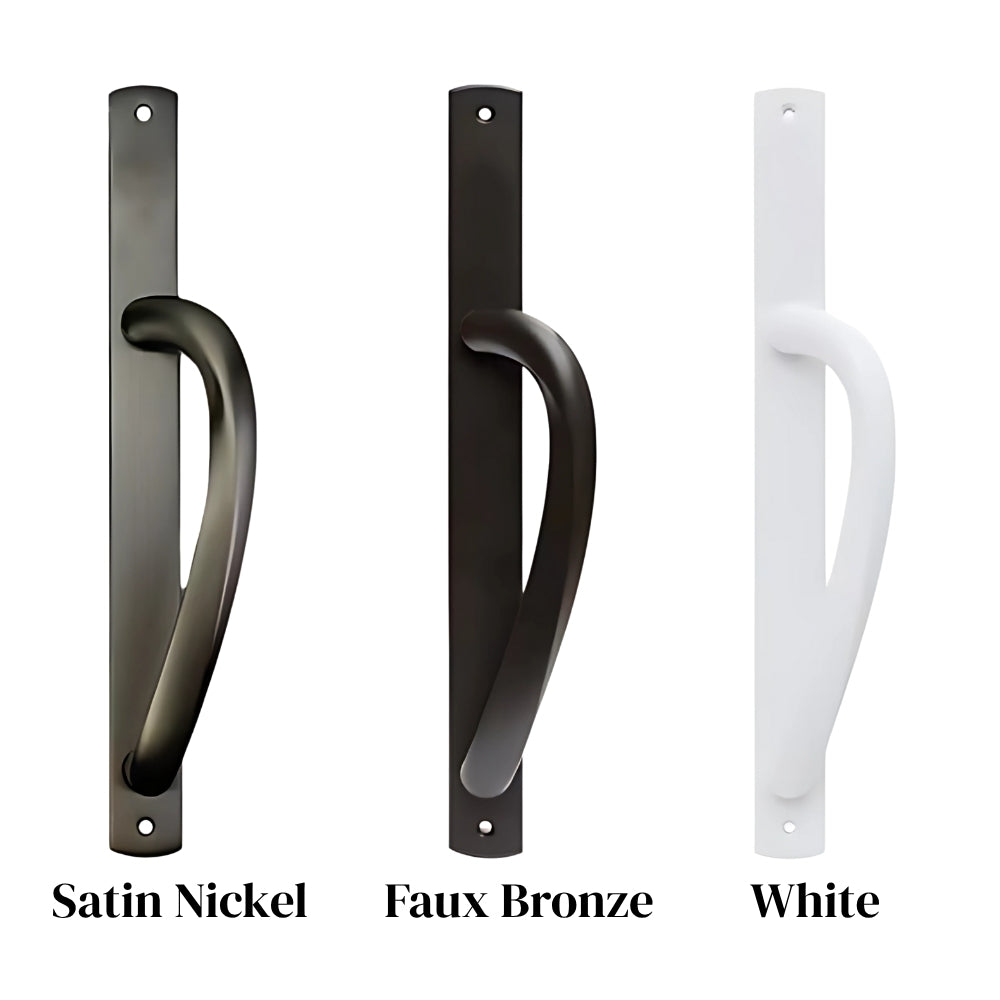

• Available finishes include White and Faux Oil Rubbed Bronze (this item is White).
• Some doors may require an extra drilled hole for correct fit.

Replaces / Replaced by

• Direct replacement for many standard sliding door handle trims using 3-15/16" screw spacing, including some Andersen and other common brands.

This product is sold as a single handleset trim. Assorted mounting screws are included to fit a range of door thicknesses. Always measure your existing door hardware and screw hole spacing carefully before ordering to ensure a correct fit. Measuring your existing hardware is essential to avoid returns and ensure compatibility.
