Dummy Curved Top Sliding Door Handleset Trim – Lifetime Satin Nickel

Truth Dummy Curved Top Sliding Door Handleset Trim – Lifetime Satin Nickel (PVD)

This Truth Dummy curved top sliding door handleset trim is part of the Signature Series and comes in a durable Lifetime Satin Nickel (PVD) finish. Designed as a non-operable (dummy) handle set, it is intended for sliding patio doors where a pulling handle is required but no latching or locking function is needed. This handleset trim fits many doors that use standard 3-15/16" (100.0mm) screw hole spacing, including popular models from Andersen, making it a versatile replacement for a range of sliding door brands.

Constructed from aluminum for painted finishes, this trim set is engineered for reliability and ease of installation. It accommodates both single and dual locking 2-point lock sliding doors. In some applications, an additional hole may need to be drilled in the door to fit the bottom screw.

The curved top design adds a refined look that complements modern and traditional décor. The handleset is available in multiple finishes, including Faux Oil Rubbed Bronze and White, ensuring a good visual match with most door frames.

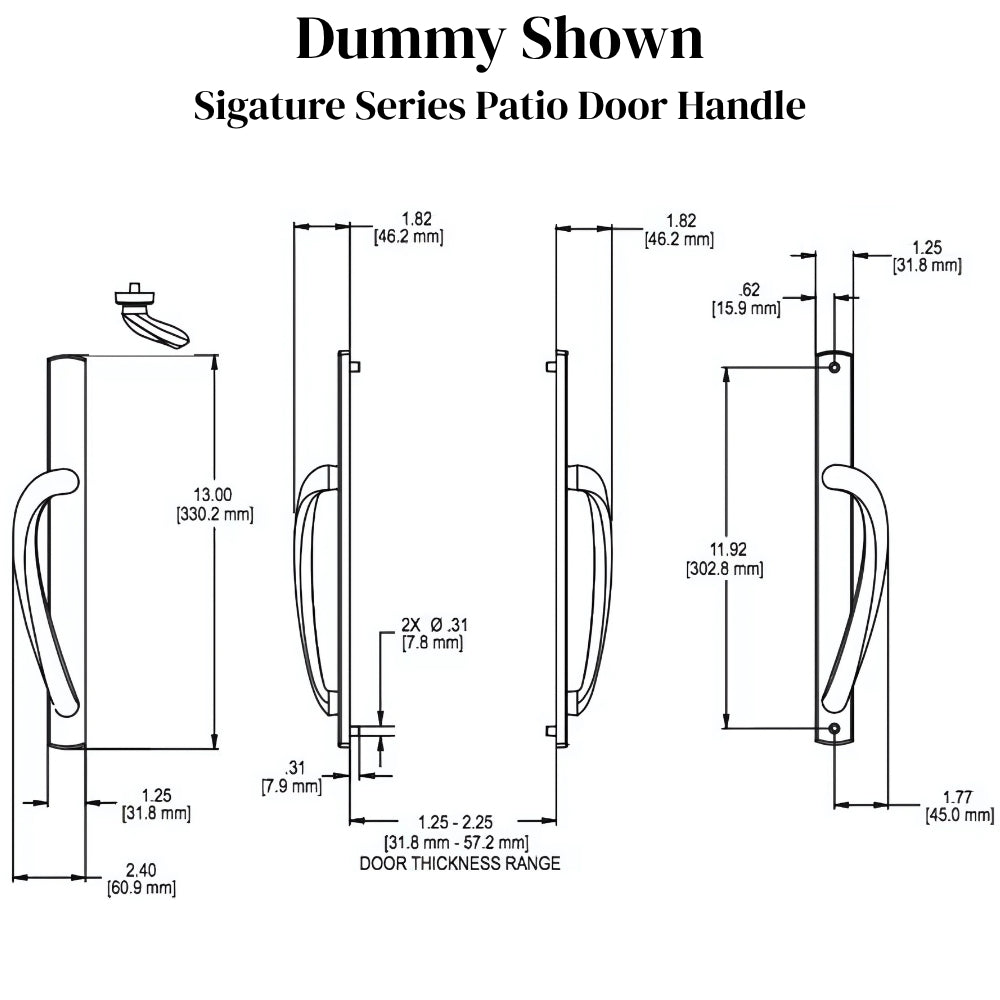

Technical Information

• Function: Dummy, fixed handles
• Color/Finish: Lifetime Satin Nickel (PVD); other options are Faux Oil Rubbed Bronze or White
• Material: Aluminum (for painted finishes)
• Escutcheon Plate Width: 1-1/4" (31.8mm)
• Escutcheon Plate Length: 13" (330.2mm)
• Handle Mounting Screw Holes: 7-3/8" (187.3mm)
• Mounting Screws Included: 10-32 x 3/8"
• Installation Screw Holes: 11-15/16" (302.8mm)
• Installation Screws: 8-32
• Thumb Turn to Top Installation Hole: 2" (50.8mm)
• Door Thickness Compatibility:
• 1-3/16" to 1-9/16" (30.2mm to 39.7mm): 1-3/4" (44.5mm) screw
• 1-9/16" to 1-15/16" (39.7mm to 49.2mm): 2-1/8" (54.0mm) screw
• 1-15/16" to 2-5/16" (49.2mm to 58.7mm): 2-1/2" (63.5mm) screw

Notes

• Replaces many styles and brands, including Andersen sliding patio door handlesets with standard 3-15/16" screw hole spacing.
• Includes assorted screws for various door thicknesses.
• Some installations may require drilling an additional hole to accommodate the bottom screw.
• Available in other finishes by request (Faux Oil Rubbed Bronze, White).

Please ensure you measure your existing door hardware and screw spacing carefully before placing your order to guarantee a correct fit. Accurate measurement of your current handleset and hole centers is essential to reduce returns and ensure compatibility.
