Truth Dummy Curved Top Sliding Door Handleset Trim – Faux Oil Rubbed Bronze

Truth Dummy Curved Top Sliding Door Handleset Trim – Faux Oil Rubbed Bronze

The Truth Dummy Curved Top Sliding Door Handleset Trim in faux oil rubbed bronze provides a replacement trim solution for sliding glass doors that use Signature Series curved top hardware. Designed as a dummy, fixed handleset, this trim does not include a locking or keying function, making it suitable for inactive door panels or locations where only a pull handle is required.

This handleset trim is compatible with many sliding door brands, including Andersen, and is designed to fit standard 3-15/16" (100.0mm) screw hole mounting patterns. It works with both single and dual 2-point locking mechanisms, though note that some doors may require an additional hole drilled to accommodate the bottom screw. The durable aluminum construction and painted faux oil rubbed bronze finish offer resistance to wear and weather, adding a subtle style upgrade to your existing door hardware.

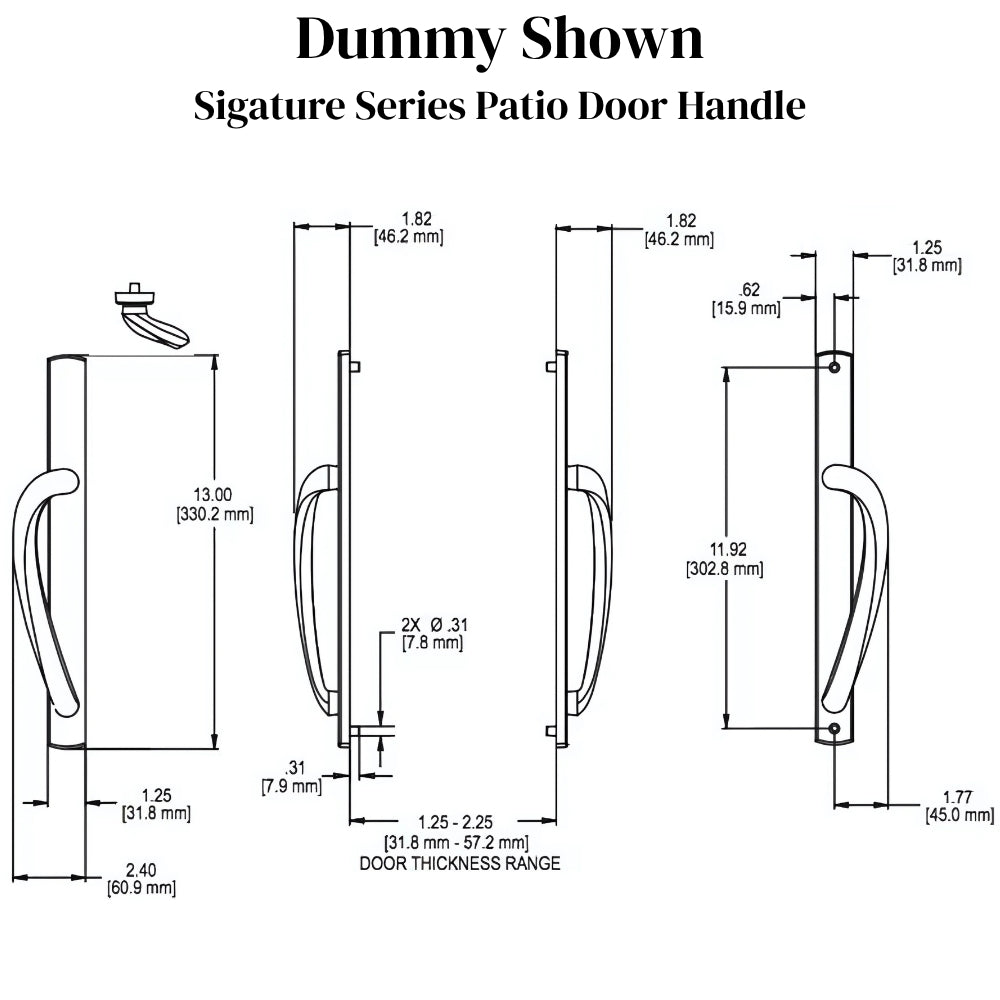

Technical Information

• Color / Finish: Faux Oil Rubbed Bronze or White
• Escutcheon Plate Width: 1-1/4" (31.8mm)
• Escutcheon Plate Length: 13" (330.2mm)
• Installation Screw Holes, Center-to-Center: 11-15/16" (302.8mm)
• Handle Mounting Screw Holes, Center-to-Center: 7-3/8" (187.3mm)
• Installation Screws: 8-32 (includes assorted lengths)
• Handle Mounting Screws: 10-32 x 3/8
• Thumb Turn to Top Installation Hole: 2" (50.8mm)
• Material: Aluminum (for painted finishes)

Door Thickness Range

• 1-3/16" – 1-9/16" (30.2 – 39.7mm) uses 1-3/4" (44.5mm) screw
• 1-9/16" – 1-15/16" (39.7 – 49.2mm) uses 2-1/8" (54.0mm) screw
• 1-15/16" – 2-5/16" (49.2 – 58.7mm) uses 2-1/2" (63.5mm) screw

Notes

• Some installations require drilling an extra hole to accommodate bottom screw placement.
• Compatible as a replacement for many curved top sliding door handlesets, including several Andersen models with a 3-15/16" (100.0mm) screw hole center-to-center pattern.
• This trim is not functional as a keyed or locking handle; it is a dummy/fixed pull for non-active panels or decorative purposes.

Each handleset trim includes assorted mounting screws for different door thicknesses. Please measure your existing hardware and mounting hole locations carefully to ensure the correct fit before ordering.
