Truth Dummy curved top sliding Door Handle set Trim - Brushed/Satin Nickel
Signature Series Curved Top Sliding Door Hardware
Replaces many styles and brands including Anderson and doors with standard 3-15/16" screw hole handle sets.
Some applications may need to drill additional hole in door to accommodate bottom screw
Used on single and dual locking 2-point lock mechanisms.
This style of handle has 3 functions:
- Non-Keyed
- Keyed, Schlage SC1, Optional Kwikset / Weiser keyway
- Dummy
Function: Dummy, Fixed Handles
- Color / Finish: Faux Oil Rubbed Bronze or White

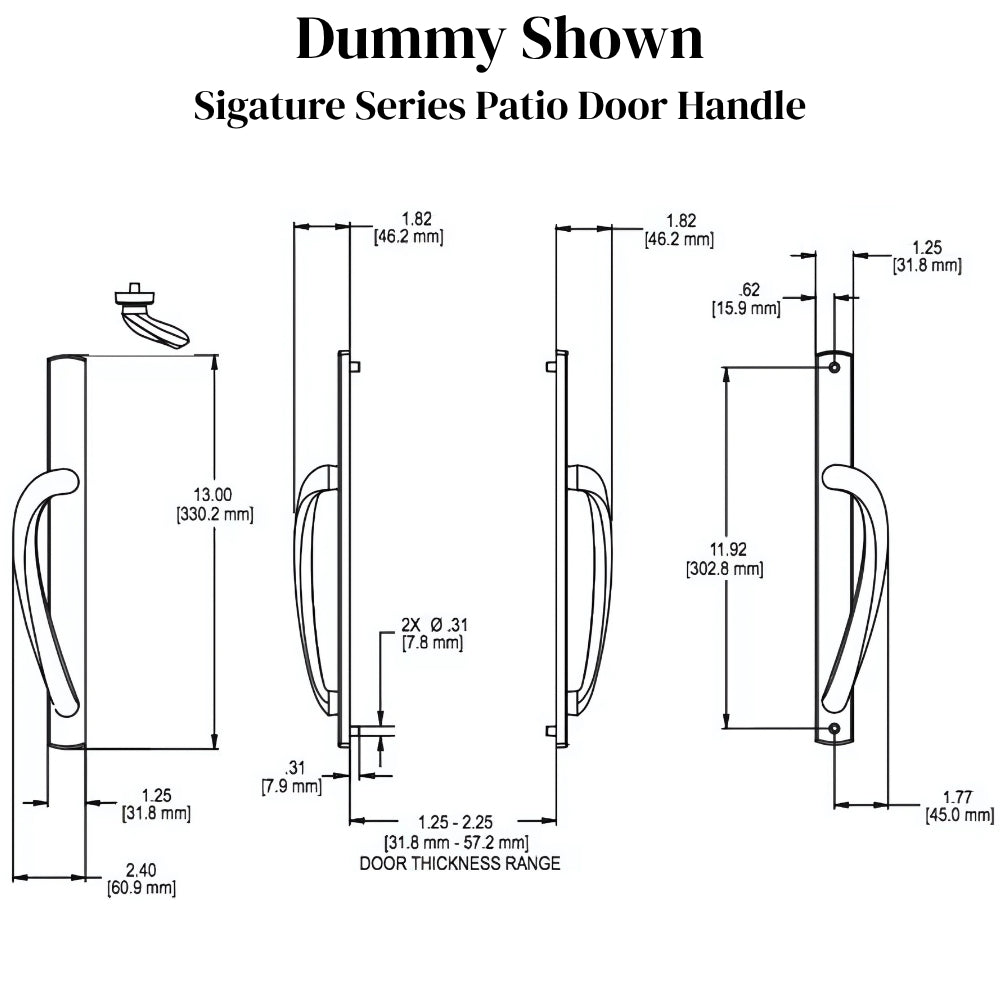

- Installation Screw Holes: 11-15/16 inch (302.8mm)
- Installation Screws: 8-32
- Escutcheon Plate Width: 1-1/4 inch (31.8mm)
- Escutcheon Plate Length: 13 inch (330.2mm)
- Handle mounting screw holes: 7-3/8 inch
- Handle Mounting Screws: 10-32 x 3/8
- Thumb turn to top Installation hole: 2 inch
- Material: Aluminum - for Painted Finishes
Door thickness range: Comes with assorted screws
- 1-3/16 - 1-9/16 thick uses 1-3/4 inch screw
- 1-9/16 - 1-15/16 thick uses 2-1/8 inch screw
- 1-15/16 - 2-5/16 thick uses 2-1/2 inch screw
