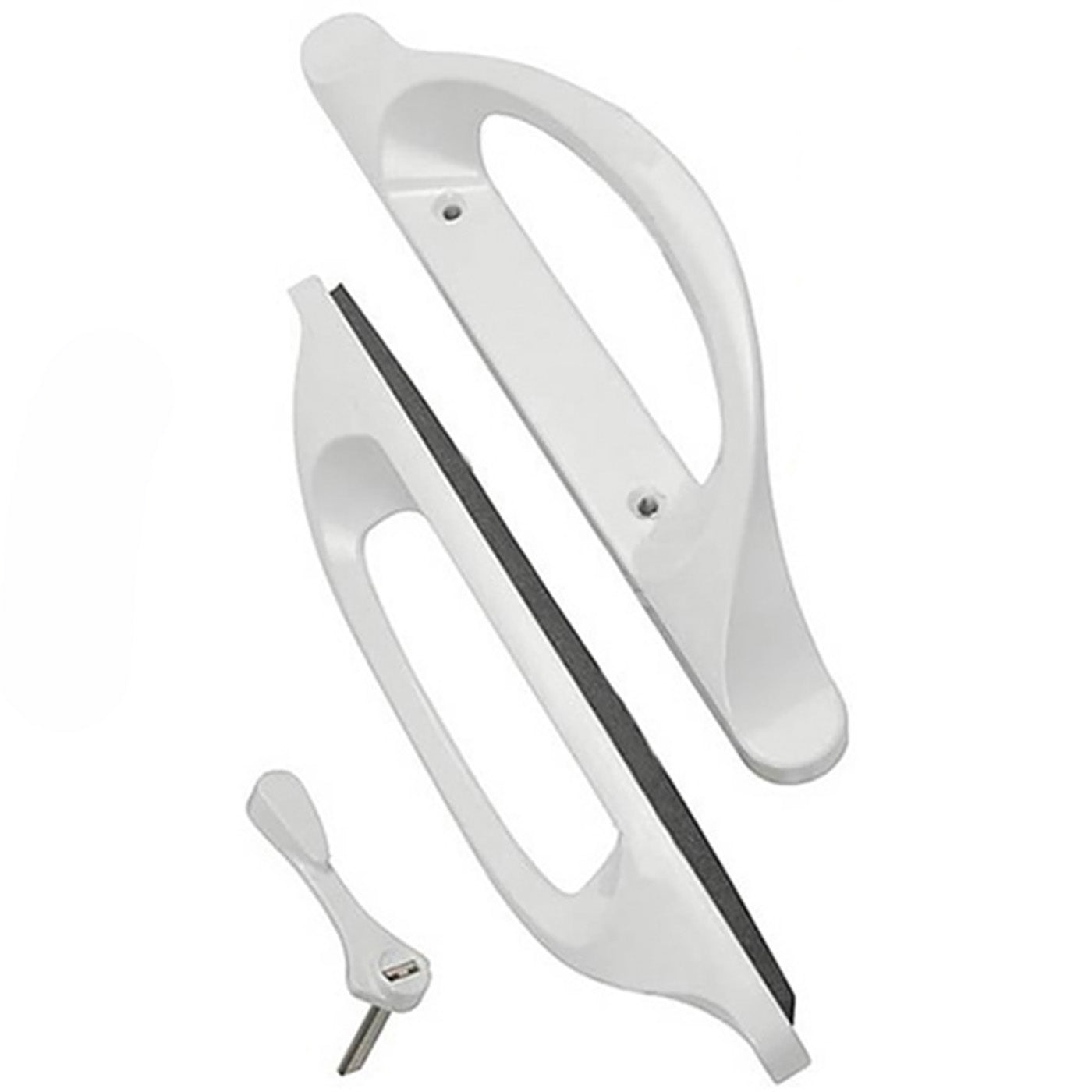

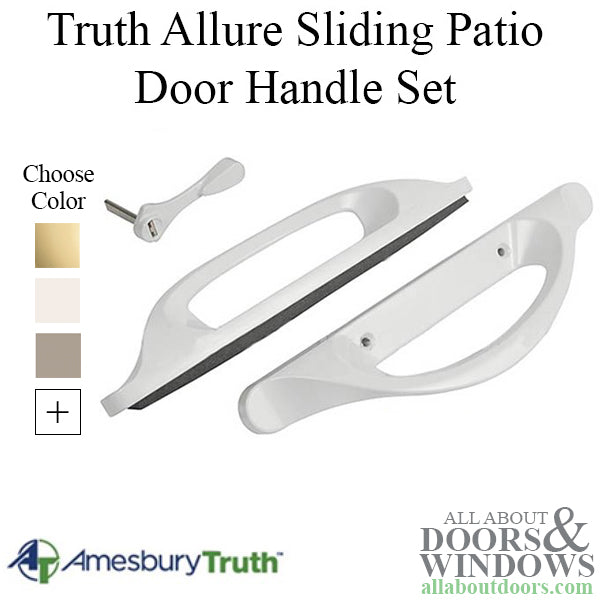

Truth Allure Patio Door Handle Set 3-15/16" Non-Keyed - 40.85.100

Truth Allure Non-Keyed Sliding Patio Door Handle Set - 3-15/16" Screw Holes

The Truth Allure Patio Door Handle Set is a clean, modern replacement handle for many sliding patio doors. It is a common fit for Silverline vinyl patio doors as well as many other sliding glass doors using the same 3-15/16" (100.0mm) screw hole spacing.

This is the non-keyed version of the Allure handle set. It uses a thumb latch on the interior for operation and does not include an exterior key cylinder.

The set is non-handed, so it can be installed on left- or right-sliding doors. It is also compatible with doors that use either a centered or offset thumb latch location.

Technical Information

• Original Manufacturer SKU: 40.85.100
• Style: Allure sliding patio door handle set
• Keyed: No (non-keyed)

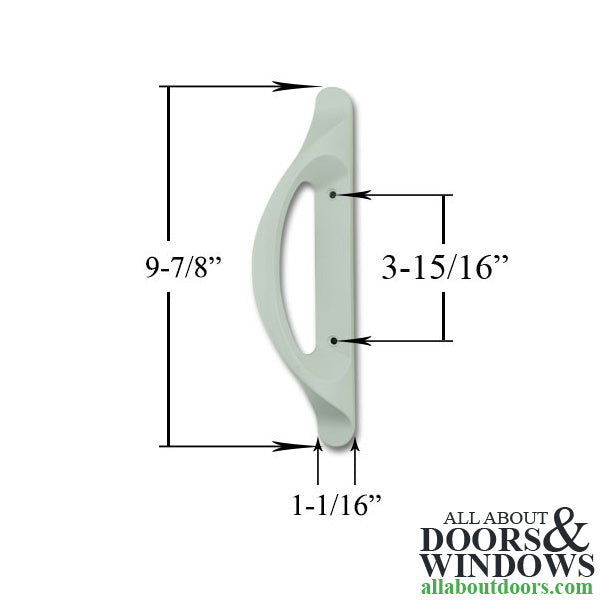

• Screw Hole Spacing: 3-15/16" (100.0mm)

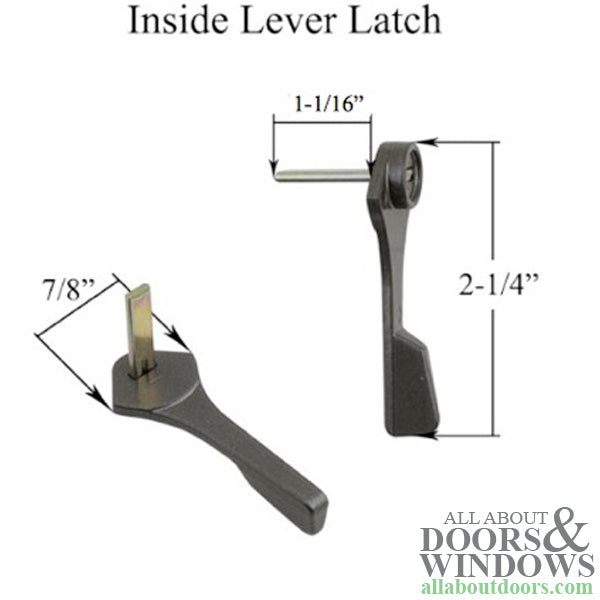

• Thumbturn Tailpiece Length: 1-1/16" (27.0mm)
• Handing: Non-handed (left or right)
• Thumb Latch Position: Works with centered or offset latches

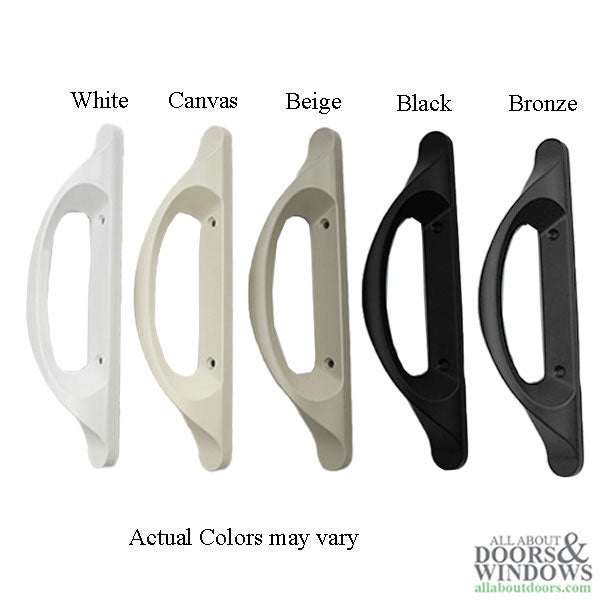

• Available Colors: Creamy White, Faux Oil-Rubbed Bronze, Tan, Sandtone, Canvas

What's Included

• Inside pull handle
• Outside pull handle (non-keyed)
• Thumb latch
• 6x #8-32 installation screws (two of each length below)

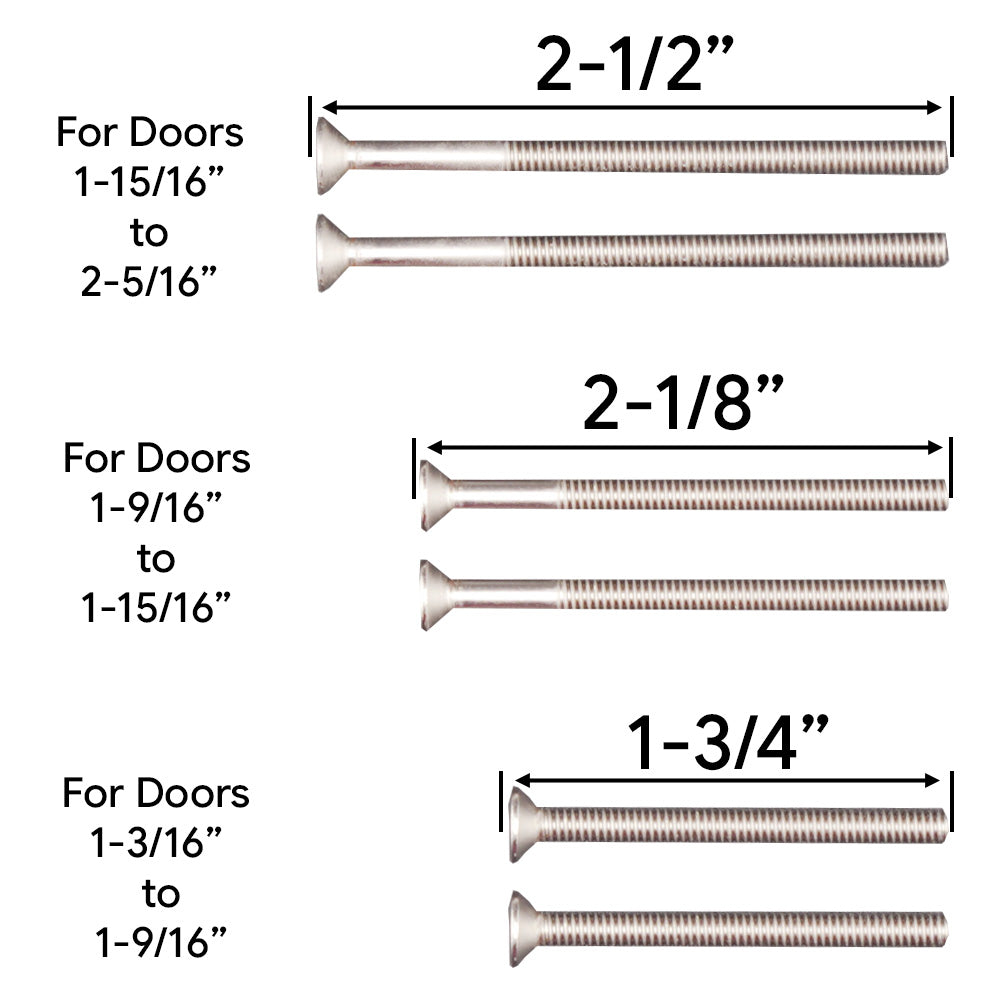

Door Thickness & Screw Compatibility

• Door thickness 1-3/16" to 1-9/16" (30.2mm to 39.7mm): use 1-3/4" (44.5mm) screws
• Door thickness 1-9/16" to 1-15/16" (39.7mm to 49.2mm): use 2-1/8" (54.0mm) screws
• Door thickness 1-15/16" to 2-5/16" (49.2mm to 58.7mm): use 2-1/2" (63.5mm) screws

Notes

Choose your color from the drop-down before adding to cart. Colors may vary slightly between production runs, so compare to your existing hardware if you are matching other pieces on the door.

This set is sold as a complete handle set (one door's worth of hardware). Order one set per door being replaced. Measure your existing hardware, screw hole spacing, and door thickness before ordering to ensure the correct fit.
