Truth Active Sliding Door Handle with Offset Key Cylinder, White, Left Hand

Truth Allure Keyed Patio Door Handle
The Allure Series can be used on active or inactive configurations for OX or XO patio doors.
The low profile handle helps to minimize interference with screens and other door treatments such as curtains and blinds.
The narrow 1" escutcheon adapts nicely to any size door stile and the extended bosses on the inside and outside of the escutcheon enhances the stability of the entire system.

Screw hole spacing: 3-15/16 inches
Length: 9-7/8 inches
Width: 1 inch
Handle Projection: 2-1/2 inches
Color: White or Faux Bronze

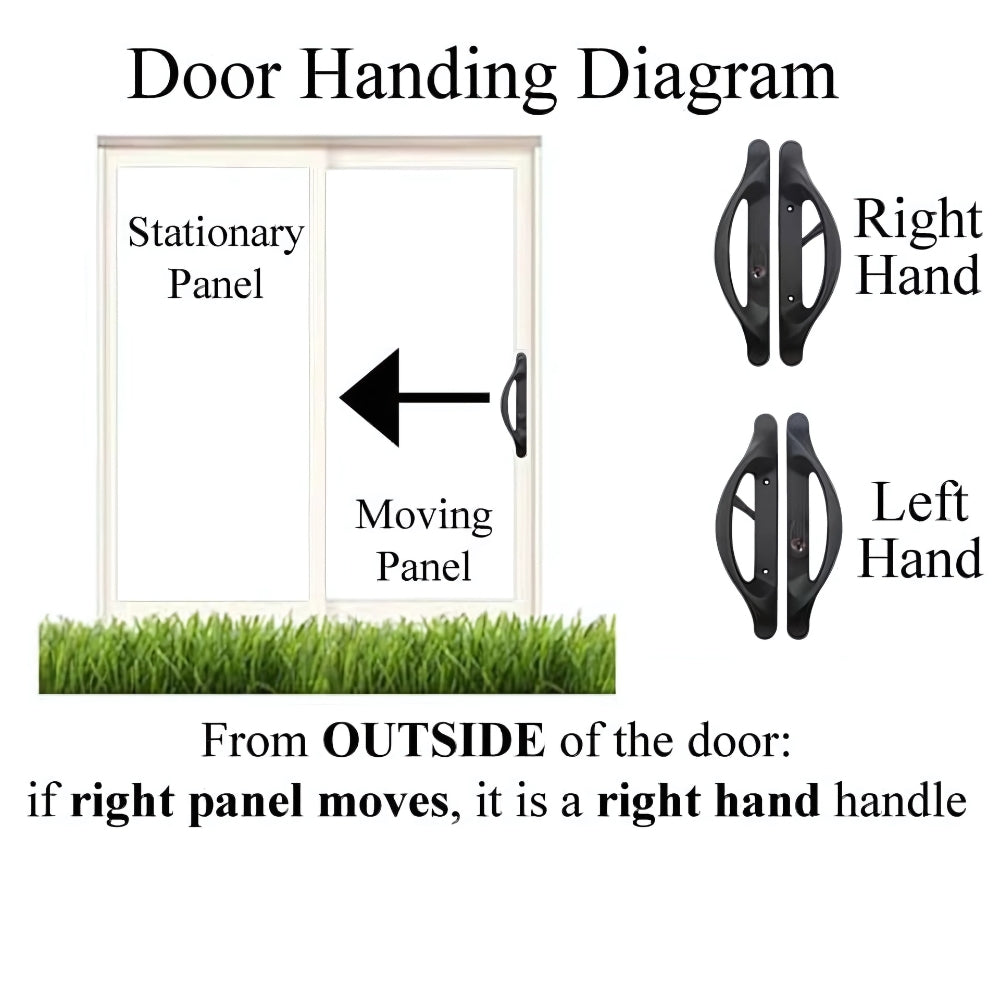

Handed: Yes, Right or Left Hand (see image 4)
Keyed: Yes, Schlage 5-pin, SC-1 keyway, 2 keys
Door Thickness: 1-1/4" to 2-1/4" thick doors (3 sets of screws and adjustable parts are included)

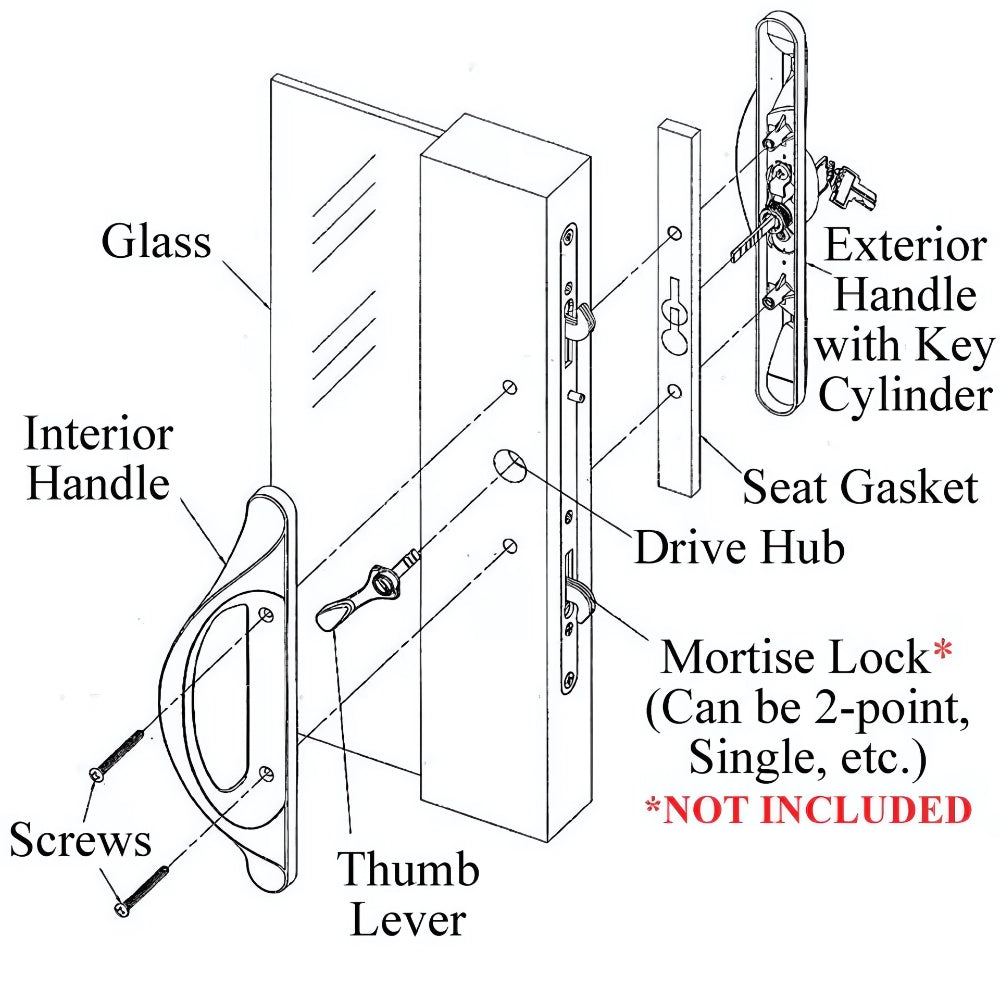

Contents:
Interior handle
Exterior handle with key cylinder tower mounted
Thumb lever assembly
3 sets of door-mounting screws to fit stile thicknesses ranging from 1-1/4" to 2-1/4" thick
KD SCH-C style 5-pin key cylinder
Assembly instruction sheet

NOTE: This fits doors with the key OFFSET in middle of handle. Some doors have the key centered, this only works for key offset.
