Right Hand Offset Key Sliding Door Handle, Faux Bronze – Truth Allure

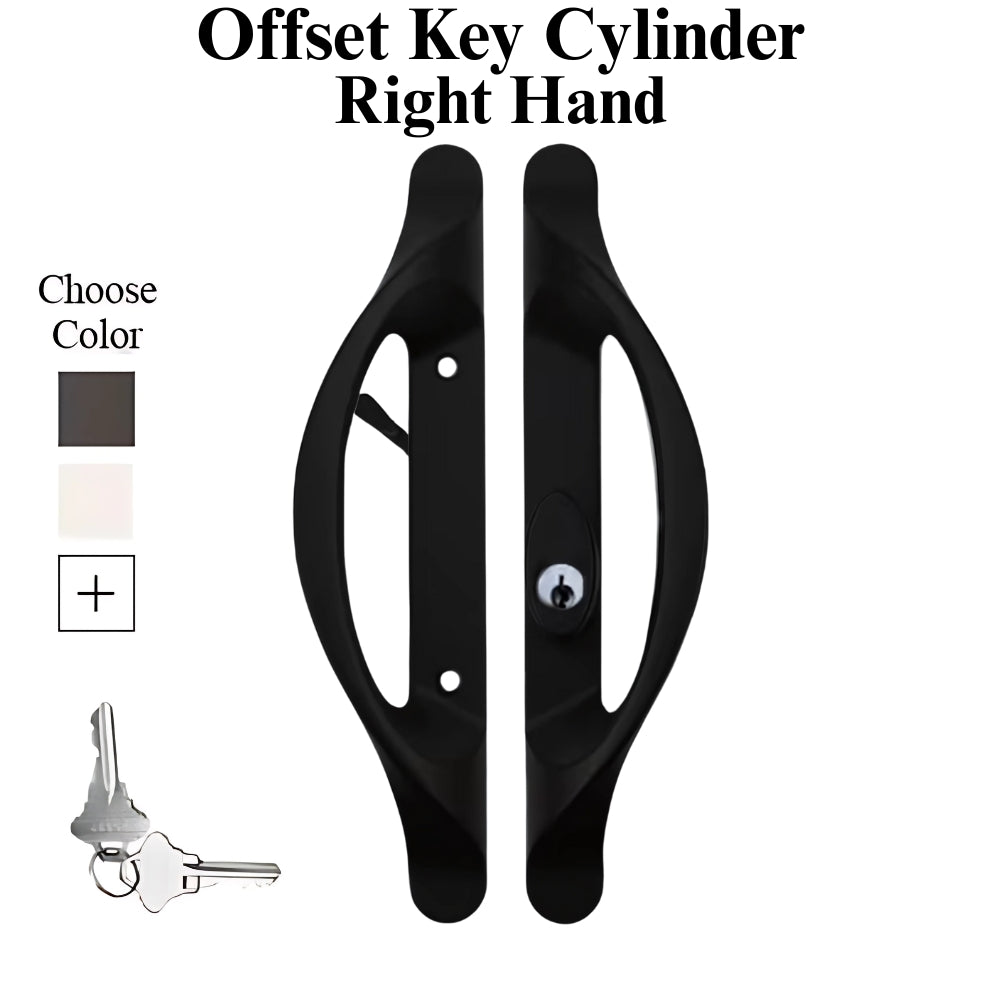

Truth Active Sliding Door Handle with Offset Key Cylinder, Faux Bronze, Right Hand

This Truth Allure keyed patio door handle is designed for use with active or inactive OX and XO configuration sliding patio doors. The low profile design ensures minimal interference with screens, curtains, and blinds, making it versatile for various door treatments. Featuring a narrow 1" (25.4mm) escutcheon, it adapts well to a range of door stile sizes, while the extended bosses on both the inside and outside add stability to the handle system.

This right hand handle set includes a Schlage 5-pin key cylinder (SC-1 keyway) and comes with two keys. The faux bronze finish offers a durable and attractive appearance, suitable for a range of décor styles. The included hardware allows installation on doors between 1-1/4" (31.8mm) and 2-1/4" (57.2mm) thick, using the supplied adjustable screws. Please note that this set is specifically for doors with the key cylinder offset in the middle of the handle; it is not compatible with doors that require a centered key cylinder.

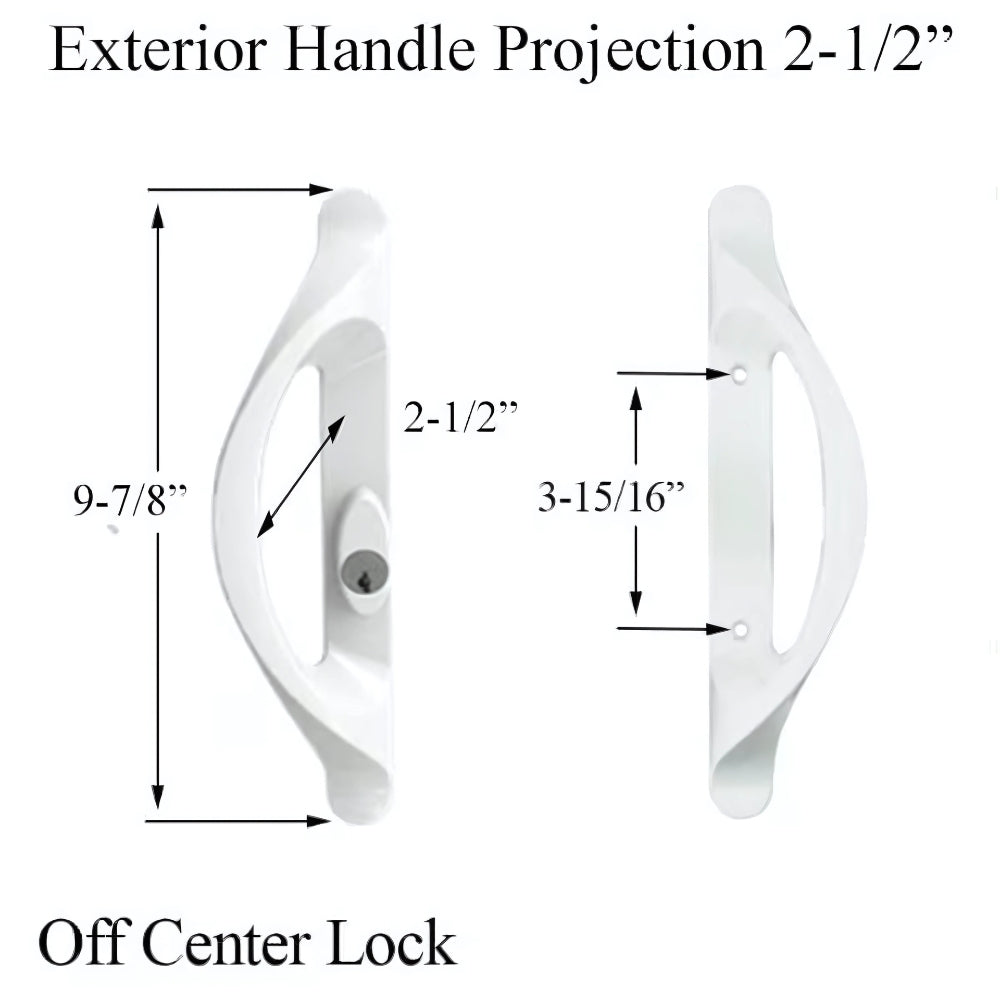

Technical Information

• Screw Hole Spacing: 3-15/16" (100.0mm)
• Length: 9-7/8" (251.0mm)
• Width: 1" (25.4mm)
• Handle Projection: 2-1/2" (63.5mm)

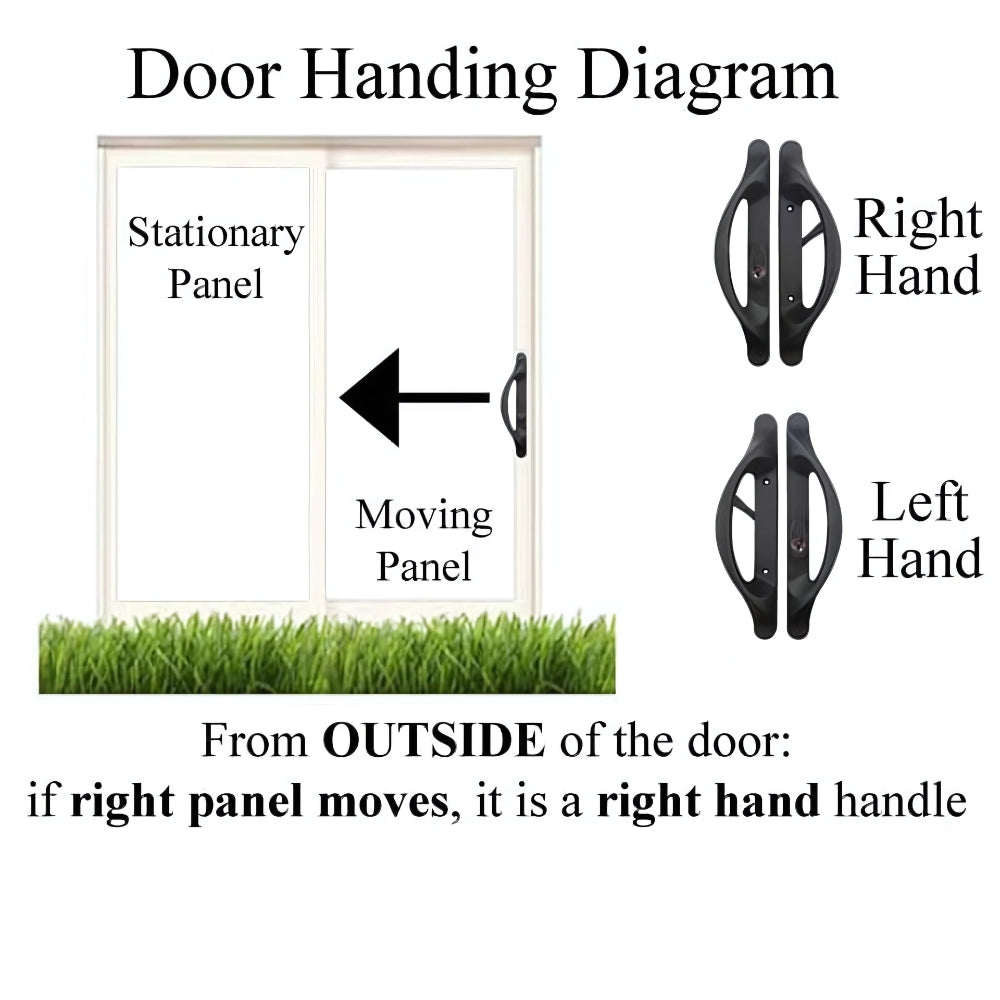

• Handed: Right Hand
• Finish: Faux Bronze
• Keyed: Schlage 5-pin, SC-1 keyway (2 keys included)
• Door Thickness Range: 1-1/4" to 2-1/4" (31.8mm to 57.2mm)

Notes

• Color available: White or Faux Bronze

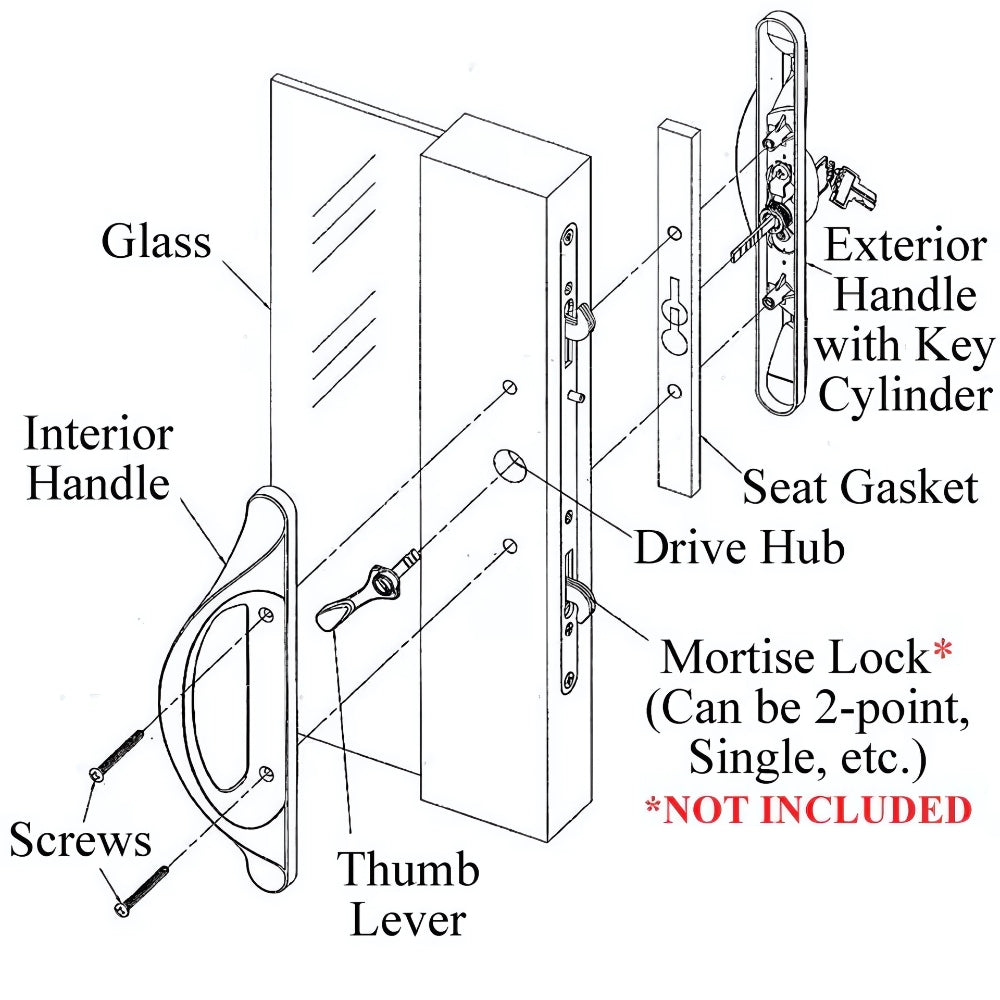

• Includes interior handle, exterior handle with key cylinder, thumb lever assembly, three sets of mounting screws, and an assembly instruction sheet
• Fits doors with offset key cylinder position only

Please measure your existing hardware and door dimensions carefully to ensure the correct fit before ordering. Proper measurement helps reduce returns and ensures compatibility.
