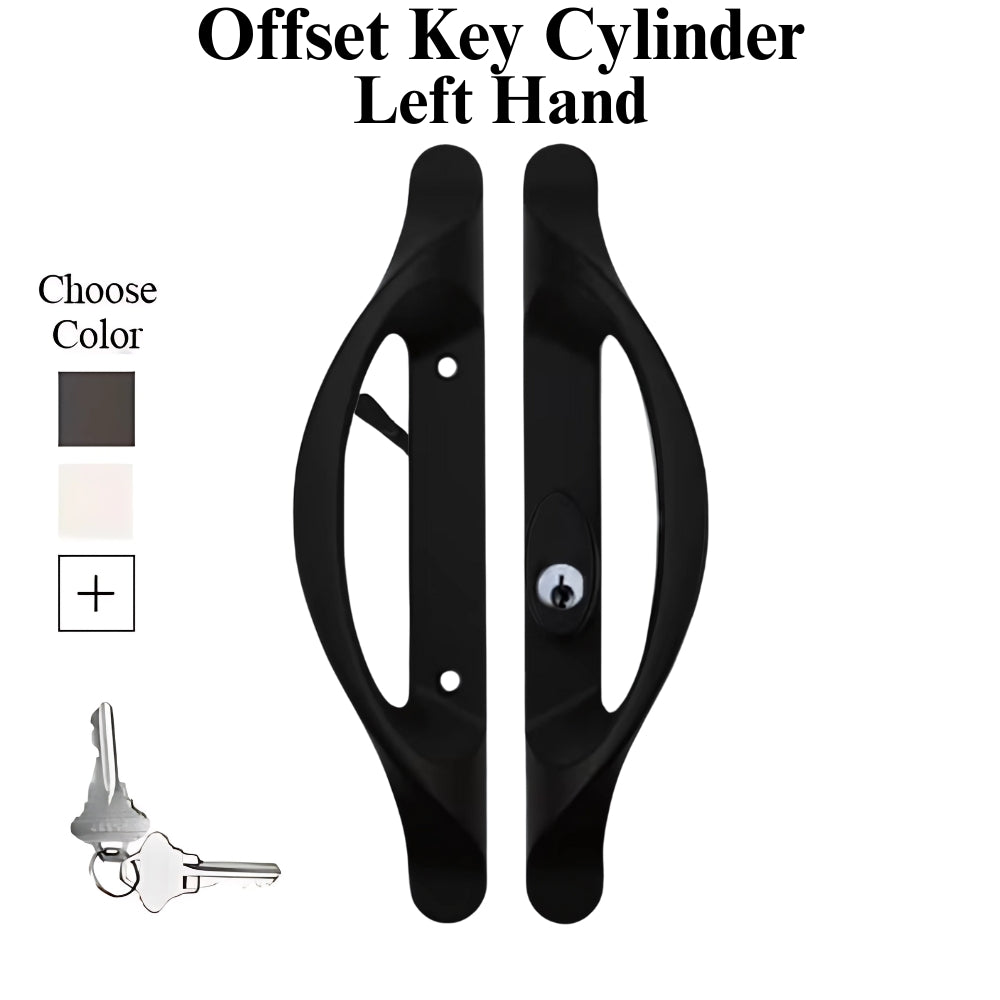

Left Hand Sliding Door Handle with Offset Key Cylinder, Faux Bronze

Truth Active Sliding Door Handle with Offset Key Cylinder, Faux Bronze, Left Hand

The Truth Allure Series Active Sliding Door Handle with Offset Key Cylinder in Faux Bronze (Left Hand) is designed to replace or upgrade the handle set on sliding patio doors where the key cylinder is offset rather than centered. It fits both OX and XO patio door configurations, making it suitable for active or inactive panels where security and ease of operation are priorities.

This handle set features a low-profile design to minimize interference with screens, curtains, and other door treatments. The narrow 1" (25.4mm) escutcheon allows it to adapt nicely to various door stile widths, while extended bosses on the escutcheon provide enhanced stability to the mounting system. The Faux Bronze finish offers an attractive yet subtle complement to many door and home styles.

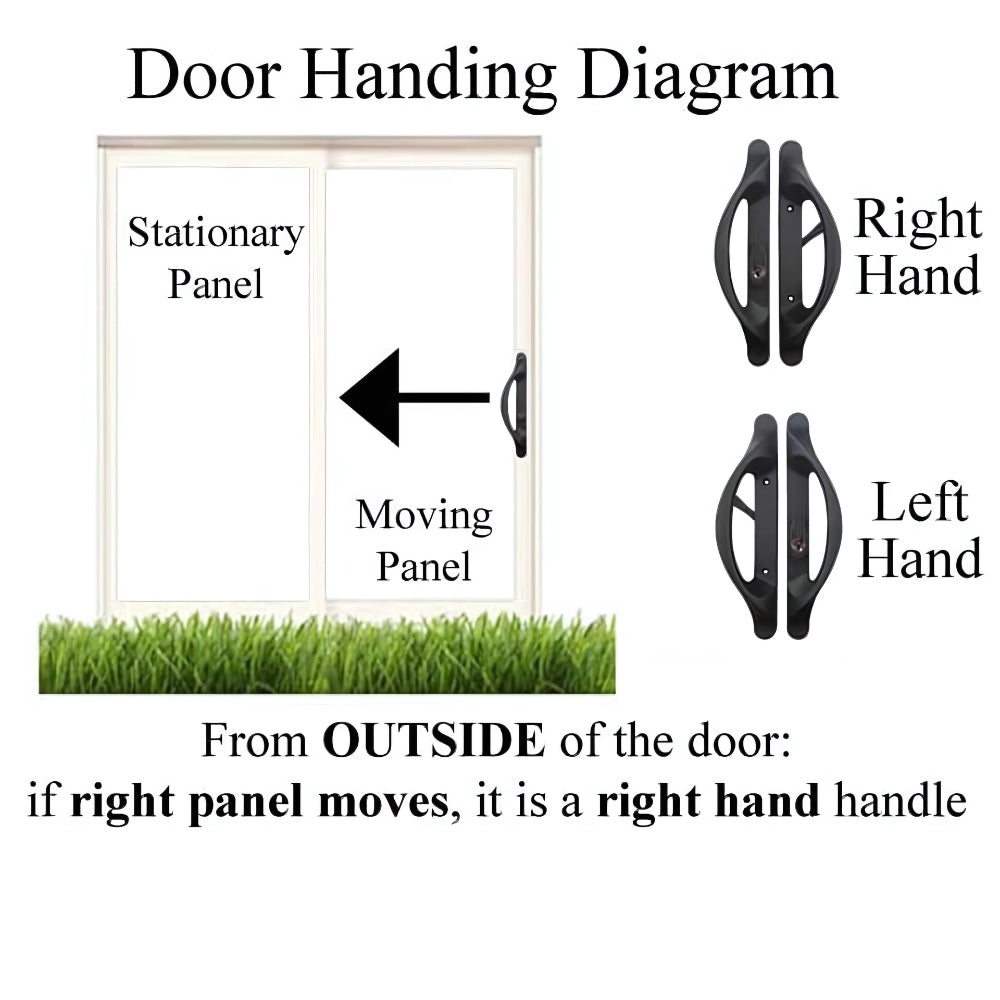

The handle is handed; this listing is specifically for the left-hand version. Please confirm your door handing before purchase. The set includes both interior and exterior handles, a thumb lever assembly, a Schlage-compatible 5-pin key cylinder with 2 keys, and three sets of mounting screws for door thicknesses ranging from 1-1/4" (31.8mm) to 2-1/4" (57.2mm). An assembly instruction sheet is included for straightforward installation.

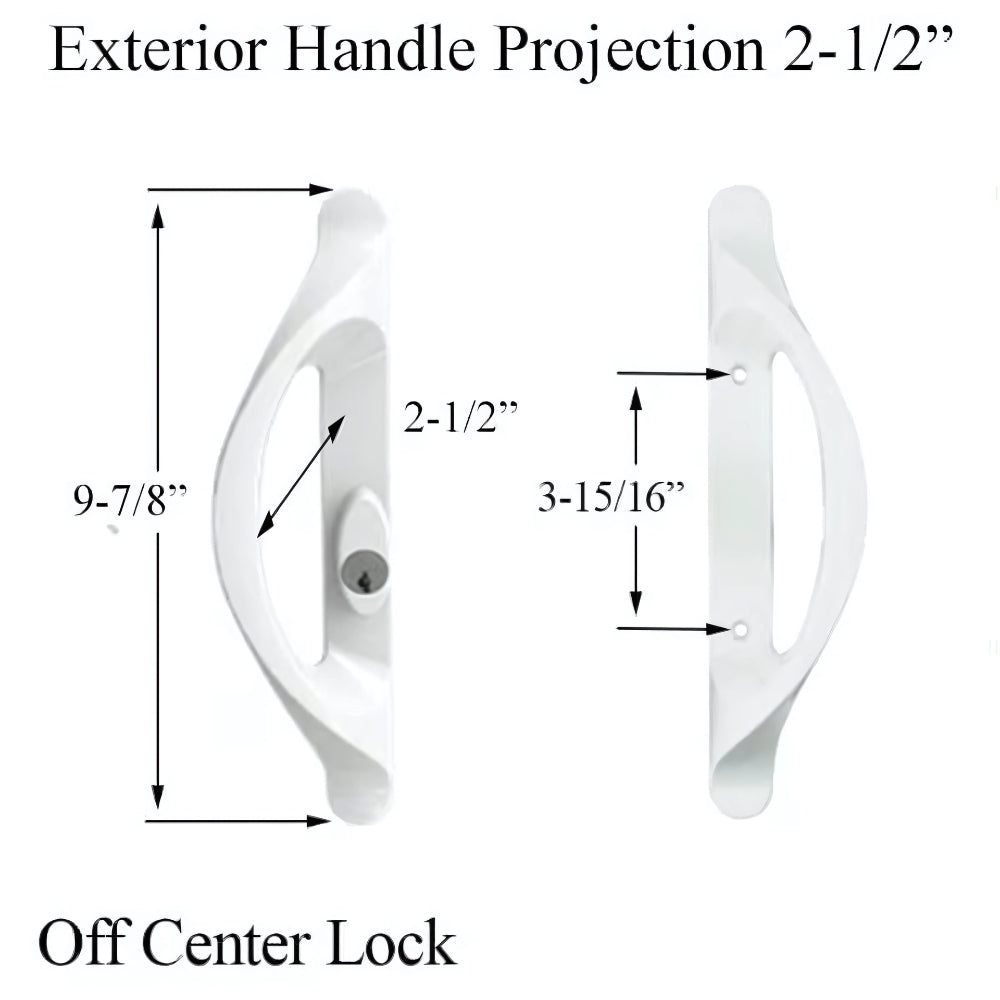

Technical Information

• Screw hole spacing: 3-15/16" (100.0mm)
• Overall length: 9-7/8" (251.0mm)
• Width (escutcheon): 1" (25.4mm)
• Handle projection: 2-1/2" (63.5mm)
• Door thickness range: 1-1/4" to 2-1/4" (31.8mm to 57.2mm)
• Keyed cylinder: Schlage 5-pin, SC-1 keyway, includes 2 keys
• Handed: Left hand
• Finish: Faux Bronze

Notes

• Fits doors with the key cylinder offset in the middle of the handle. Will not work for doors with a centered key cylinder.

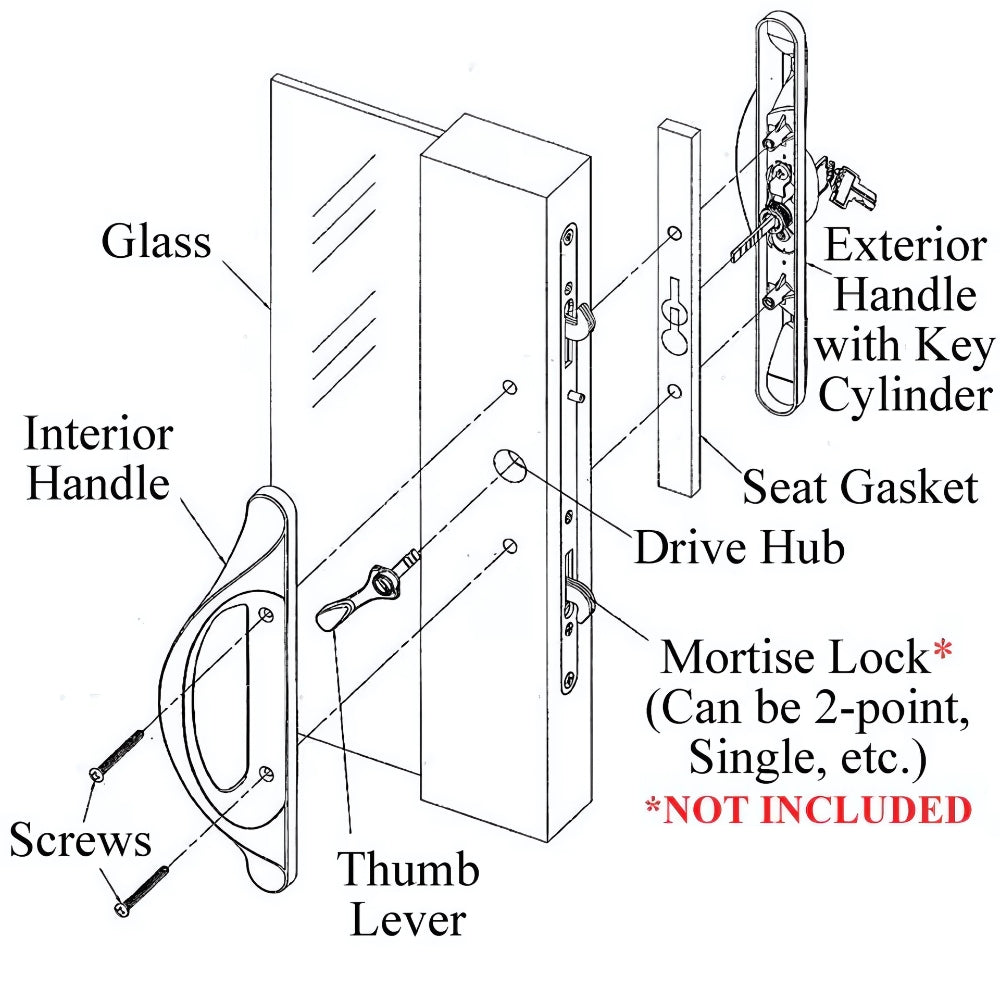

• Contents: Interior handle, exterior handle with tower-mounted key cylinder, thumb lever assembly, 3 sets of mounting screws, assembly instructions, and 2 keys.
• Compatible with most active sliding patio doors using offset key configuration—please check images and measurements to ensure compatibility.

Please measure your existing handle and screw spacing carefully to ensure compatibility before ordering. Proper measurement ensures the correct fit and reduces the chance of returns.
