Right Hand Truth 50.61 Encore Split Arm Dyad Operator, Low Profile

Truth 50.61 Encore Split Arm Dyad Operator, Low Profile, Right Hand

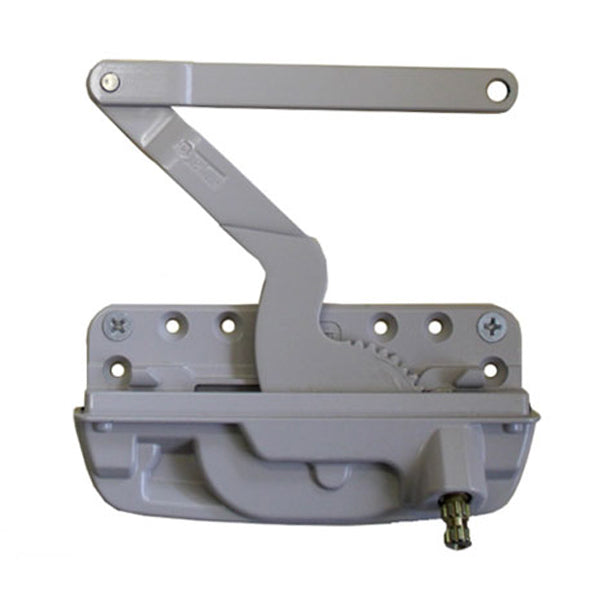

This is a Truth® 50.61 Encore Split Arm Dyad Operator in a low-profile design, intended for right-hand operation. Commonly used by manufacturers such as Weather Shield, this window operator is engineered for wood and vinyl casement windows that require reliable and precise sash movement.

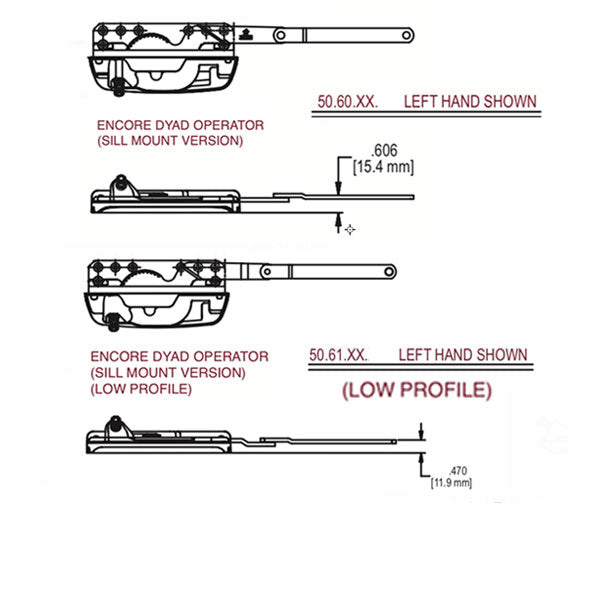

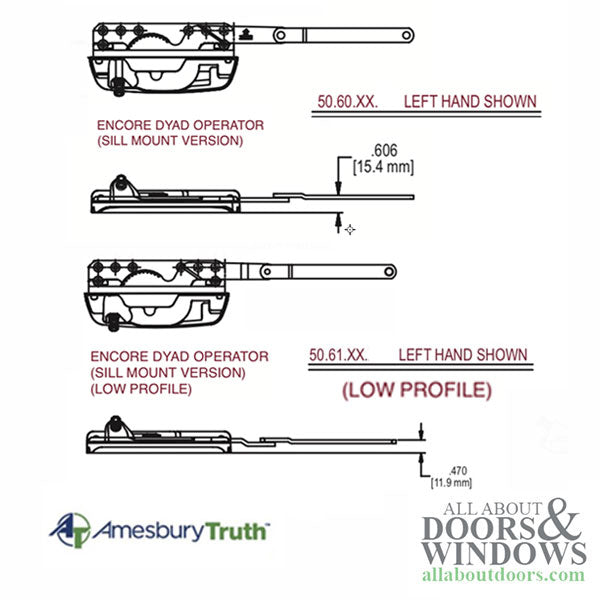

The split arm dyad design features an offset down primary arm and a matching offset secondary/top link. The low-profile construction allows for installation in windows with limited space while maintaining robust performance. This operator is compatible with window sashes ranging from 24" to 40" (610mm to 1016mm) wide and up to 84" (2134mm) high, with weights up to 108 pounds (49 kg).

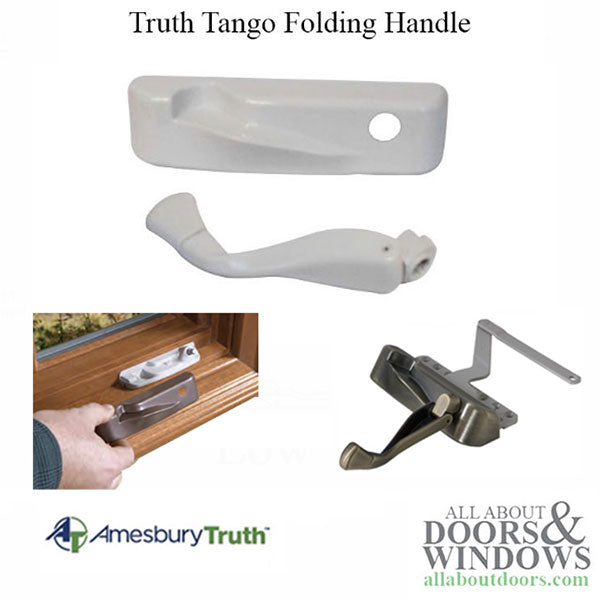

Each operator is manufactured from E-Gard® or stainless steel materials to ensure resistance to corrosion and long-lasting durability. The Encore system is designed to use the Tango Cover and folding handle (not included). Please note: this listing is for the operator only—handles and covers are sold separately.

Technical Information

• Window Type: Wood and vinyl casement
• Link Length: 4-7/8" (123.8mm)
• Link Rivet to Stud Post Hole: 4-7/16" (112.7mm)
• Link Height: 1/2" (12.7mm)
• Primary Arm: Offset down
• Secondary Arm / Top Link: Offset down
• Material: E-Gard® or Stainless Steel
• Handing: Right hand
• Compatible With: Truth's standard 10" (254mm) hinge (reduced washability) and Maxim® 13" (330mm) hinge (over 7"/177.8mm washability)

Notes

• Operator is sold individually; handle and cover are not included and must be purchased separately.
• Used by Weather Shield and other window manufacturers.
• Compatible with both left and right-hand versions. This listing is for the right-hand operator.
• Designed for windows requiring low-profile operation and enhanced washability.

Please ensure you measure your existing hardware carefully before placing an order to ensure an accurate fit.
