Truth 16.53 Secondary Sash Lock w/ Lever & Pin - Tie Bar
- Regular price
- $14.95
- Regular price
- $14.95
- Regular price
-
- Sale price
- $14.95
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type:
Sku: 55413-BEI
Discontinued Truth 16.53 Series secondary sash lock with operating lever and bottom pin, used in tie bar multipoint casement window systems. Measures 2-1/4" (57.2mm) wide by 2-3/4" (69.9mm) tall with 2-5/16" (58.7mm) between screw holes. Sold each in White or Beige, no screws included; limited to existing inventory.
Couldn't load pickup availability
Truth 16.53 Secondary Sash Lock with Pin and Lever - Tie Bar Casement
This is a secondary sash lock used in tie bar multipoint lock systems on casement windows. It works together with a primary lock and one or more secondary locks to secure the sash at multiple points along the frame.

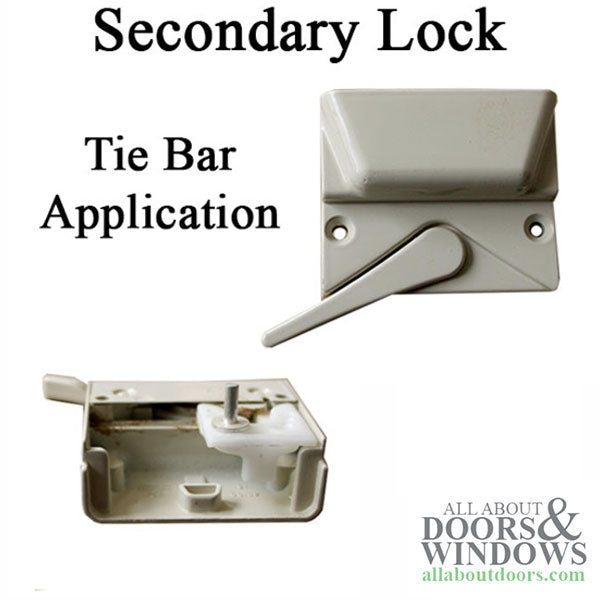

This version has an operating lever and a pin on the bottom that engages with the tie bar hardware. A separate version without a lever is also available for positions that do not need a handle.
These locks were commonly used by Hayfield Windows, Semco, VOS, and other window manufacturers on tie bar casement applications.
Technical Information
- Original Manufacturer: Truth Hardware
- Series: 16.53
- Type: Secondary Sash Lock, with Lever and Pin
- Application: Casement Window with Tie Bar (Multipoint Lock)

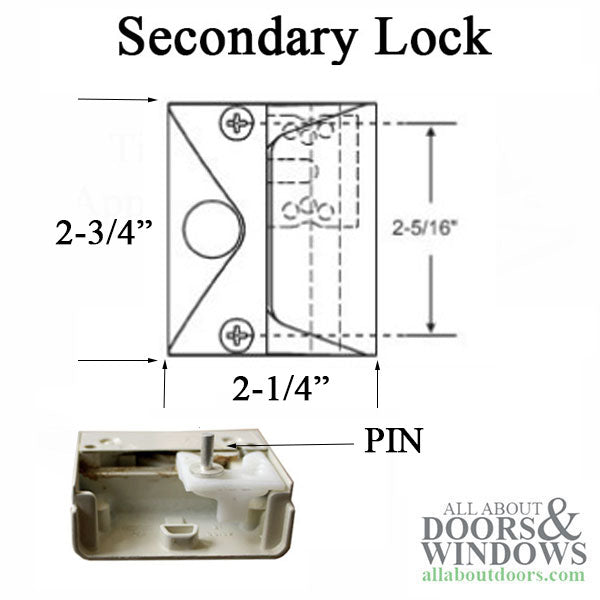

- Width: 2-1/4" (57.2mm)
- Height: 2-3/4" (69.9mm)
- Screw Hole Spacing: 2-5/16" (58.7mm)
- Colors Available: White, Beige
- Screws: Not included
Notes
- Used by Hayfield Windows, Semco, VOS, and other window brands.

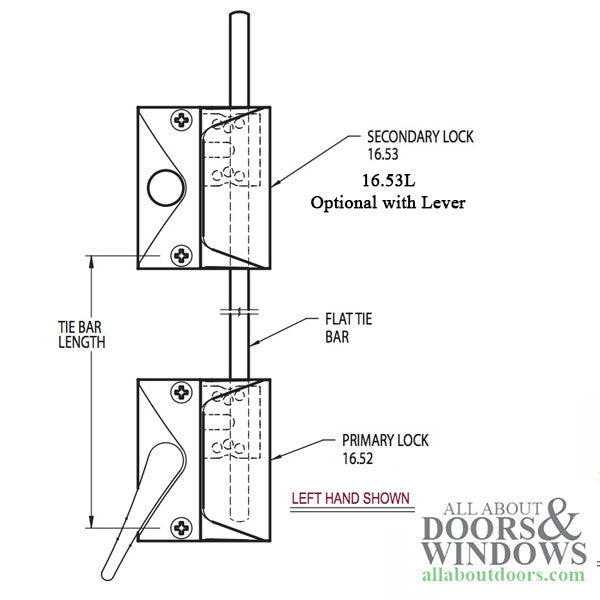

- Pairs with a primary lock to complete the multipoint tie bar system.
- A no-lever version of this secondary lock is also produced for intermediate lock points.
Related Parts
- Truth 16.52 Homegard Primary Lock (tie bar application).
- Truth 16.53 Homegard Secondary Lock, No Lever version.
Priced and sold each. Most tie bar systems use one primary lock plus one or more secondary locks, so order the quantity that matches your existing setup.
This item has been discontinued and availability is limited to existing inventory. Please measure your existing hardware and confirm the screw hole spacing, overall dimensions, and pin location before ordering to ensure a correct fit.
