Right Hand Truth 15.30 Weather Shield Split Arm Operator, 4-1/2" Link
- Regular price
- $29.95
- Regular price
-
- Sale price
- $29.95
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type: Hardware
Sku: 15.30-WS-RH-EG-ORB
Truth® 15.30 split arm operator with a straight 4-1/2" (114.3mm) link, right hand, fits Weather Shield® wood or aluminum clad casement windows. Operator body is stamped with Truth® #45251, arm marked #40351, and link marked Truth® #31850. No crank handle or screws included; limited stock as this model is discontinued.
Couldn't load pickup availability

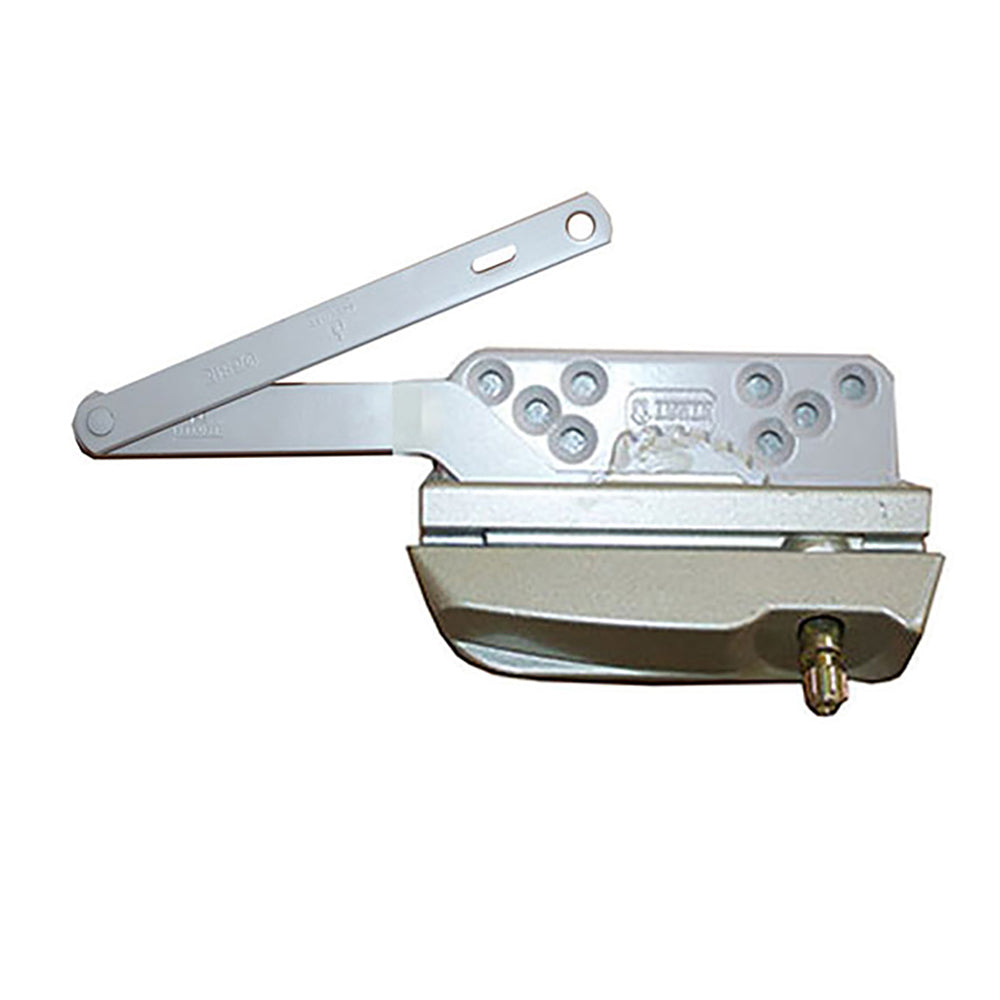

Truth® 15.30 Weather Shield Split Arm Operator, Straight 4-1/2" Link, Right Hand
This Truth® 15.30 Nested Split Arm Operator is designed specifically for use with Weather Shield® wood and aluminum-clad casement windows. It features a straight 4-1/2" (114.3mm) link and a right-hand orientation. This operator is installed as a sill mount and is compatible with both wood and vinyl windows, making it a reliable fit for numerous casement window setups.

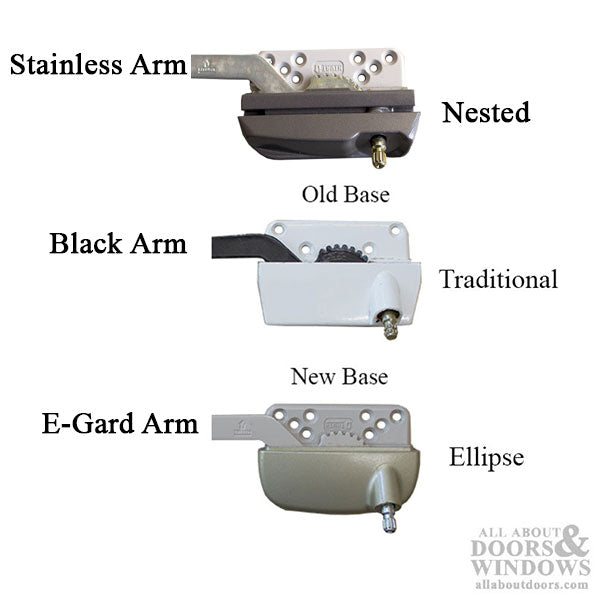

The operator includes a nested housing engineered for use with a folding handle (not included). Its split arm with a straight link is mounted on top of the main arm and measures 5" (127mm) in arm length, while the link length from rivet to stud post hole is 4-1/2" (114.3mm). The body is constructed from zinc die cast and incorporates E-Gard or stainless steel arms for added durability. Please note, the color is limited to existing inventory, as this operator is discontinued and only available while supplies last.
- Intended for wood or aluminum clad Weather Shield® casement windows
- Nested housing accommodates a folding handle
- Does not include screws or a crank handle
- Handed design: right hand (left hand available separately)
Technical Information
- Main Body Marking: Truth® #45251
- Main Arm Marking: #40351
- Straight Arm Link Marking: Truth® #31850
- Arm Length: 5" (127.0mm)
- Link Length (Rivet to Stud Post Hole): 4-1/2" (114.3mm)
- Material: Zinc Die Cast Body; E-Gard or stainless steel arms
- Application: Sill mount; casement windows
Notes
- Limited to existing inventory; discontinued by manufacturer
- Available only in colors or finishes currently shown
- No detach clip on this operator
- Sold individually (each), with no screws or crank handle included
Ensure accurate measurement of your existing hardware prior to ordering to guarantee proper fit. Proper measurement is essential to avoid returns and compatibility issues.
