Left Hand Truth 15.30 Weather Shield Split Arm Window Operator, 4-1/2" Straight Link
- Regular price
- $29.95
- Regular price
-
- Sale price
- $29.95
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type: Hardware
Sku: 15.30-WS-LH-EG-ORB
Truth® 15.30 split arm nested operator with a 4-1/2" (114.3mm) straight link fits left-hand wood or aluminum-clad casement windows from Weather Shield. Features include a zinc die cast body, stainless or E-Gard® steel arms, and stamped markings: Truth® #45251 (body), #40351 (main arm), and #31850 (link). This discontinued operator is sold individually without mounting screws or crank handle.
Couldn't load pickup availability

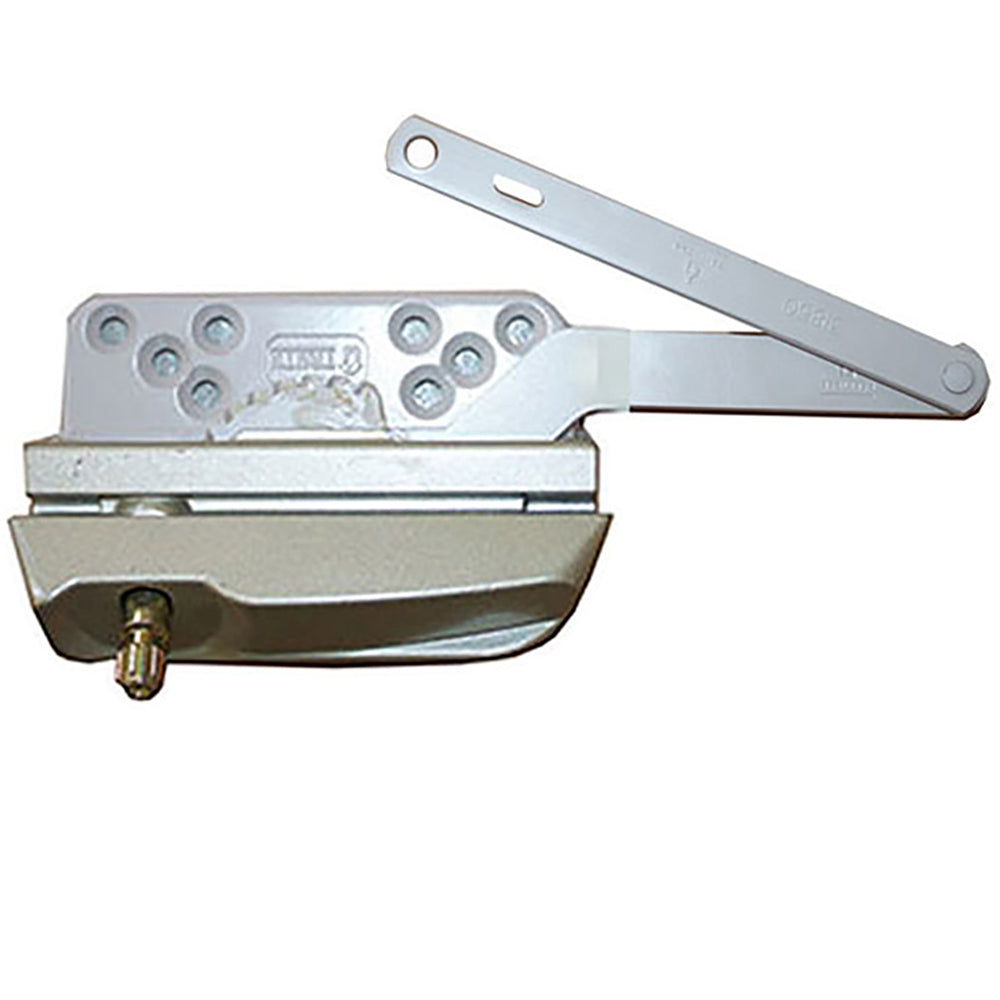

Truth® 15.30 Weather Shield Split Arm Nested Operator, Straight 4-1/2" Link, Left Hand

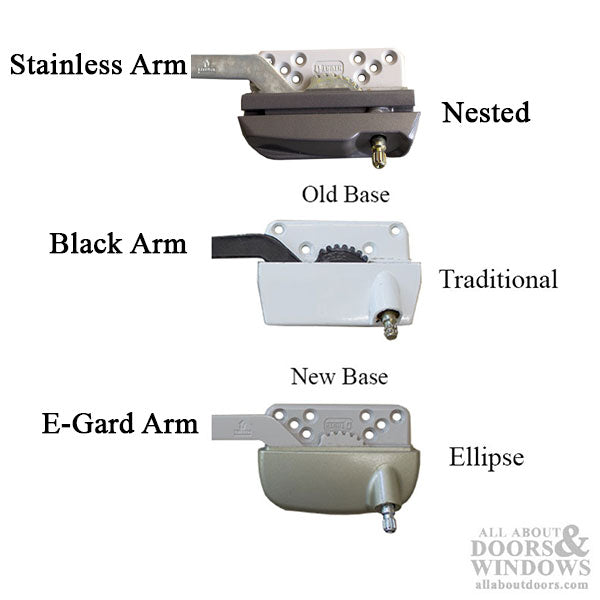

This Truth® 15.30 split arm nested operator with a straight 4-1/2" (114.3mm) link is designed for use with wood and aluminum clad casement windows, specifically supplied on Weather Shield’s wood casement models. The unit features a nested housing design that is compatible with folding handles (sold separately), making it a popular choice for sill-mounted casement windows that require robust, smooth operation.
The split arm with straight link configuration provides reliable support and ease of movement for left-handed window installations. This operator is crafted from a zinc die cast body paired with E-Gard® or stainless steel arms for enhanced corrosion resistance, durability, and long service life. Please note, this item has been discontinued by the manufacturer and is available only while current inventory lasts.
Common applications include wood or vinyl replacement and new construction windows where a split arm mechanism is necessary. The link is mounted on top of the main arm. This hardware does not include a detach clip, crank handle, or installation screws, so these will need to be sourced separately.
Stamped With
- Main Body: Truth® #45251
- Main Arm: #40351
- Straight Arm Link: Truth® #31850

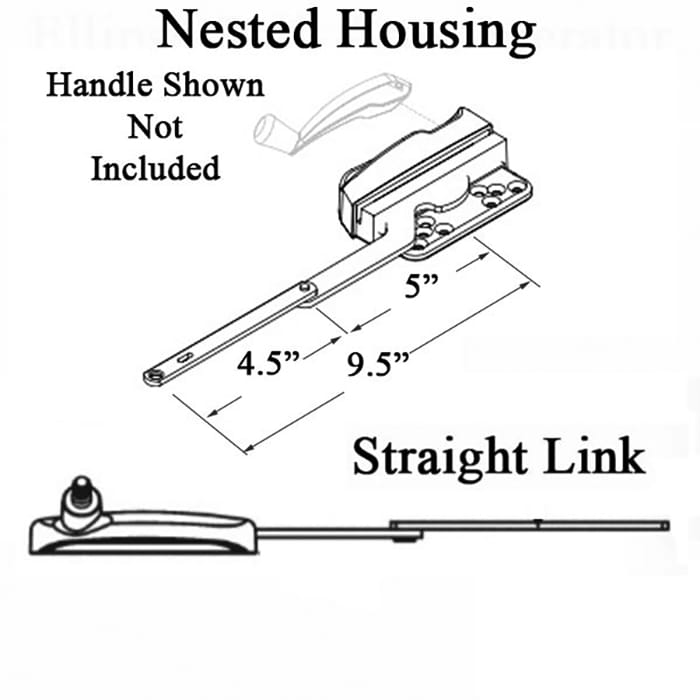

Technical Information
- Arm Length: 5" (127.0mm)
- Link Length, Rivet to Stud Post Hole: 4-1/2" (114.3mm)
- Mounting Style: Sill Mount
- Handed: Left hand (see product images for confirmation)
- Material: Zinc die cast with E-Gard®/stainless steel arms
- Window Type: Wood or vinyl
Notes
- No screws or crank handle included
- Limited to existing inventory and available colors/finishes
- Check that the product hand (left vs. right) matches your original hardware
Sold individually. For best results and to reduce the chance of returns, carefully measure your existing operator and mounting setup to confirm compatibility before ordering.
