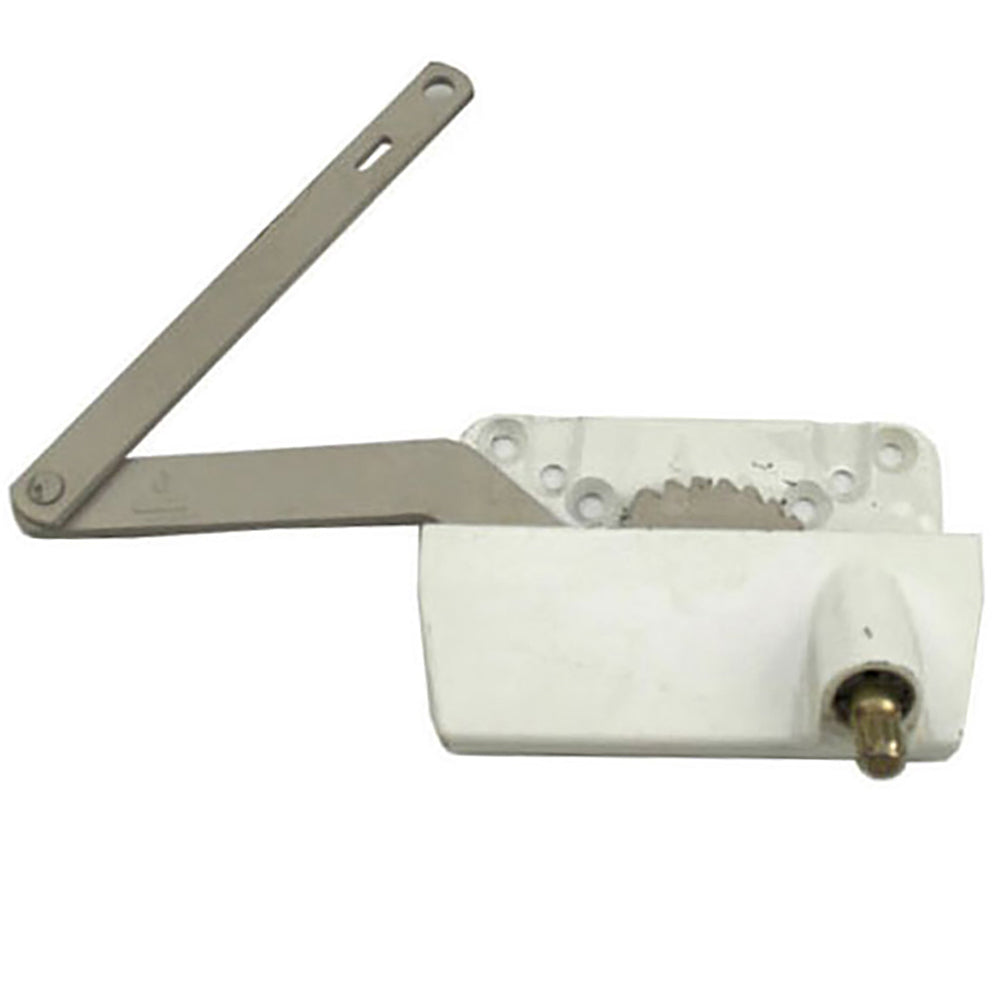

Truth 15.30 Traditional Split Arm Operator Casement Operator, Split Arm, Right Hand
- Regular price
- $19.95
- Regular price
-
- Sale price
- $19.95
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type:
Sku: 15.30-TRA-RH-EG-CAM
Truth 15.30 Traditional Split Arm Operator, Casement Crank Mechanism, Right Hand
Couldn't load pickup availability
This product has been discontinued. Replace with #50.60.00.212.
Additional components required with this replacement:
Cover/Handle #55309 and Stud/Snap-On Bracket #551093.
Truth Traditional Dyad Split Arm Casement Operator, Sill Mount for wood or vinyl windows
Used by Weathershield on their Visions 2000 vinyl casement window and many other companies
Application: Casement windows, Sill Mount
Window Type: Wood or Vinyl
Operator Type: Split Arm with Straight link
Markings: Main Body, Truth # 45135
Markings: Straight Arm link, Truth # 31850
Arm Length: 5 inch
Link Length: Rivet to Stud post Hole: 4-1/2 inch
Link Mount: Mounted on Top of main arm
Detach clip: None

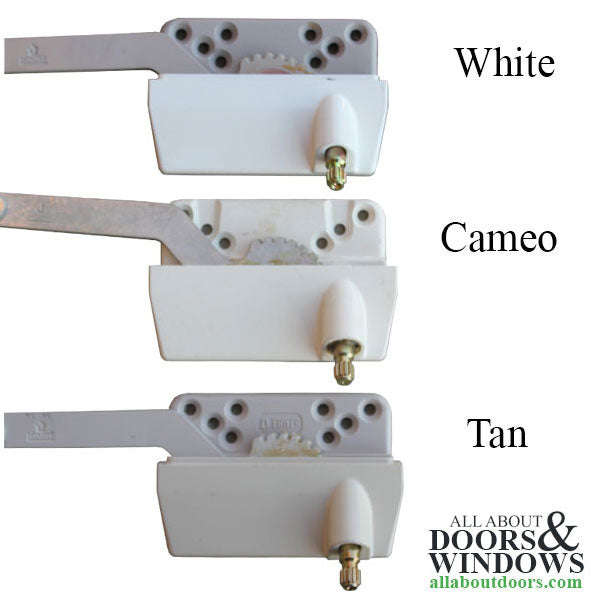

Color: Limited to existing shown
Handed: Yes, Left and Right handed as shown
Material: Zinc Die Cast Body with E-Gard or stainless steel arms
Sold Each, No screws or crank handle

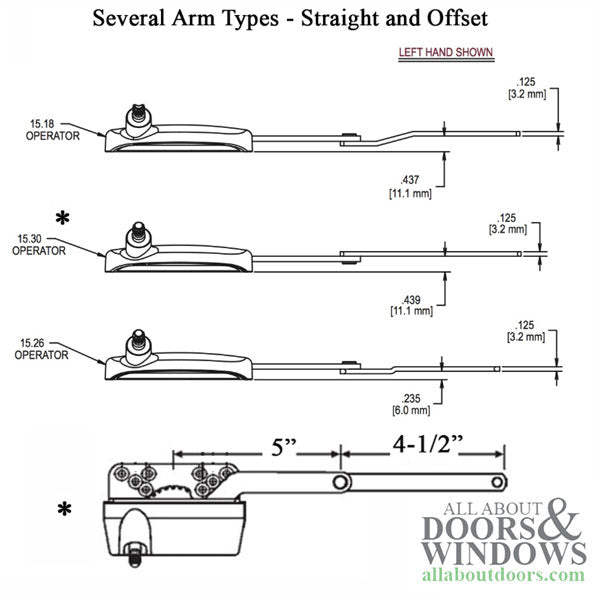

Note 1: There are 4 configurations for this Truth Window crank operator
1. Straight link mounted on top, No Clip
2. Offset link, mounted on bottom -15/64 inch Offset, No Clip
3. Offset link, mounted on bottom - 7/16 inch Offset, No Clip
4. Offset link, mounted on bottom - 49/64 inch Offset, Detach Clip

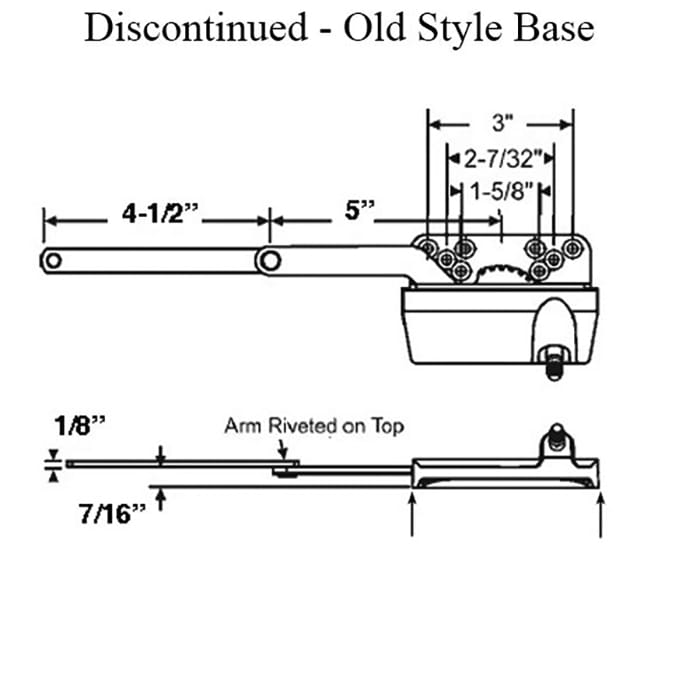

NOTE 2: See additional Pictures for line drawings
