Left Hand Truth 15.30 Ellipse Split Arm Operator, 4-1/2" Link, Straight Arm
- Regular price
- $19.95
- Regular price
-
- Sale price
- $19.95
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type: Hardware
Sku: 15.30-ELL-LH-EG-CAM
Truth® 15.30 Ellipse Split Arm Operator features a straight 4-1/2" (114.3mm) link for left-hand wood or vinyl casement windows, commonly used with Weather Shield Visions 2000 models. Markings include Truth® #45251 on the main body, #40351 on the main arm, and Truth® #31850 on the straight arm link. Made from zinc die cast with e-gard or stainless steel arms; sold individually without screws or crank handle.
Couldn't load pickup availability

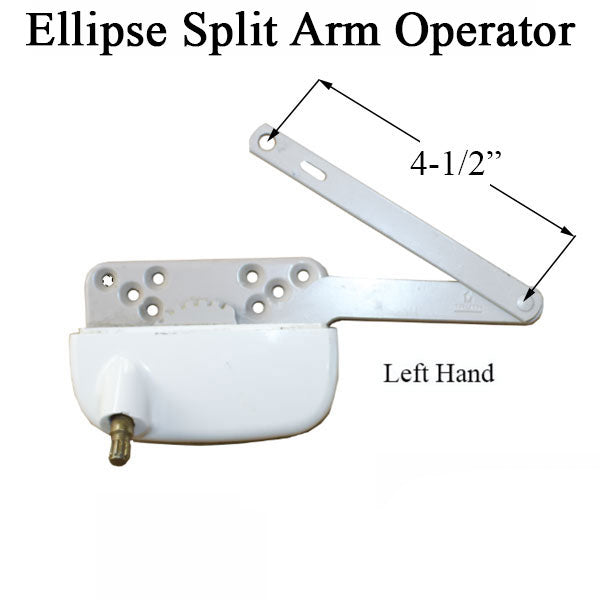

Truth® 15.30 Ellipse Split Arm Operator, Straight 4-1/2" Link, Left Hand
The Truth® 15.30 Ellipse Split Arm Operator with a straight arm and a 4-1/2" (114.3mm) link is designed for use on wood or vinyl casement windows. This operator is commonly found on applications such as the Weather Shield Visions 2000 vinyl casement window and is compatible with a range of window brands that use similar hardware.

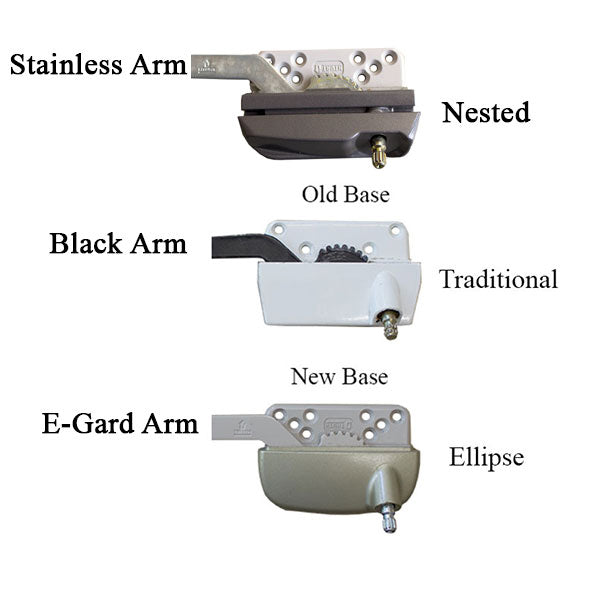

This operator mounts to the sill of the window (sill mount) and is intended for left hand operation as shown. The split arm design features a straight link, making it suitable for specific window configurations requiring precise operation. The main body is constructed from a durable zinc die cast with either E-Gard® or stainless steel arms, providing strong resistance to corrosion and wear. The link is mounted on top of the main arm for straightforward installation and reliable performance.

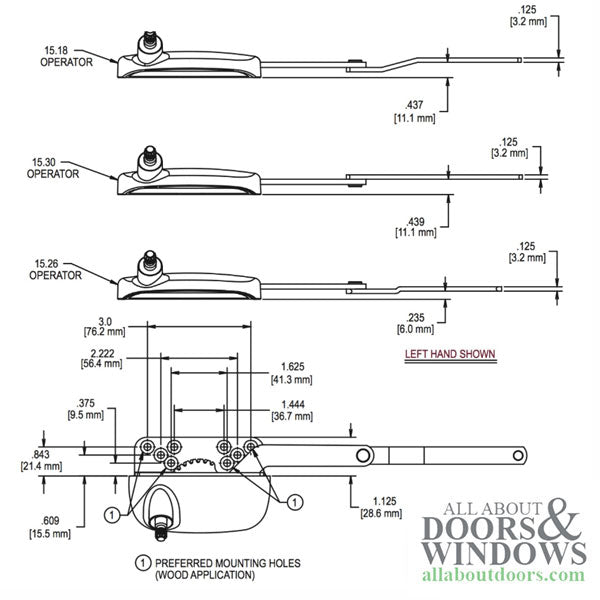

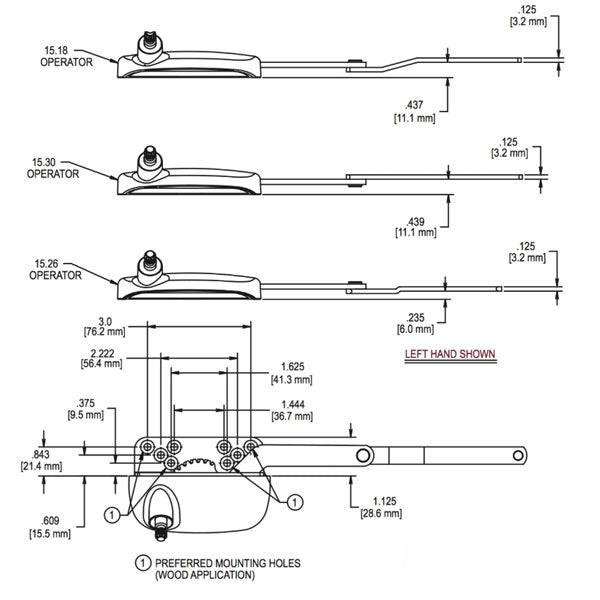

The arm has a length of 5" (127.0mm) and the link measures 4-1/2" (114.3mm) from rivet to stud post hole. Please note, no detach clip is included, and this operator does not come with mounting screws or a crank handle—these items should be purchased separately if needed. The color availability is limited to existing inventory as shown in the product images, and both left and right handed versions are available; confirm your needed hand before ordering.
Stamped With
- Main Body: Truth® # 45251
- Main Arm: # 40351
- Straight Arm Link: Truth® # 31850
Technical Information
- Application: Casement windows
- Operator Style: Ellipse, Split Arm, Straight link
- Window Type: Wood or Vinyl
- Mounting: Sill Mount
- Arm Length: 5" (127.0mm)
- Link Length (Rivet to Stud Post): 4-1/2" (114.3mm)
- Material: Zinc Die Cast with E-Gard® or Stainless Steel Arms
- Handed: Left Hand (right hand also available separately)
- Detach Clip: None
Notes
- Sold individually (each), not as a pair.
- Mounting screws and crank handle are not included.
- Color is limited to available stock.
Please measure your existing operator and hardware carefully to ensure compatibility and proper fit before ordering. Accurately measuring your window hardware is the best way to avoid returns and ensure you receive the correct replacement part.
