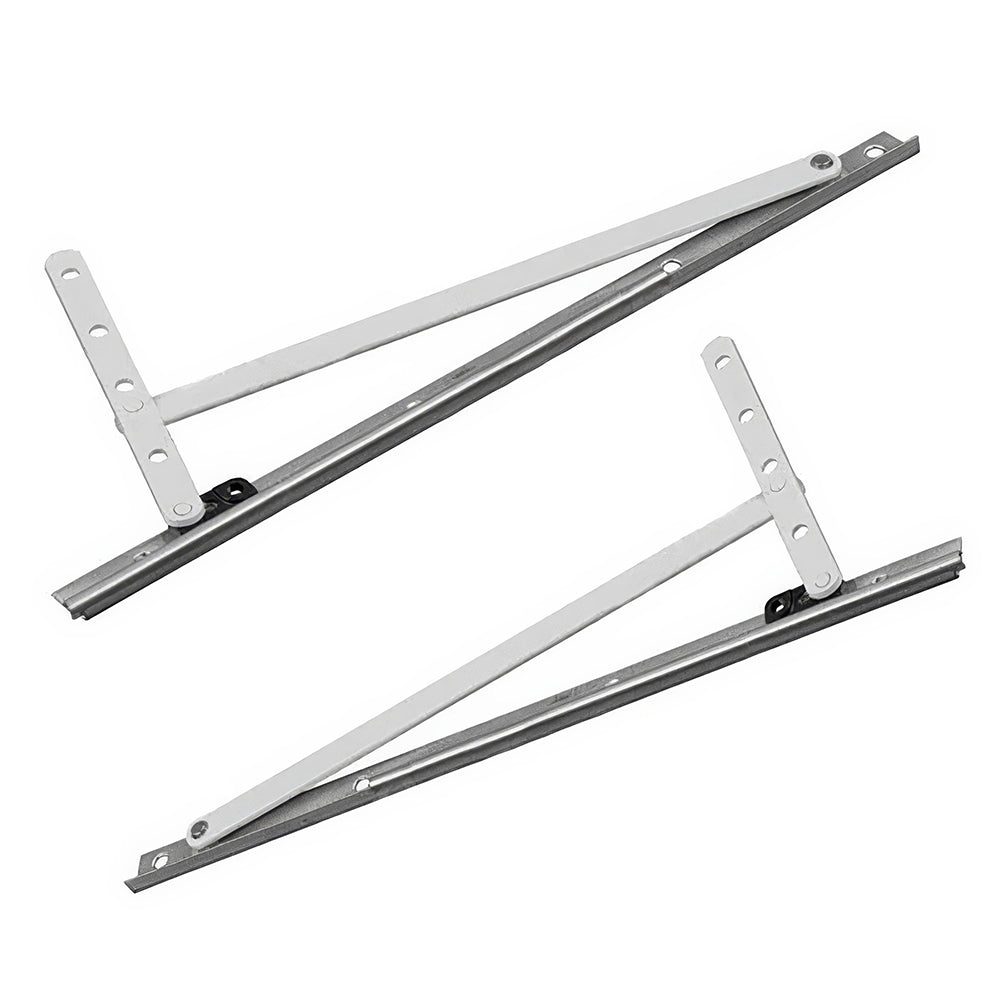

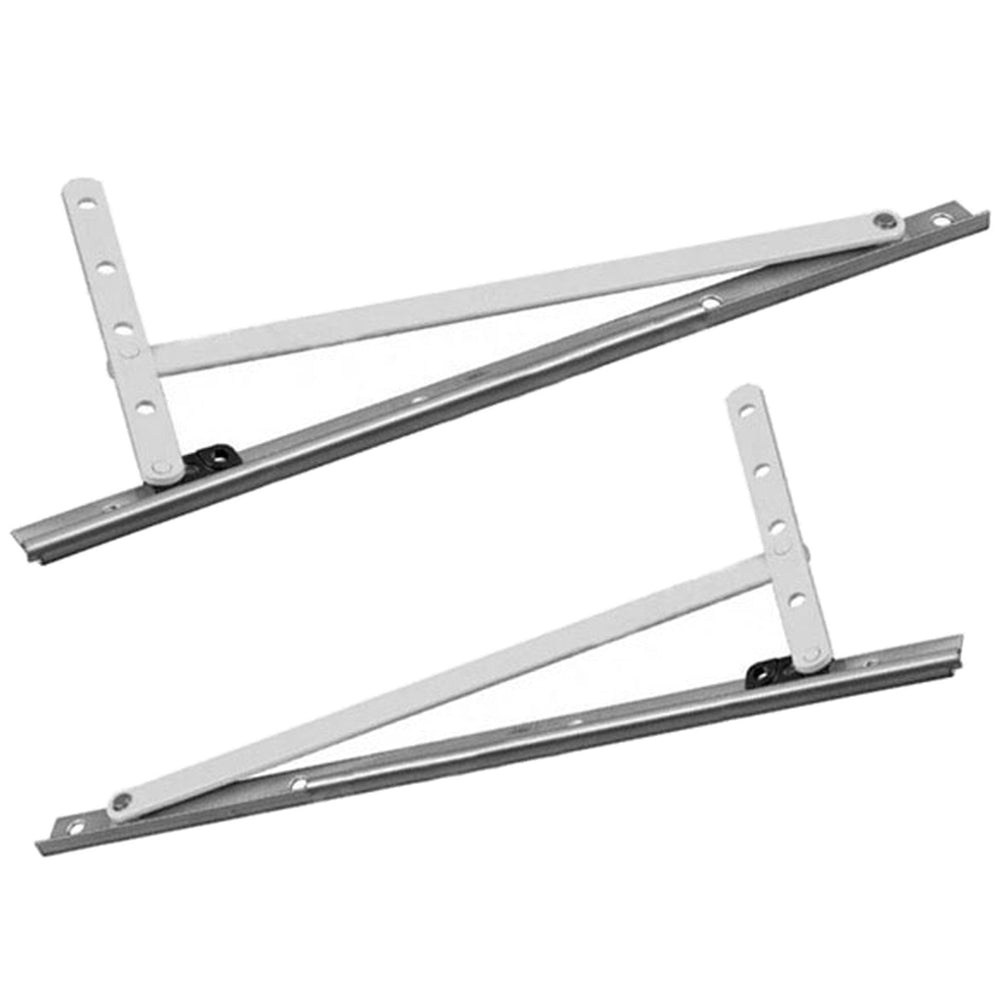

Truth 14.12.00 Egress Casement Hinge Kit, 13" Stainless Track, Pair
- Regular price
- $36.75
- Regular price
-
- Sale price
- $36.75
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type:
Sku: 14.12.00-Kit-SS
Truth® 14.12.00 Egress Casement Hinge kit includes a 13" (330.2mm) stainless steel track with heavy-gauge stainless steel hinge arms, suitable for left or right hand casement windows. Marked with Truth® 32062 and 31861, this pair fits upper and lower positions and is designed for use with Maxim Dual Arm Operators to provide wider emergency egress openings. Screws are not included; use #7 x 3/4" (19.1mm) stainless steel sheet metal screws as required by your window material.
Couldn't load pickup availability
Truth 14.12.00 Egress Casement Hinge Kit – 13" Track, Stainless Steel (Pair)
The Truth® 14.12.00 Egress Casement Hinge Kit provides a pair of high-performance concealed hinges, specifically designed for casement windows requiring egress functionality. This kit features a 13" (330.2mm) stainless steel track and robust hinge arms made to support sash weights up to 69 pounds (31.3kg). Concealed hardware keeps the sash close to the jamb, maximizing the net opening width for egress compliance.
The kit includes all components needed to install both upper and lower hinge assemblies for a single window. Designed for flexibility, it fits both left- and right-hand casement windows. The hinge arms snap onto a brass track stud using a snap ring for secure, smooth movement. Please note: screws are not included and should be selected to match the window material and application—recommended size is #7 x 3/4" (19mm) stainless steel, Phillips flat head, sheet metal screws.
These hinges are compatible only with casement windows and are not intended for use with awning windows. Primarily used alongside the Maxim Dual Arm Operator, this egress hinge kit helps meet local safety codes for emergency exit in bedrooms and similar spaces.
Stamped With
- Truth® 32062
- Truth® 31861

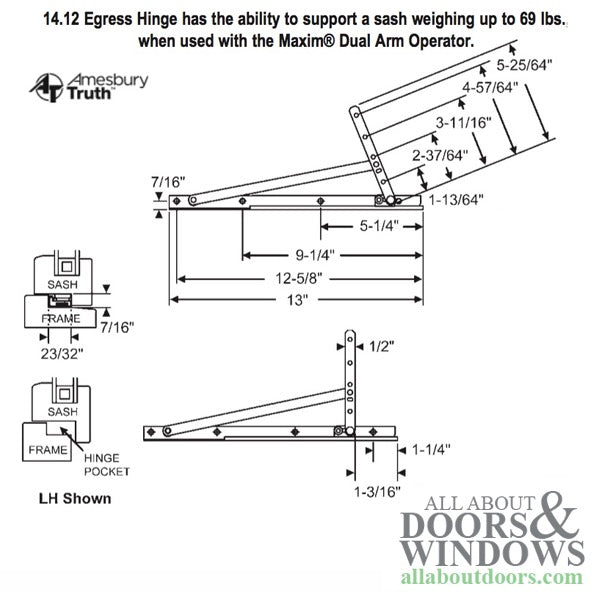

Technical Information

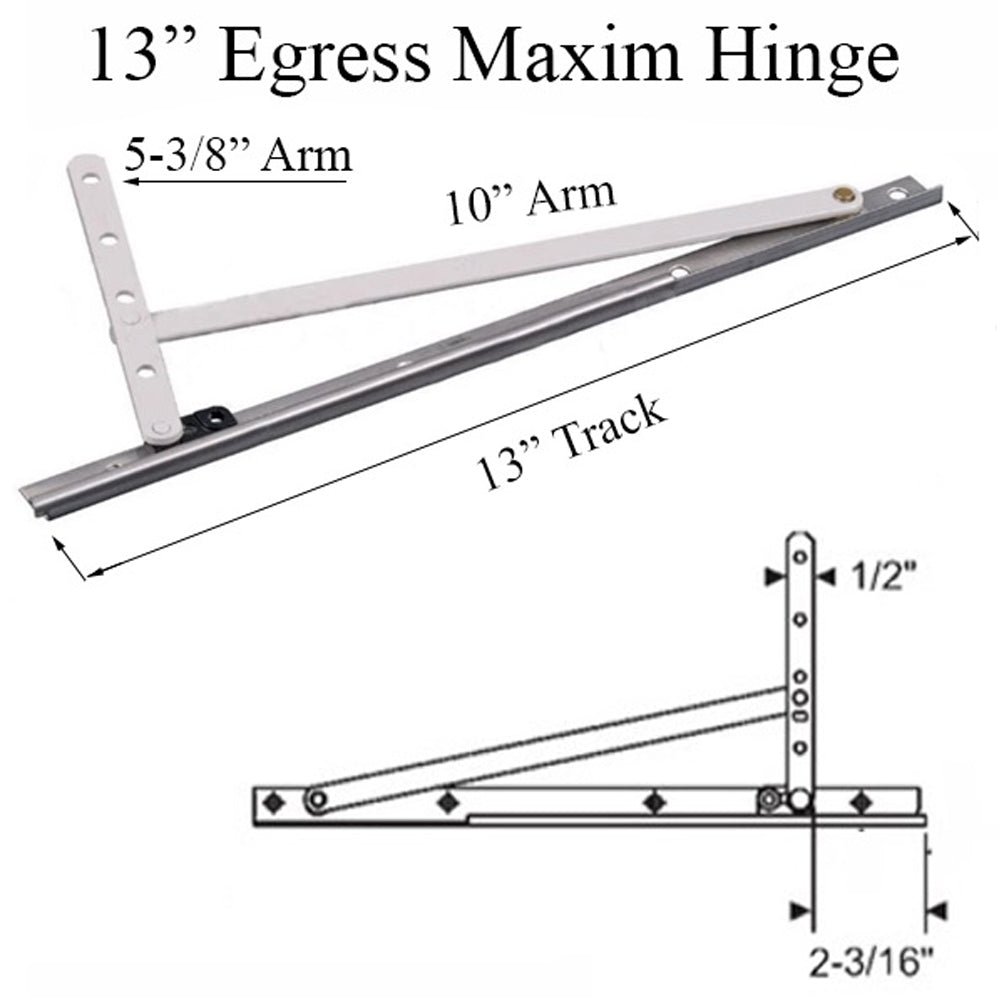

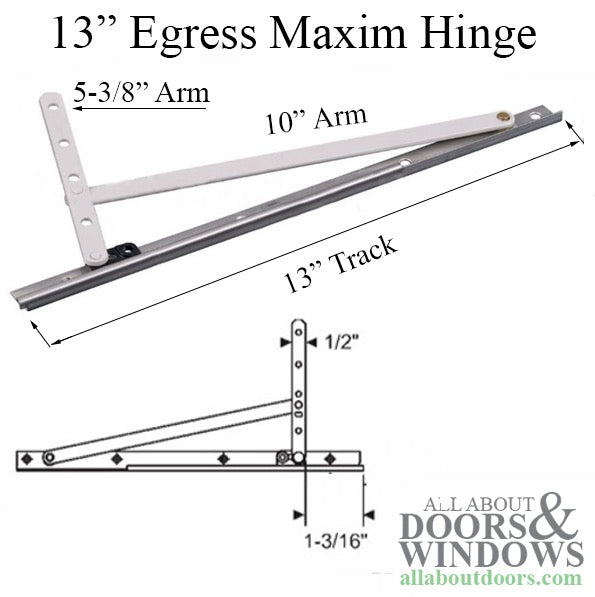

- Track Length: 13" (330.2mm)
- Track Width: 7/16" (11.1mm)
- Track Material: Stainless Steel with Brass Stud
- Hinge Opening: 2-3/16" (55.6mm) (2.179" actual)
- Arm Lengths: Long arm 10" (254.0mm); Short arm 5-7/16" (138.3mm, 5.452" actual)
- Arm Material: Stainless Steel
- Stack Height: 7/16" (11.1mm)
- Handed: Yes, includes both right hand and left hand hinge assemblies
- Sold In: Pairs (1 upper and 1 lower hinge assembly per kit)
- Components: Amesbury Truth® 14.12.00.505 (Upper), 14.12.00.506 (Lower)
- Sash Weight Rating: Up to 69 lbs (31.3kg)
Notes
- Not for use on awning windows.
- Used specifically with Maxim Dual Arm Operator to achieve egress requirements.
- Application: Mounts on either left or right side of window.
- Egress model enables approximately 2-5/8" (66.7mm) wider net opening for emergency exit.
- International Building Code (IBC) requires at least one egress window in every bedroom. Minimum operable portion should be 24" (609.6mm) high by 20" (508.0mm) wide, providing at least 5.7 sq. ft (0.53 m²) net area, with sash not more than 44" (1118mm) above floor—always confirm local code requirements.
- Hinge arm snaps onto track stud for secure installation.
Sold as a pair—includes one upper and one lower hinge assembly for a single window. Screws are not included and must be selected based on your window material. Always measure your existing hardware carefully to ensure the correct fit before ordering. Proper measurement is critical to guarantee compatibility with your window system.
