Tru-Lock® Deadbolt / Multipoint lock Solutions Kit
- Regular price
- $253.12
- Regular price
-
- Sale price
- $253.12
- Unit price
- per
Vendor : Amesbury Truth Hardware
Product Type : Hardware
Sku : 3205
Tru-Lock® dead bolt/multipoint lock solutions kit.
Converts standard single dead bolt lock to a multipoint type lock.
Besides adding security, the multipoint lock helps prevent door warpage and creates a tighter seal.

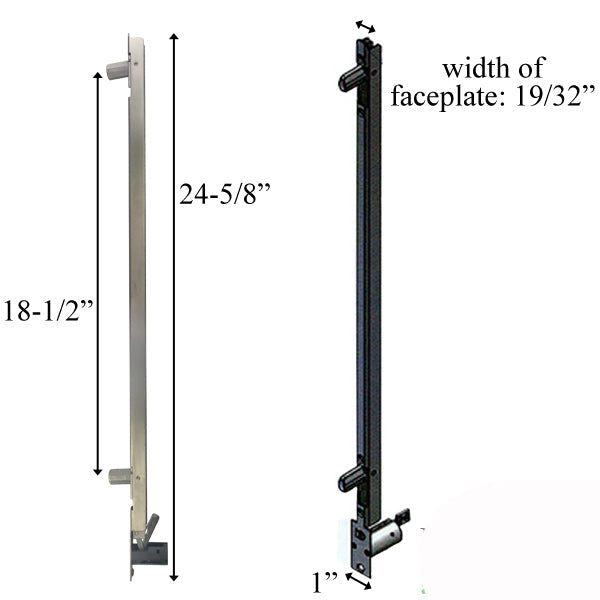

Measurements / Specifications:
Deadbolt Spacing: Approximately 18-1/2 in.es between bolts
Front Face Plate Overall Length: 24-5/8 in.
Width of Face Plate: 19/32 in.
Back Length (portion that goes inside the door cavity): 22-1/8 in.
Length of Bottom Wider Portion Plate: 2-1/4 in.
Width of Bottom Wider Portion Plate: 1 in.
Depth of Lock: 3/4 in.
Strike Plate: 4-3/4 in. x 1-1/8 in.
Round Screw Hole Spacing: 4 in.
Slot Hole Spacing: 3 in.
Easy Install:
1. Remove existing dead bolt lock
2. Route or mortise door edge 5/8 in. wide x 3/4 in. deep
3. Mortise strike plates
4. Install new multipoint lock
Tools Needed: Router w/ guide, 5/8 in. straight router bit, wood chisel, drill
Works with Kwikset®, Schlage®, Weiser®, Dexter®, Weslock® and other dead bolts.
Kit includes strike plates.
Priced and sold as a package.
