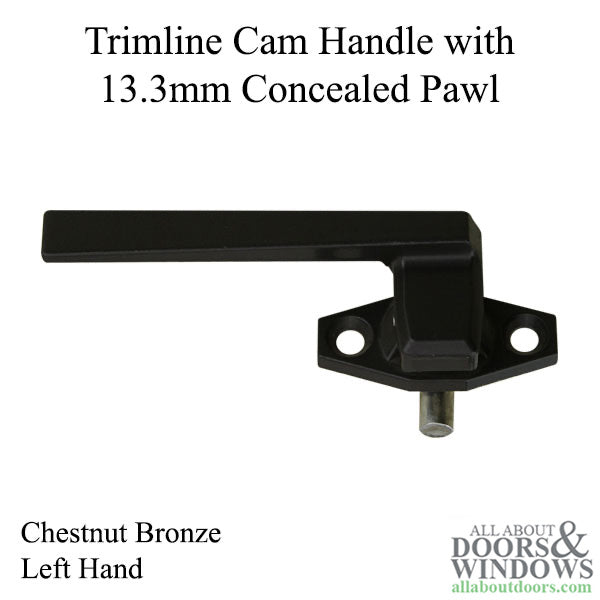

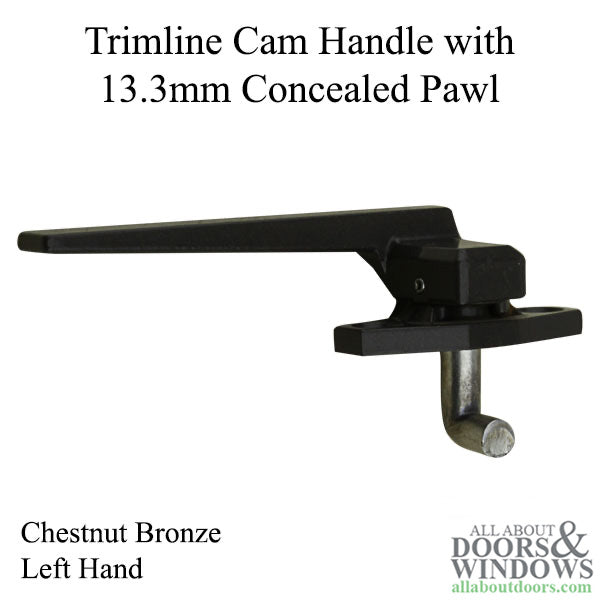

Left Hand Trimline Cam Handle 13.3mm Concealed Pawl Chestnut Bronze

Trimline Cam Handle with 13.3mm Concealed Pawl in Chestnut Bronze – Left Hand

This TrimLine cam handle is designed for in-swinging ventilators such as awning and hopper windows and is built to provide reliable sash locking. The concealed pawl mechanism stays hidden when installed, offering both a clean look and increased tamper resistance. With a simple 90° rotation, this handle securely locks or unlocks the window sash.

The handle is constructed from high-pressure die-cast zinc for both the handle and base, ensuring durability and long service life. The pawl is zinc-plated steel, providing added strength where it’s needed most. The chestnut bronze finish gives a subtle, classic appearance that pairs well with many window frame colors. This part is left-handed—handing should be confirmed based on the direction the handle points from the interior side of an awning window; on hopper windows, the handle will point in the opposite direction.

Technical Information

• Color / Finish: Chestnut bronze
• Material: High-pressure die-cast zinc (handle & base), zinc-plated steel (pawl)

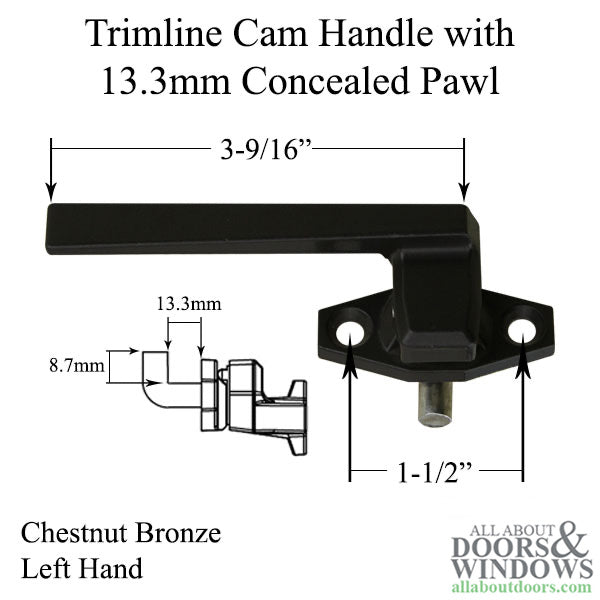

• Handle Length: 3-9/16" (90.5mm)
• Screw Hole Distance: 1-1/2" (38.1mm)
• Pawl Projection: 13.3mm (0.52") from gasket to inside of vertical curve
• Base: Inline
• Handing: Left hand

Notes

• Works with in-swinging ventilators, including both awning and hopper style windows.
• Handing is determined when viewed from inside, on an awning window.
• TrimLine by Amesbury Truth Hardware.

Confirm all measurements and handing against your original hardware to ensure proper fit prior to ordering. Measuring your existing hardware carefully is highly recommended to avoid returns and ensure compatibility.
