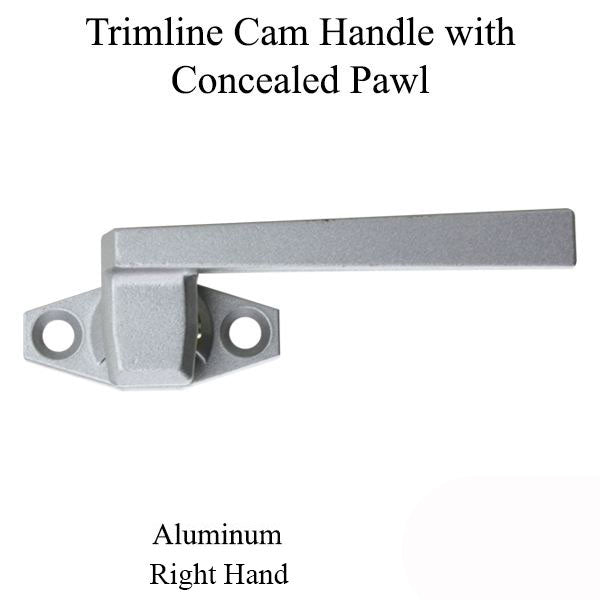

Trimline Cam Handle with 11.1mm Concealed Pawl in Aluminum

Regular price
$16.31
Regular price
Sale price
$16.31

Vendor : Amesbury Truth Hardware

Product Type : Hardware

Sku : 555098

Truth® 27.19.01.103

For use on in-swinging ventilators, this specially designed TrimLine Cam Handle is built with a concealed pawl.
A 90 rotation of the handle locks or unlocks the sash.

Color / Finish : aluminum
Material : High-pressure die-cast zinc handle and base. Zinc-plated steel pawl.
Handle Length : 3-9/16 in.
Screw Hole Distance : 1-1/2 in.

Handle Projection: 1 in. ( low profile)Base: Inline
Handing: Right Hand

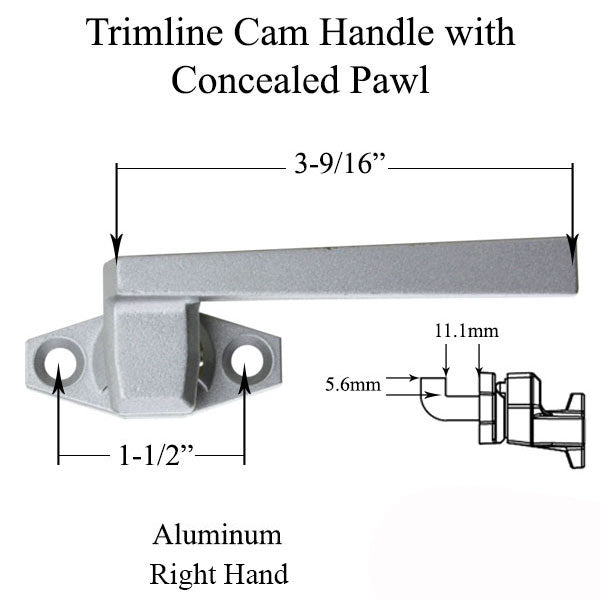

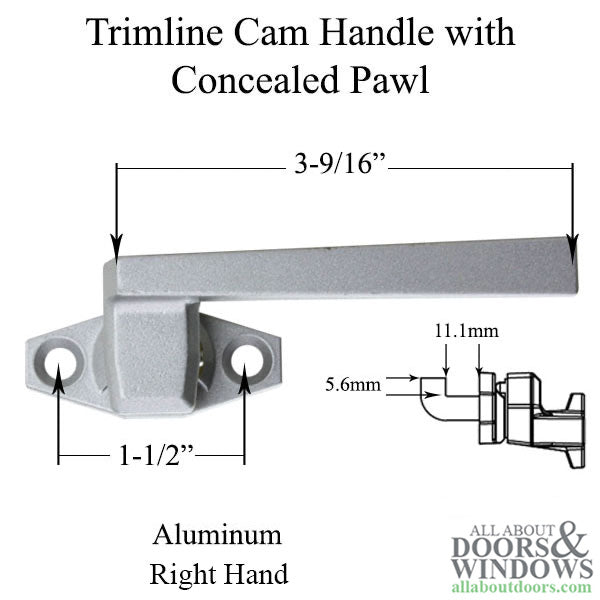

Projection of pawl from gasket to the inside of the vertical curve : 11.1mm (see the 3rd image's line drawing).

Handing is determined by the direction the handle points when viewed from the inside on an awning window. Handle points in opposite direction when used on a hopper top window.
