Large Nose Tilt Latch Pair - Vinyl Window - 503021

Large Nose Tilt Latch Pair for Vinyl, Fiberglass, and Composite Windows

This tilt latch set is designed for single and double hung tilt-in windows built with vinyl, fiberglass, or composite sashes. It is used by Weather Shield on the Visions 3000, on the Pella 250 Series, and on a variety of other window brands.

The latch uses a snug friction fit in the check rail and a slide-in installation, so no special routing is required. A stainless steel spring provides corrosion resistance and smooth, quiet operation over time.

The large nose has a 45-degree angled shape with a 3/16" (4.8mm) offset and a 1/2" (12.7mm) projection, allowing it to positively engage the jamb pocket when the sash is upright.

Technical Information

• Application: Vinyl, fiberglass, and composite single and double hung tilt-in windows.

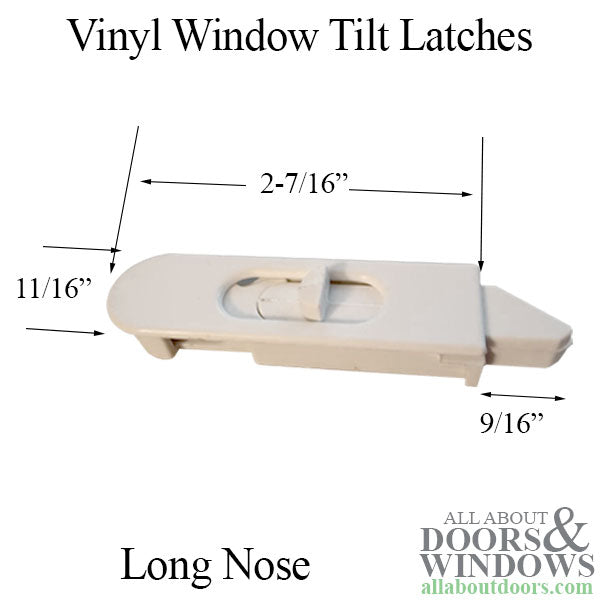

• Top Width: 11/16" (17.5mm).
• Top Length: 2-7/16" (61.9mm).
• Nose Offset: 3/16" (4.8mm).

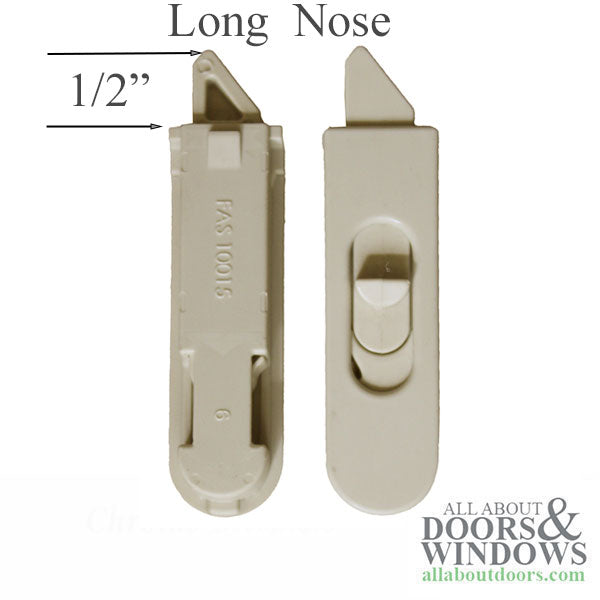

• Nose Projection: 1/2" (12.7mm).
• Nose Shape: 45 degrees.
• Thumb Button: Standard or Low Profile.
• Material: Vinyl / Plastic housing with stainless steel spring.

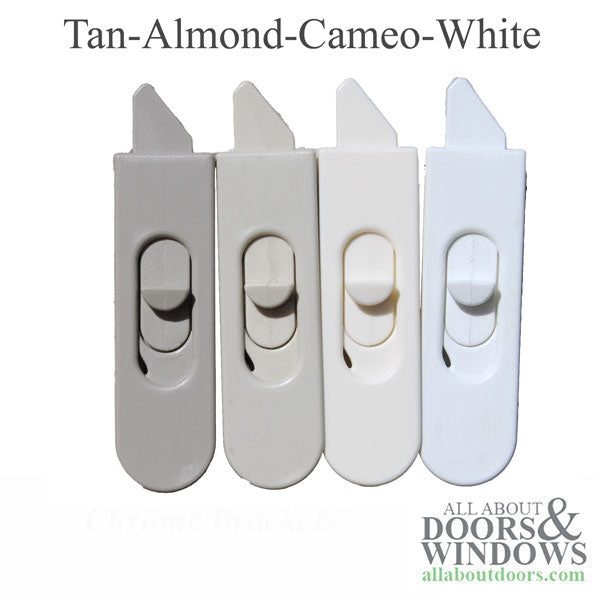

• Available Colors: Cameo, Almond, Desert Tan, White.

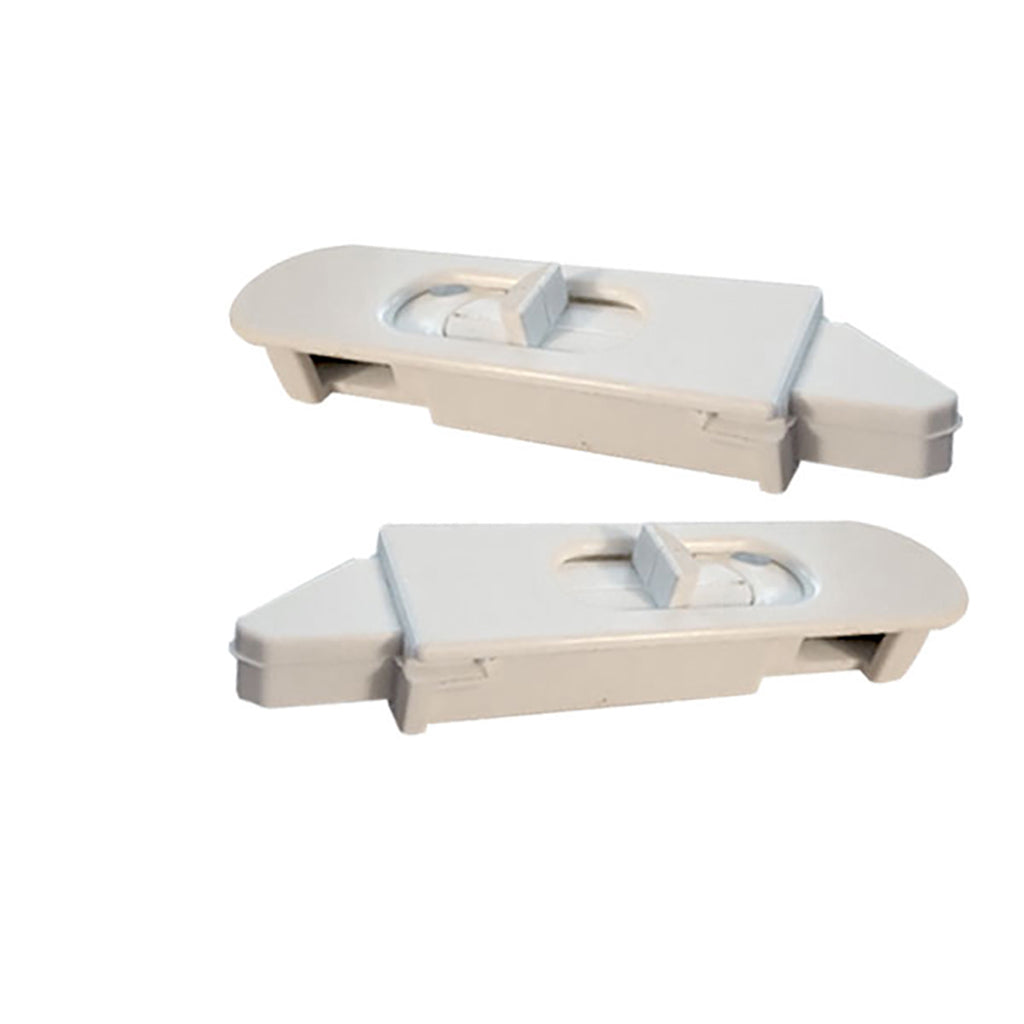

• Sold As: Pair (1 Left, 1 Right).

Notes

• Known to be used by Weather Shield on Visions 3000 windows and by Pella on the 250 Series, among other brands.
• Proven design for vinyl windows that can also adapt to wood windows without route changes.
• Slide-in installation with a friction fit in the check rail.

This item is sold as a pair, with one left-hand and one right-hand latch included. Order one pair per sash. Availability is limited to existing inventory, so confirm color and quantity before ordering. Please measure your existing tilt latches and compare the nose shape, offset, and overall dimensions to the specifications above to ensure the correct fit before ordering.
