Trimline-Style Swivel Sweep Latch 2-1/16" - 500521
- Regular price
- $5.00 - $6.95
- Regular price
- $6.95
- Regular price
-
- Sale price
- $6.95
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type:
Sku: 500521-CLY

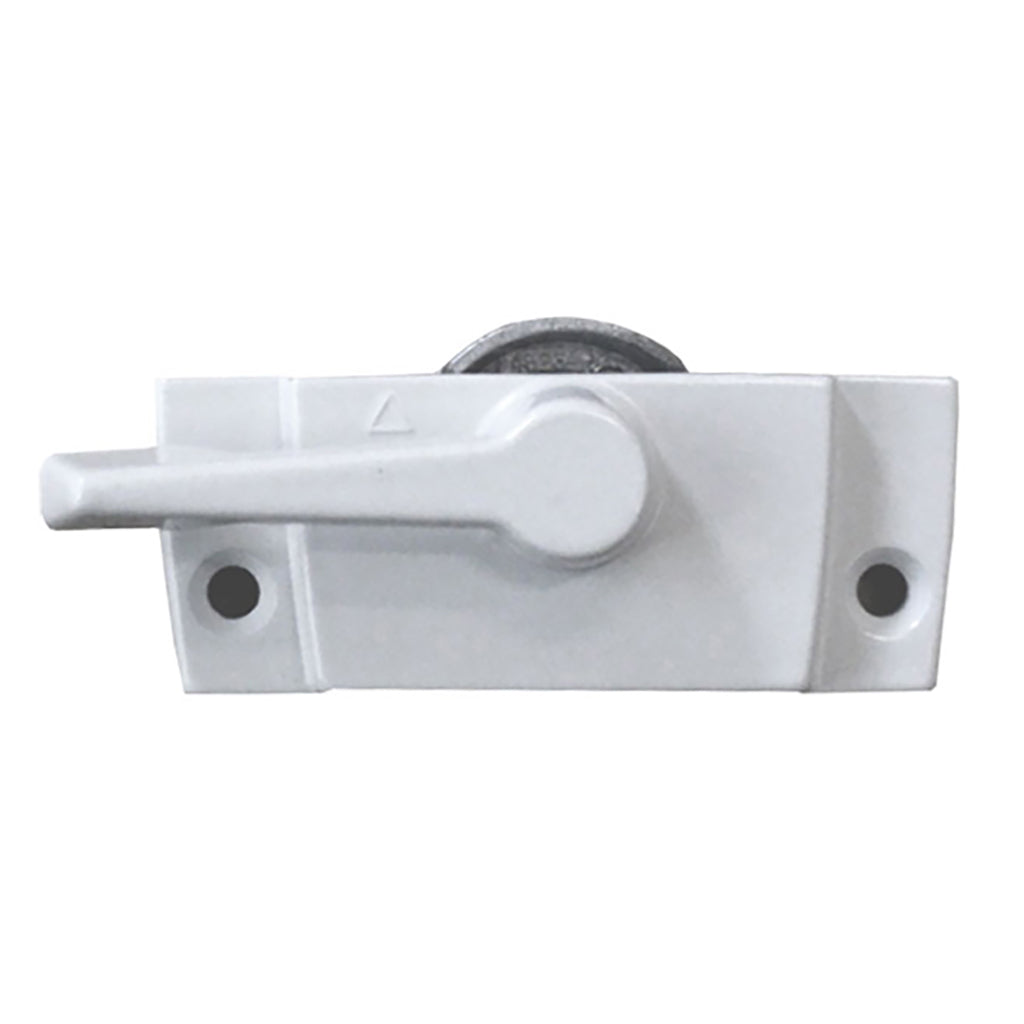

This swivel-type sweep latch (also called a sash lock or cam latch) fits many aluminum, wood, and vinyl windows with 2-1/16" (52.4mm) screw hole spacing. It works like the Truth Trimline sweep lock and is available in White, Clay, and Polished Brass. Sold each; screws and keeper sold separately.
Couldn't load pickup availability
Trimline-Style Swivel Sweep Latch / Sash Lock - 2-1/16" Screw Holes
This is a swivel-type sweep latch, also called a cam latch or sash lock, used on many aluminum, wood, and vinyl windows. It matches the Truth Trimline sweep lock footprint and is a common replacement part for worn or broken original hardware.
The cam swivels as you rotate the handle, pulling the sash tight against the frame for a secure seal. Choose from White, Clay, or Polished Brass to match your existing hardware.

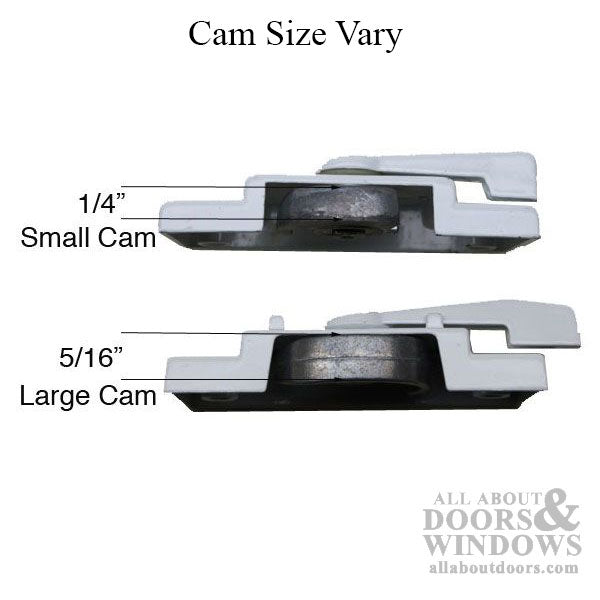

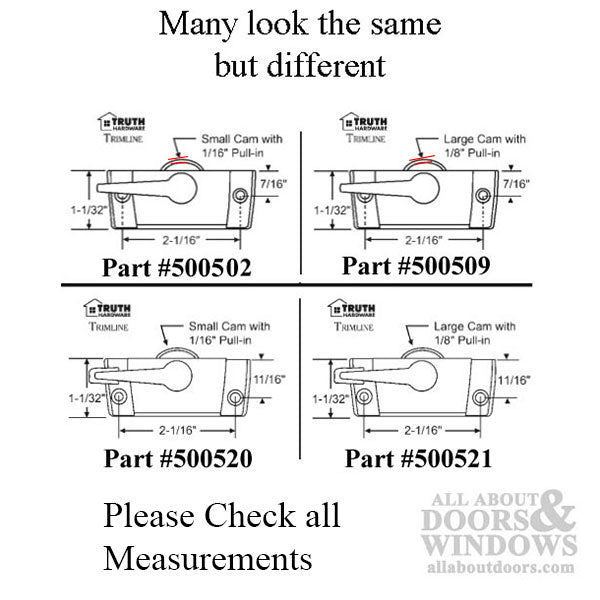

Many sweep latches look alike but vary slightly in screw spacing, cam height, and body depth. Please compare all measurements to your existing part before ordering.

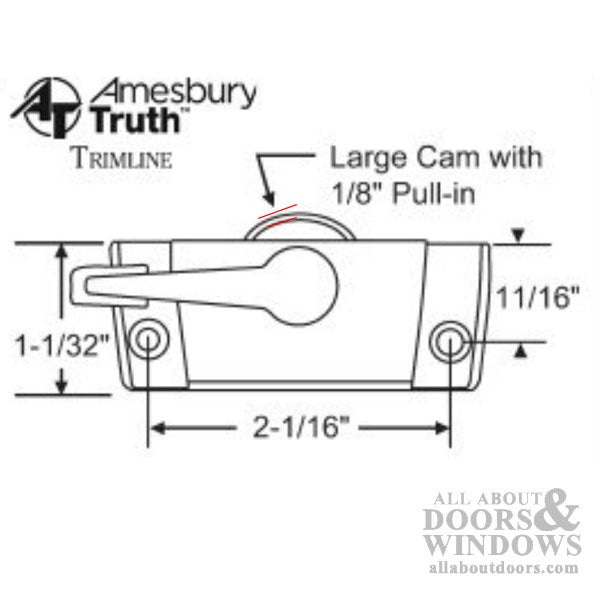

Technical Information
- Type: Swivel-type sweep latch / sash lock / cam latch
- Screw Hole Spacing: 2-1/16" (52.4mm)
- Screw Hole Distance from Front Edge: 11/16" (17.5mm)
- Latch Body Depth: 1" (25.4mm)
- Latch Body Length (Front): 2-13/16" (71.4mm)
- Latch Body Length (Back): 2-5/8" (66.7mm)
- Cam Height: 0.391" (9.9mm)
- Swivel Cam Thickness: 5/16" (7.9mm)

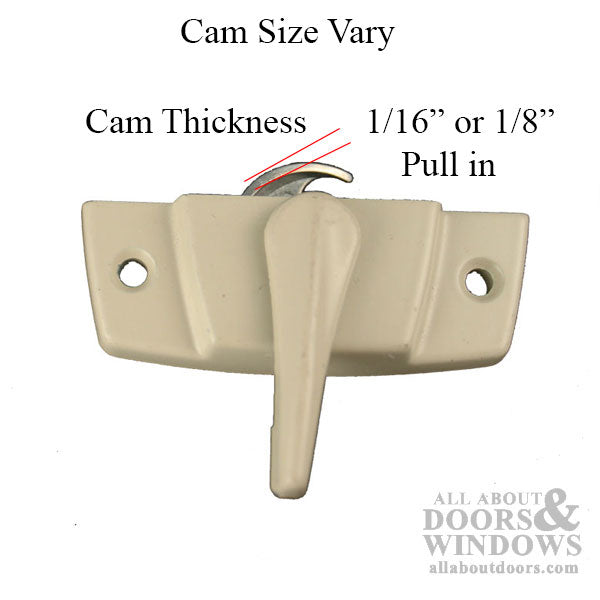

- Swivel Cam Pull-In: 1/8" (3.0mm)

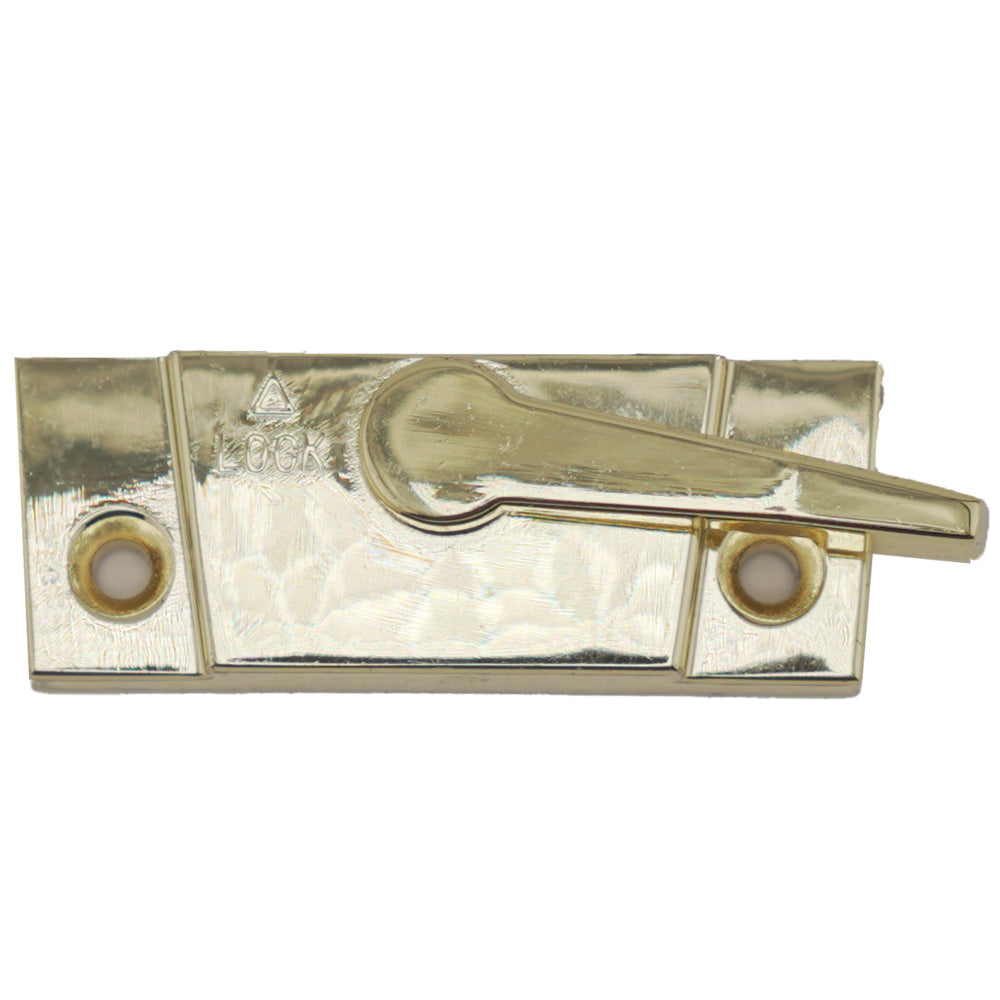

- Available Colors: White, Clay, Polished Brass
- Used On: Aluminum, wood, and vinyl windows
Notes
- Similar in style to the Truth Trimline sweep lock.
- Screws are sold separately.
- Keeper is sold separately.
- Many sweep latches look alike - please verify measurements before ordering.
Replaces / Cross Reference
- Strybuc Industries: 50-387-6
- Strybuc Industries: 50-387-3
Priced and sold each. If you are replacing latches on both sides of a window or on multiple windows, order the quantity you need. Check our Related Items for matching keepers and screws. Please measure your existing hardware carefully and compare all dimensions above to ensure the correct fit before ordering.
