Square Shootbolt Tip 2" 1/4-20 Thread for Concealed MPL
- Regular price
- $5.29
- Regular price
-
- Sale price
- $5.29
- Unit price
- per
Vendor: Amesbury Truth Hardware
Product Type: Hardware
Sku: W1041-30S1
Replacement shootbolt tip with a square shape and 1/4-20 UNC thread, designed for concealed multi-point locks. Measures 2" (50.8mm) overall length, with a 1" (25.4mm) tip length and 3/8" (9.5mm) diameter. Suitable for replacing lost, broken, or damaged tips; also available in 3" (76.2mm) hex version.
Couldn't load pickup availability

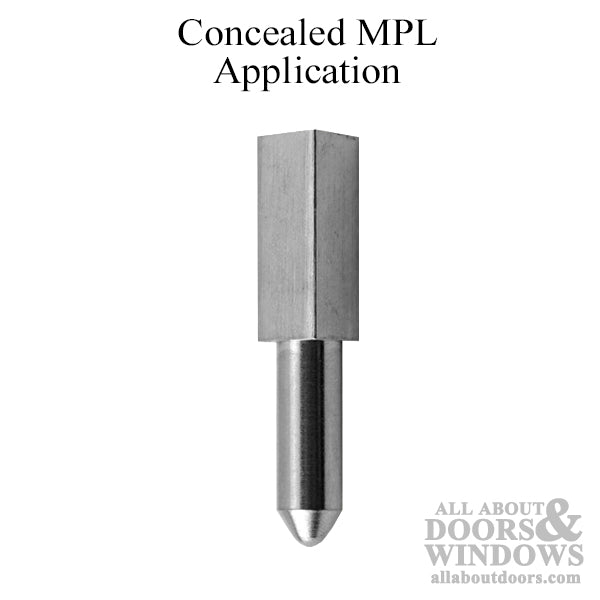

Replacement Shootbolt Tip, Square Shape, 1/4-20 Thread
This replacement shootbolt tip is designed for concealed MPL (multi-point locking) systems, serving as a direct replacement for lost, broken, or damaged shootbolt tips. The part features a square shape and is manufactured to fit hardware where a 1/4-20 UNC (Unified National Coarse) thread is required.
The shootbolt tip is constructed to deliver a reliable solution for restoring function to your window or door locking mechanism. Compatible with systems that use threaded tips, it allows for continued smooth operation and security. The overall length is 2" (50.8 mm), and the bolt tip itself is 1" (25.4 mm) long, with a 3/8" (9.5 mm) diameter. For added flexibility, alternative versions are available in 2" (50.8 mm) square or 3" (76.2 mm) hex designs.
Technical Information
- Overall Length: 2" (50.8 mm)
- Bolt Tip Length: 1" (25.4 mm)
- Diameter: 3/8" (9.5 mm)
- Thread Size: 1/4-20 UNC
Notes
- Available in both square and hex styles to match original hardware design.
This item is typically sold individually. Please carefully measure your existing hardware to ensure correct fit before ordering. Always verify all dimensions and specifications on your current part to avoid compatibility issues.
