Right Hand Rear Mount Dyad Casement Operator, 5-9/16" Arm with Stability Tab

Rear Mount Dyad Casement Operator with Stability Tab, Right Hand, 5-9/16" Arm

This Rear Mount Dyad Casement Operator is designed to fit many new construction and vinyl replacement windows, including those by Alcoa® and Jordan®. Featuring a stability tab mounted on the bottom, this hardware ensures smoother and more secure window operation. The operator is intended for right-handed windows and mounts at the rear, so the face of your window stays clean, with screws installed from the back.

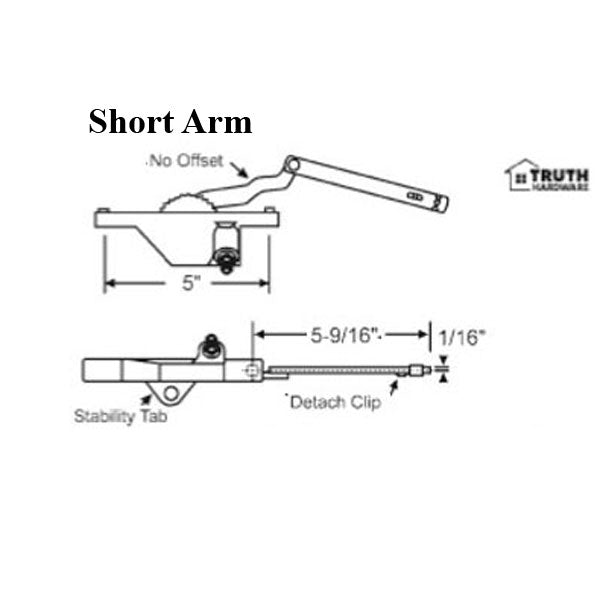

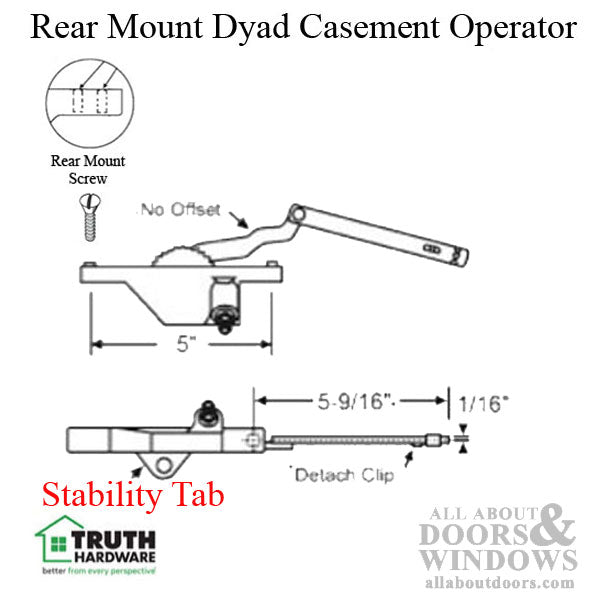

The operator uses a Truth® Dyad-style mechanism, recognizable for its dual arms and reliable operation. An E-Gard® finish on the arm delivers enhanced corrosion resistance for longer life in a variety of environments. The arm link is straight (no offset), with a 5" (127mm) link length and an overall 5-9/16" (141.3mm) arm-to-mounting hole distance, which matches original hardware on many window models. The detach clip is positioned on the bottom for easy removal and installation.

This operator is manufactured from a mix of durable materials. Color options available: Beige and White, to coordinate with most window frames.

Technical Information

• Operator Type: Casement, Truth Dyad
• Handing: Right Hand

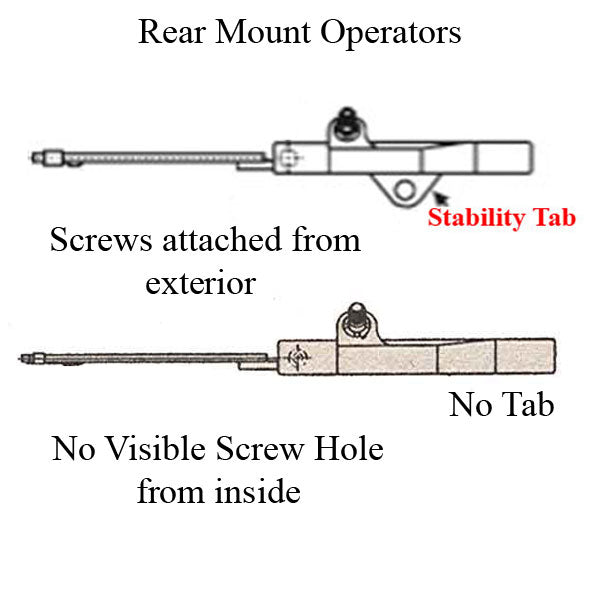

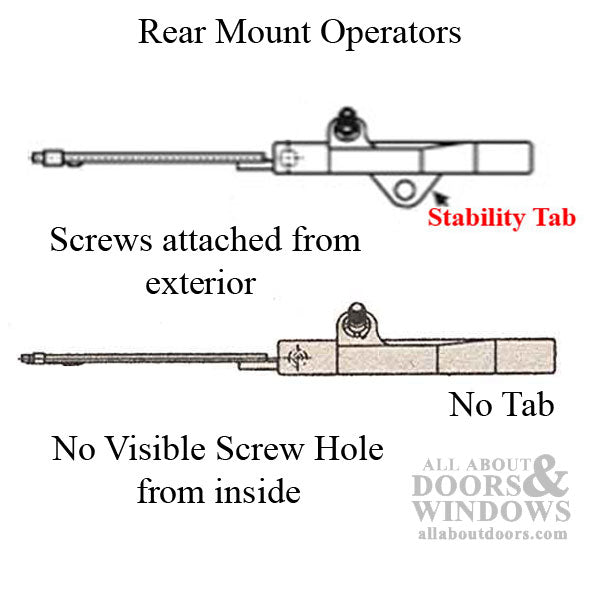

• Mounting: Rear mount (no face holes, screws from rear)

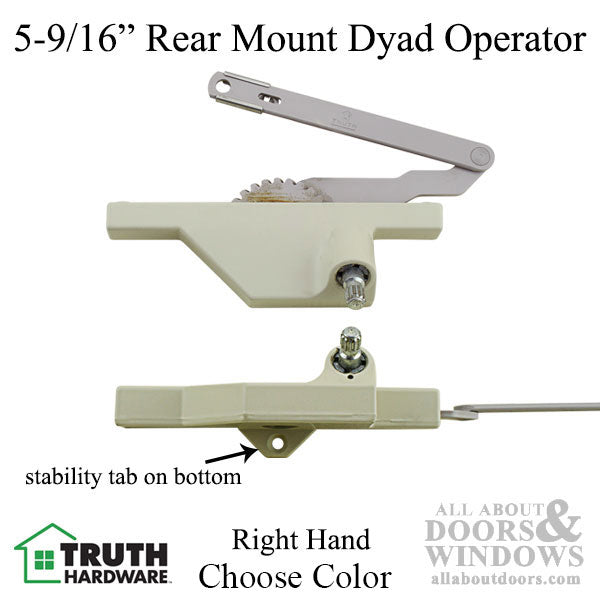

• Stability Tab: Yes, on bottom
• Arm Link: No offset
• Link Length: 5" (127mm)
• Arm to Mounting Hole: 5-9/16" (141.3mm)
• Material: Mixed Materials
• Arm Material: E-Gard®, Corrosion Resistant
• Color Options: Beige, White
• Fits Windows By: Alcoa®, Jordan® (and others)

Notes

• Detach clip is mounted on the bottom.
• This listing is for a right hand operator. Double-check hand orientation before purchasing.
• Also available in left hand—search for the left hand version if needed.

Sold individually. Mounting screws are typically not included. Carefully measure your existing operator, arm length, and mounting configuration to ensure proper fit before ordering. Accurate measurement is essential to avoid returns and ensure compatibility.
