PGT Sliding Patio Door Handle Kit with Truth 32439 Mortise Lock - 14383-Kit

PGT Sliding Patio Door Handle Kit with Mortise Lock and Keepers

This complete kit is designed to replace the handle set on PGT sliding patio glass doors. It gives you everything needed to restore smooth operation and reliable locking in one package.

The kit includes interior and exterior pull handles, a thumb latch, and a lock actuator. It also comes with a Truth 32439 mortise lock featuring a 45-degree hook and recessed housing, plus two keepers for the door frame.

Some of the handles may show minor paint blemishes from the factory. These are cosmetic only and do not affect function.

Technical Information

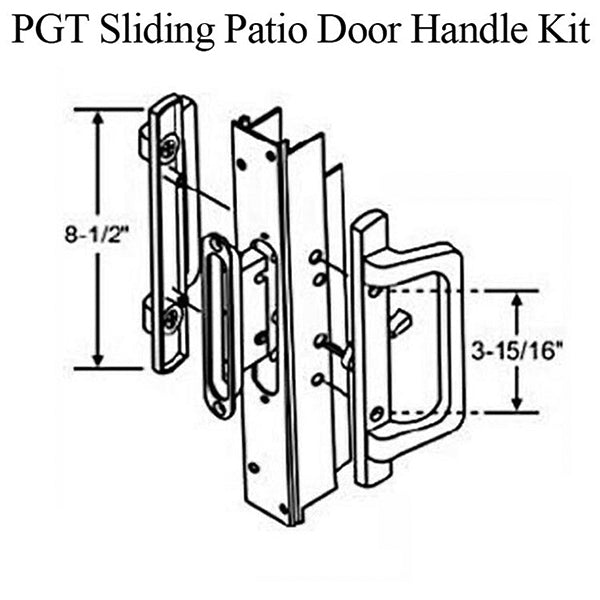

• Plate Width: 1" (25.4mm)
• Plate Length: 8-1/2" (215.9mm)
• Handle Projection: 1-3/4" (44.5mm)
• Installation Screw Hole Spacing: 3-15/16" (100.0mm)
• Handle Screw Length: 1-3/4" (44.5mm)
• Mortise Lock: Truth 32439, 45-degree hook with recessed housing
• Keeper #1: 1/2" (12.7mm) wide, 7/16" (11.1mm) depth, 4-1/8" (104.8mm) face length
• Keeper #2: 9/16" (14.3mm) wide, 3/4" (19.1mm) depth, 4-1/8" (104.8mm) face length
• Color Options: White or Bronze

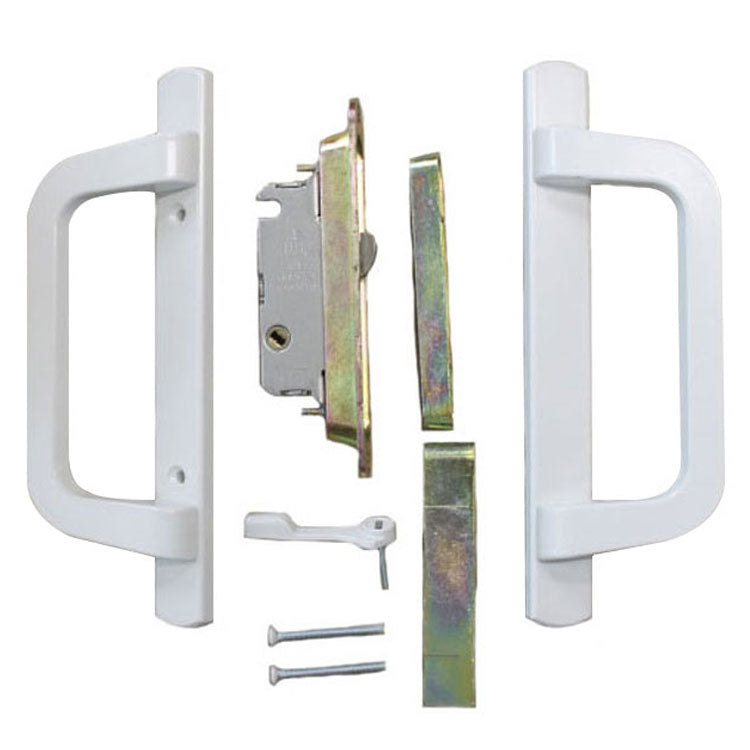

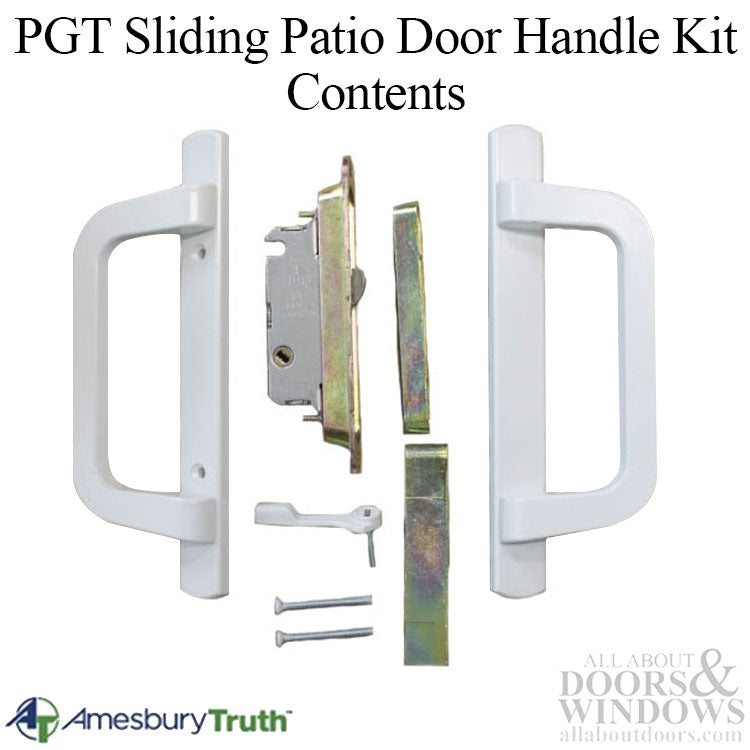

Kit Includes

• Interior and exterior pull handles
• Thumb latch
• Lock actuator
• Truth 32439 mortise lock (45-degree hook with recessed housing)
• Two keepers (sizes listed above)
• Mounting screws

Notes

• Some handles may have minor paint blemishes from the factory.
• Choose color at time of order based on available inventory.

This kit is sold as a complete set. Inventory is limited to existing stock, so availability of color options may vary. Please measure your existing hardware, screw hole spacing, and mortise lock pocket to ensure correct fit before ordering.
