Operator, Split Arm, 4.5 Straight Link no/ Clip, Old Style Housing, Right Hand (RH) - Choose Color
- Regular price
- $37.50
- Regular price
-
- Sale price
- $37.50
- Unit price
- per
Vendor : Amesbury Truth Hardware
Product Type : Hardware
Sku : 55213-GLD

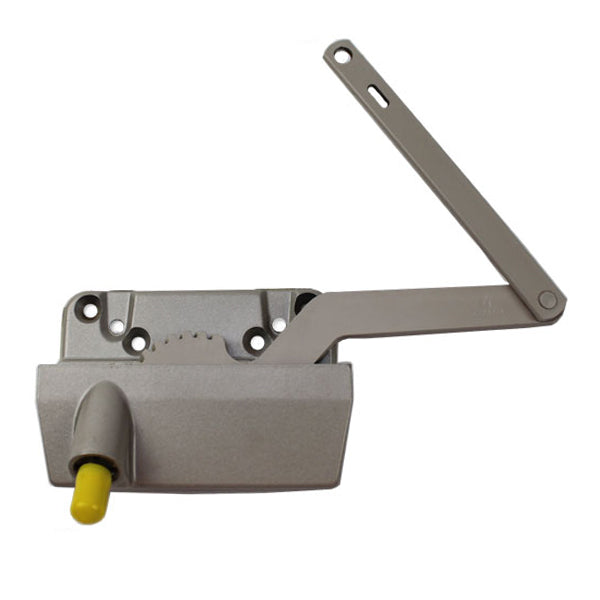

Truth® Traditional Dyad Split Arm Casement Operator, Sill Mount for wood or vinyl windows.
Operator Handing: Right - Windows Viewed from Outside, Hinge side
Main Body: Truth # 45135
Arm link: Straight, Truth # 31850
Link Length: 5 inch
Link Holes: 4.5 inch (measured from center of rivet to Stud hole center)
Link Mount: Mounted on Top of main arm
Detach clip: NO
Note 1: There are 4 configurations for this Truth Window crank operator
1. Straight link mounted on top, No Clip
2. Offset link, mounted on bottom -15/64 inch Offset, No Clip
3. Offset link, mounted on bottom - 7/16 inch Offset, No Clip
4. Offset link, mounted on bottom - 49/64 inch Offset, Detach Clip

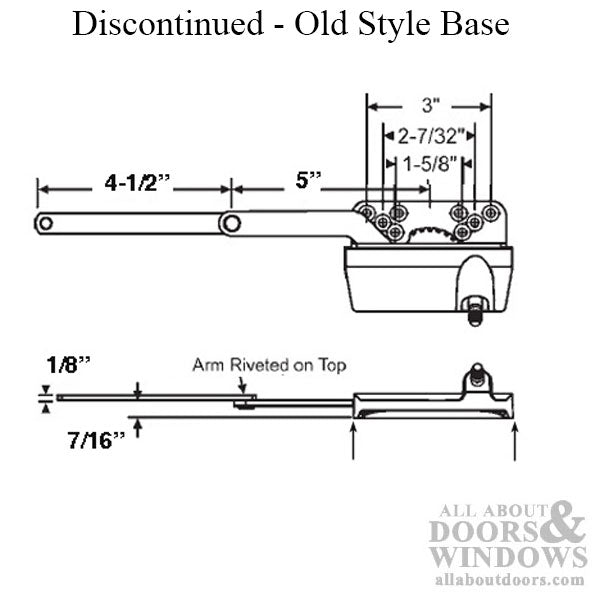

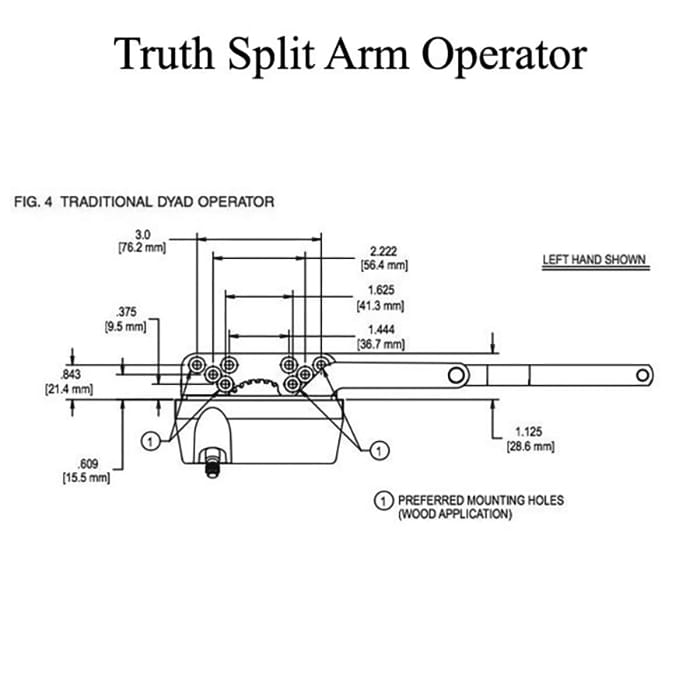

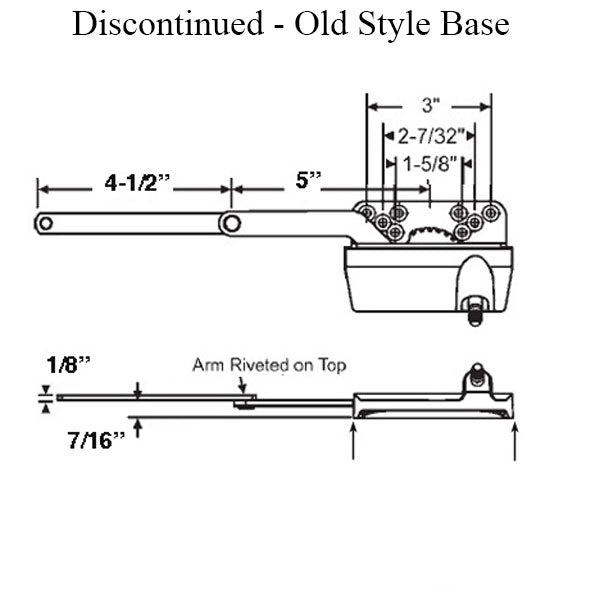

NOTE 2: See additional Pictures for line drawings
Colors: White, Silver, and Gold
Priced and sold each.
Operator Handing: Right - Windows Viewed from Outside, Hinge side
Main Body: Truth # 45135
Arm link: Straight, Truth # 31850
Link Length: 5 inch
Link Holes: 4.5 inch (measured from center of rivet to Stud hole center)
Link Mount: Mounted on Top of main arm
Detach clip: NO
Note 1: There are 4 configurations for this Truth Window crank operator
1. Straight link mounted on top, No Clip
2. Offset link, mounted on bottom -15/64 inch Offset, No Clip
3. Offset link, mounted on bottom - 7/16 inch Offset, No Clip
4. Offset link, mounted on bottom - 49/64 inch Offset, Detach Clip
NOTE 2: See additional Pictures for line drawings
Colors: White, Silver, and Gold
Priced and sold each.
