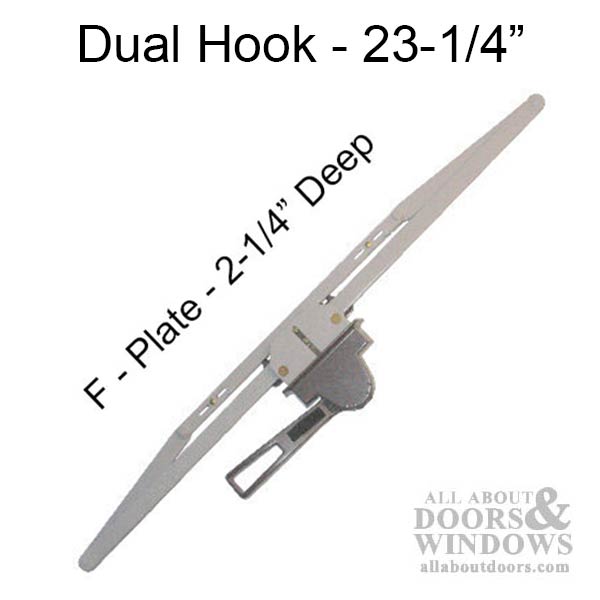

Dual Hook Lever Operator 23-1/4" Arm – Extended F Plate for Wood Awning Windows

Dual Hook Lever Operator, 23-1/4" Arm - Extended "F" Plate for Wood Awning Windows

This dual hook lever operator is designed for wood awning windows, featuring a robust 23-1/4" (591 mm) arm width for effective operation of larger or heavier sashes. The operator includes a longer "F" style escutcheon plate measuring 2-1/4" (57.2 mm) deep, making it a suitable choice for applications that require this specific plate profile.

The housing measures just over 2" (2-7/32", or 56.4 mm) from the interior edge to the wood stop. Two attachment points on the arm classify this as a dual pull operator, ensuring stable and smooth movement when opening or closing your window. Awning operators like this are not handed, meaning they work on either side and are interchangeable between left and right installations.

This operator is a common replacement part for awning windows originally fitted with "lever type" operators from Truth® Hardware, and is compatible with a range of wood window manufacturers, including Marvin® and Weather Shield®.

Technical Information

• Arm Width (Tip to Tip): 23-1/4" (591 mm)
• Base Plate: 4" x 4" (102 mm x 102 mm) approx.
• Housing Depth (from interior edge to wood stop): 2-7/32" (56.4 mm) approx.
• Plate Style: "F" Plate, 2-1/4" (57.2 mm) deep
• Handing: Non-handed (fits both left and right installations)
• Material: Zinc

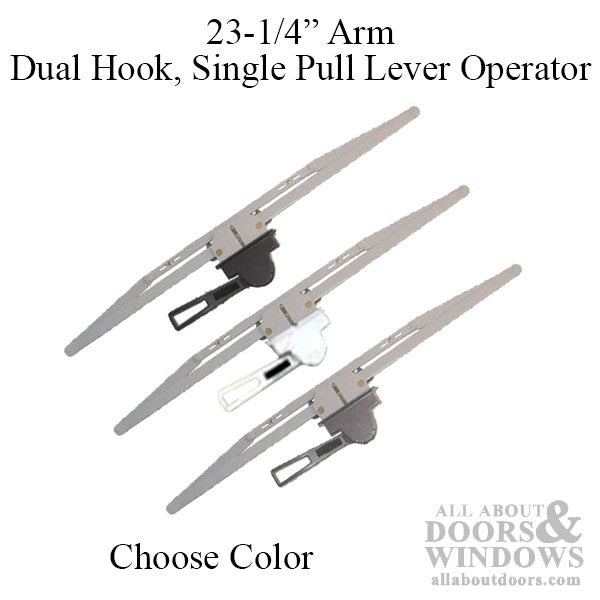

• Finish Options: Bronze or White

Notes

• Compatible with many Marvin®, Weather Shield®, and other wood window brands.
• Replaces "lever type" awning window operators by Truth® Hardware.
• Uses four matching Truth screws per operator (not included).
• Commonly called a dual pull operator due to its two arm attachment points.

This product is sold individually. Be sure to verify all measurements and compare your existing hardware with the dimensions above to ensure a proper fit before ordering. Always double-check your existing operator’s measurements for best compatibility.
