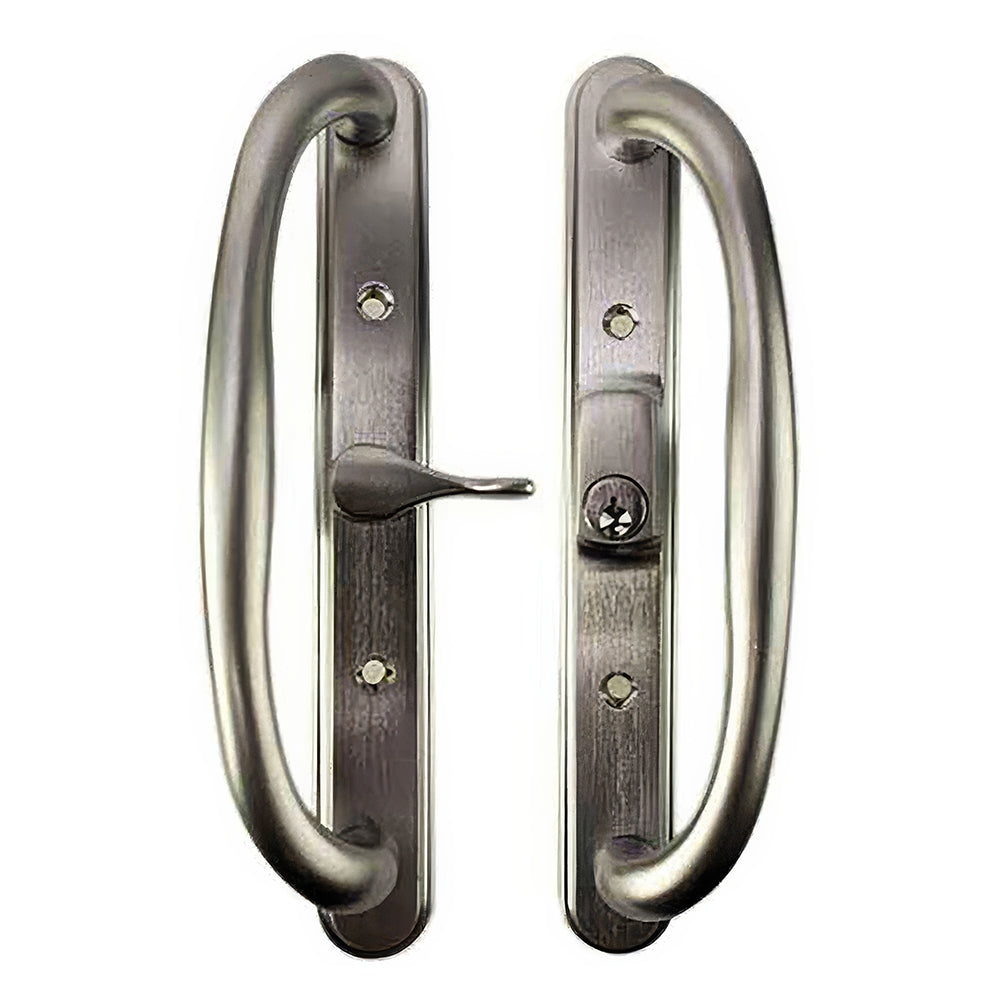

Olympus Keyed Handle, Center Thumb Turn for Sliding Glass Door

Olympus Keyed Handle with Center Thumb Turn for Sliding Glass Doors

This Olympus keyed handle set is designed for sliding patio doors and features a centered thumb turn on the plate for easy access and operation. The all-zinc diecast construction ensures durability and strength, making it suitable for residential and commercial sliding glass doors made of wood, vinyl, fiberglass, or aluminum.

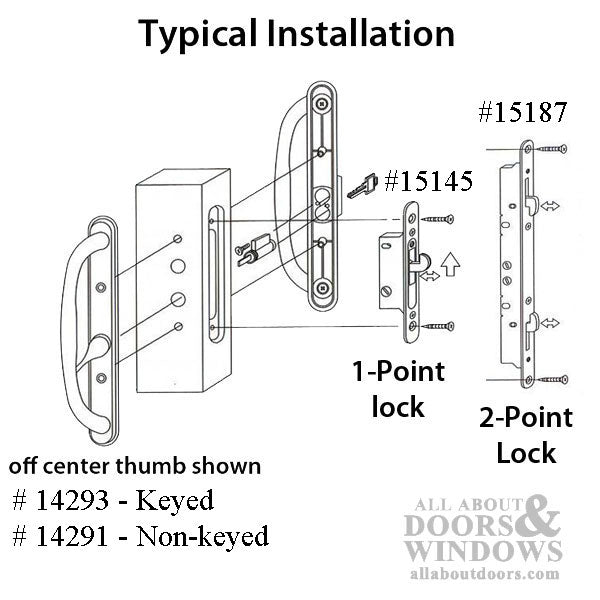

The handle set has a 3-15/16" screw hole spacing (100.0mm), compatible with doors fabricated with a standard 3-hole pattern and a thickness of 1-3/4" (44.5mm). Optional screws are available to accommodate stile thicknesses from 1-1/4" to 2-1/4" (31.8mm to 57.2mm), adding flexibility during installation. It is non-handed, meaning it fits both left- and right-handed doors, and supports installation on single, double, or multi-point lock doors. The latch is hook style, and the handle is made for use with an internal mortise lock (note: mortise lock itself is not included).

Functionality includes an active keyed lock compatible with the Weiser keyway and comes with two keys. Finishes offered are satin chrome, white, and faux bronze, with other finishes available by special order (lead time: 2-3 weeks). The escutcheon plate measures 10" (254.0mm) high by 1-5/16" (33.3mm) wide. All parts required for installation are included: inside and outside plates and handles, keyed cylinder, two keys, and mounting screws.

Technical Information

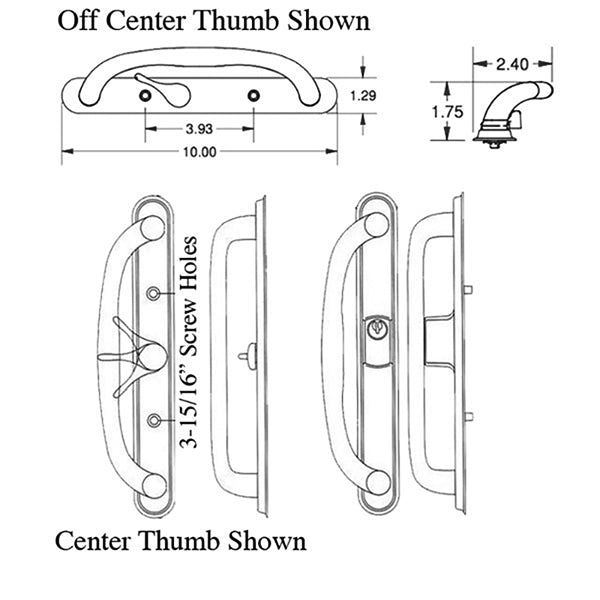

• Screw Hole Spacing: 3-15/16" (100.0mm)
• Plate Size: 10" (254.0mm) H x 1-5/16" (33.3mm) W
• Door Thickness: Standard 1-3/4" (44.5mm), fits 1-1/4" to 2-1/4" (31.8mm to 57.2mm) with optional screws
• Material: Zinc Diecast
• Lock Type: Active KEYED (Weiser keyway)
• Handing: Non-Handed

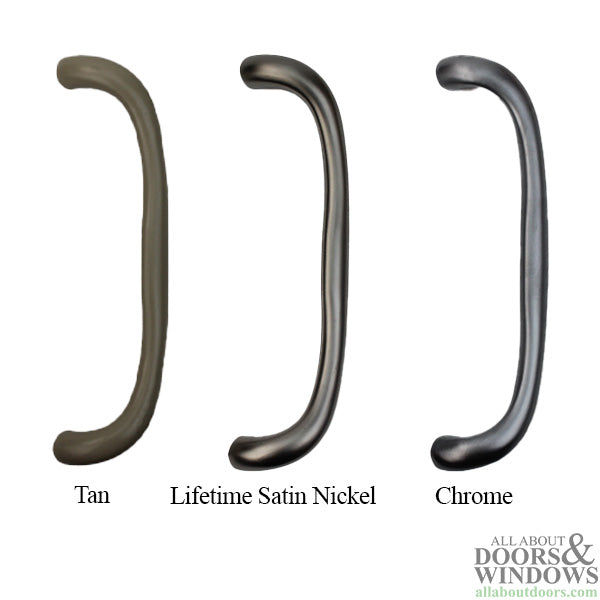

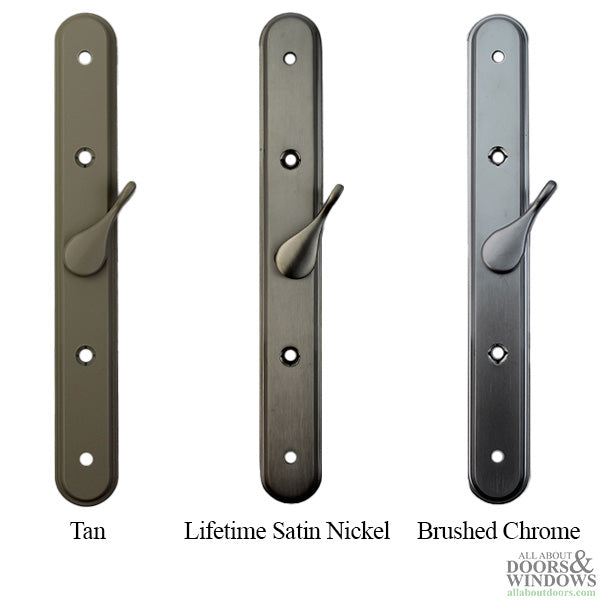

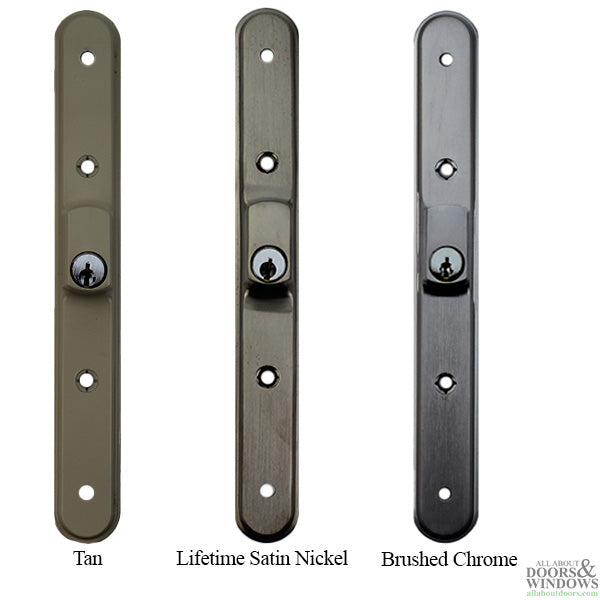

• Finish Options: Satin Chrome, White, Faux Bronze (other finishes by special order)

Notes

• Contents: 1 inside plate, 1 inside handle, 1 outside plate, 1 outside handle, keyed cylinder, 2 keys, installation screws

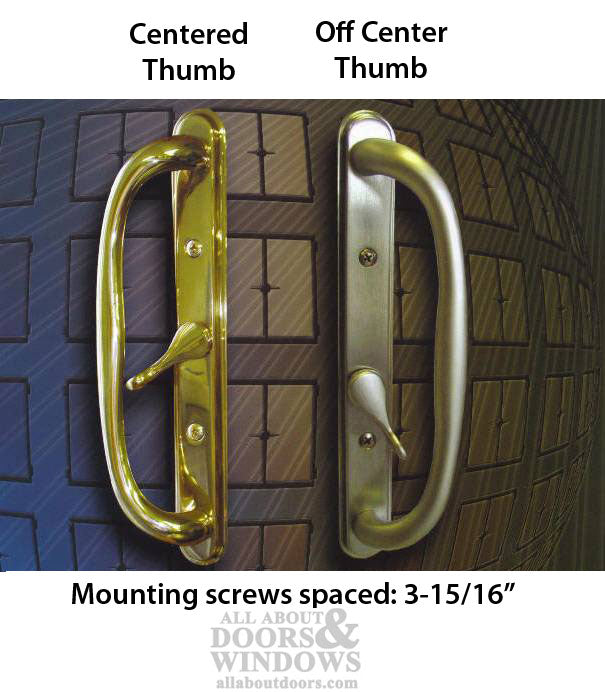

• Thumb turn is centered on the plate
• Escutcheon plate screw hole is 3-15/16" (100.0mm) centered
• Suitable for wood, vinyl, fiberglass, or aluminum doors
• Does not include mortise lock (required for operation)
• Ships in clear blister packaging; minor cosmetic rub marks or scratches from shipping are possible and do not affect functionality

Make sure to measure your existing handle installation and door thickness carefully before ordering to ensure proper fit.
