Olympus Center Thumb Keyed Sliding Glass Door Handle, Schlage Keyway

Olympus Keyed Center Thumb Sliding Glass Door Handle Set – Schlage Keyway

This Olympus sliding patio door handle set features a centered thumb turn and an active keyed function with the Schlage keyway, making it ideal for residential or light commercial sliding glass doors. Designed for versatility, it fits left- or right-handed doors with its non-handed construction. Compatible with wood, vinyl, fiberglass, or aluminum sliding doors using a standard 3-hole pattern and measuring 1-3/4" thick (44.5mm). Optional screws are available for door stiles ranging from 1-1/4" to 2-1/4" (31.8mm to 57.2mm) thick.

The handle set is made from robust zinc diecast for durability. The escutcheon plate is 10" (254mm) in height and 1-5/16" (33.3mm) in width, with screw holes spaced 3-15/16" (100.0mm) center-to-center. The design accommodates single, double, or multi-point locking mechanisms and fits a hook style internal mortise lock (not included). Finish options include brushed chrome, black lifetime, satin nickel, tan, and white, providing a range of choices to match your door's appearance.

This set includes the inside and outside plates and handles, a keyed cylinder, two keys, and installation screws. Please note that one- and two-point mortise locks are not included. Minor rub marks or surface scratches may occur during shipping due to clear blister packaging; these are not considered defects and do not affect performance.

Technical Information

• Manufacturer: Amesbury Truth Hardware
• Keyway: Schlage (convertible to Weiser with purchase of part 15033)
• Material: Zinc Diecast
• Escutcheon Plate Height: 10" (254mm)
• Escutcheon Plate Width: 1-5/16" (33.3mm)

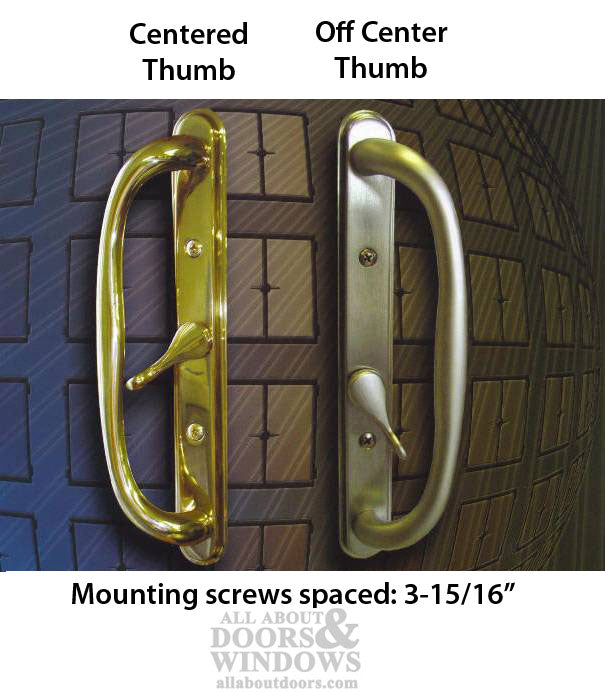

• Screw Hole Spacing: 3-15/16" (100.0mm) center-to-center
• Door Thickness Compatibility: Standard 1-3/4" (44.5mm); optional 1-1/4" to 2-1/4" (31.8mm to 57.2mm)
• Handing: Non-Handed (fits left or right doors)
• Latch Style: Hook Style
• Handle Type: Internal Mortise Lock Style
• Included: Inside Plate, Inside Handle, Outside Plate, Outside Handle, Keyed Cylinder, 2 Keys, Installation Screws

Notes

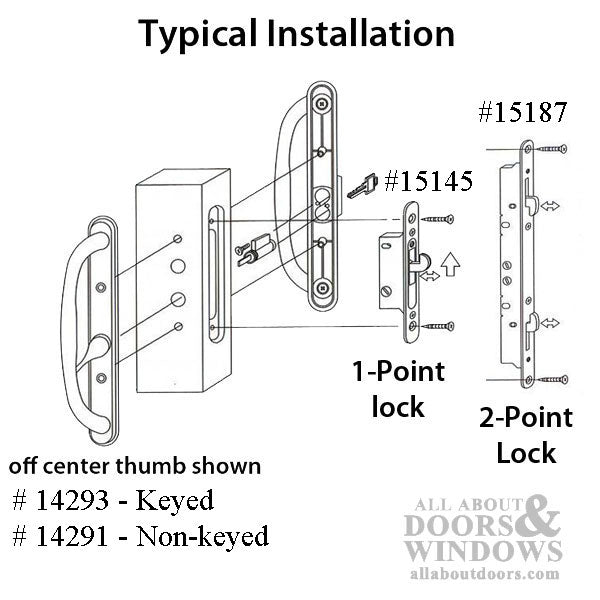

• Compatible with single, double, or multi-point locks using a 3-hole pattern
• Lock cylinder uses Schlage keyway—can be converted to Weiser keyway with additional part

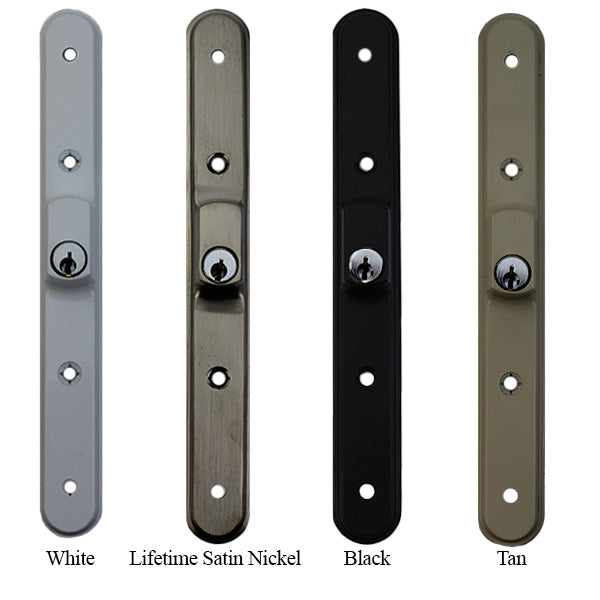

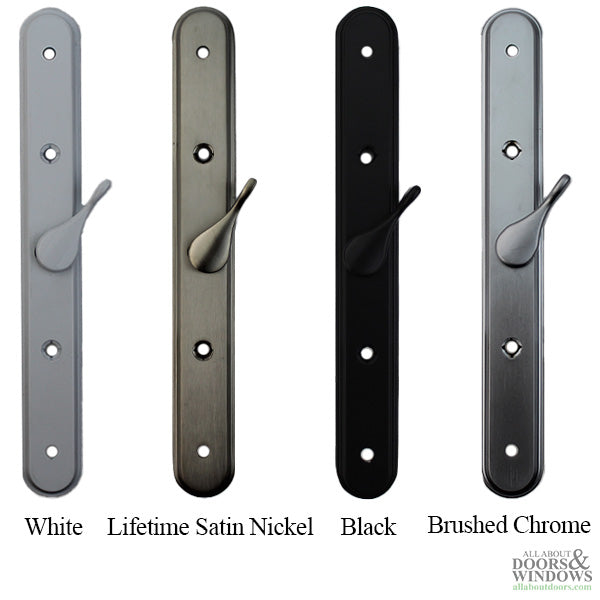

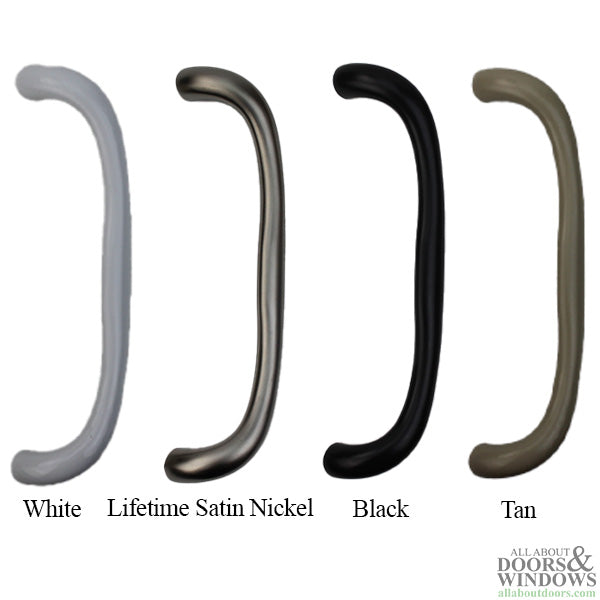

• Available finishes: brushed chrome, black lifetime, satin nickel, tan, white
• Related handle sets available for different keyways and thumb turn positions
• Minor surface marks from blister packaging or shipping are not defects

Each handle set is sold complete and includes two keys. Please verify the screw hole spacing, door thickness, and keyway before ordering to ensure correct fit and compatibility. Please measure your existing hardware carefully to ensure proper fit before purchasing.
